Factory Tire Size:
Indicates Fits Your Vehicle Indicates Fits Your Rear Tire Size
Sizes & Specs
WHEEL DIAMETER
| Tire Size |
Stock Number |
Tread Depth(1/32 in) |
Overall Dia (in)Inflated Dimensions | Overall Width (in)Inflated Dimensions | Approved Rim Width RangeMin-(Measuring)-Max (in) |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| 205/50R15 89V XL | 185290 | 9.7 | 23.07 | 8.39 | 5.5-(6.5)-7.5 | 1279 @ 50 | 20.20 |
| Tire Size |
Stock Number |
Tread Depth(1/32 in) |
Overall Dia (in)Inflated Dimensions | Overall Width (in)Inflated Dimensions | Approved Rim Width RangeMin-(Measuring)-Max (in) |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| 205/40R16 83V XL | 185000 | 9.7 | 22.48 | 8.58 | 7.0-(7.5)-8.0 | 1074 @ 50 | 18.29 |
| 205/45R16 87V XL | 185010 | 9.7 | 23.35 | 8.31 | 6.5-(7.0)-7.5 | 1201 @ 50 | 19.78 |
| 205/50R16 91V XL | 185020 | 9.7 | 24.02 | 8.43 | 5.5-(6.5)-7.5 | 1356 @ 50 | 22.18 |
| Tire Size |
Stock Number |
Tread Depth(1/32 in) |
Overall Dia (in)Inflated Dimensions | Overall Width (in)Inflated Dimensions | Approved Rim Width RangeMin-(Measuring)-Max (in) |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| 205/40ZR17 84W XL | 185030 | 9.7 | 23.54 | 8.58 | 7.0-(7.5)-8.0 | 1102 @ 50 | 19.65 |
| 205/45ZR17 88W XL | 185350 | 9.7 | 24.33 | 8.23 | 6.5-(7.0)-7.5 | 1235 @ 50 | 21.33 |
| 215/40ZR17 87W XL | 185050 | 9.8 | 23.90 | 8.86 | 7.0-(7.5)-8.5 | 1201 @ 50 | 20.85 |
| 215/45ZR17 91W XL | 185060 | 9.8 | 24.76 | 8.43 | 7.0-(7.0)-8.0 | 1356 @ 50 | 22.43 |
| 225/45ZR17 94W XL | 185070 | 10.0 | 25.08 | 8.90 | 7.0-(7.5)-8.5 | 1477 @ 50 | 24.21 |
| 225/50ZR17 98W XL | 185260 | 10.0 | 25.91 | 9.06 | 6.0-(7.0)-8.0 | 1653 @ 50 | 25.10 |
| 235/50ZR17 100W XL | 185270 | 10.1 | 26.22 | 9.53 | 6.5-(7.5)-8.5 | 1764 @ 50 | 27.21 |
| Tire Size |
Stock Number |
Tread Depth(1/32 in) |
Overall Dia (in)Inflated Dimensions | Overall Width (in)Inflated Dimensions | Approved Rim Width RangeMin-(Measuring)-Max (in) |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| 205/40ZR18 86W XL | 185090 | 9.7 | 24.53 | 8.58 | 7.0-(7.5)-8.0 | 1168 @ 50 | 21.36 |
| 215/35ZR18 84W XL | 185100 | 9.8 | 24.02 | 8.58 | 7.0-(7.5)-8.5 | 1102 @ 50 | 20.62 |
| 215/40ZR18 89W XL | 185110 | 9.8 | 24.76 | 8.70 | 7.0-(7.5)-8.5 | 1279 @ 50 | 21.20 |
| 225/40ZR18 92W XL | 185130 | 10.0 | 25.12 | 9.06 | 7.5-(8.0)-9.0 | 1389 @ 50 | 23.00 |
| 235/40ZR18 95W XL | 185230 | 10.1 | 25.43 | 9.49 | 8.0-(8.5)-9.5 | 1521 @ 50 | 23.36 |
| 245/40ZR18 97W XL | 185250 | 10.2 | 25.75 | 9.65 | 8.0-(8.5)-9.5 | 1609 @ 50 | 25.21 |
| Tire Size |
Stock Number |
Tread Depth(1/32 in) |
Overall Dia (in)Inflated Dimensions | Overall Width (in)Inflated Dimensions | Approved Rim Width RangeMin-(Measuring)-Max (in) |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| 215/35ZR19 85W XL | 185140 | 9.8 | 24.88 | 8.58 | 7.0-(7.5)-8.5 | 1135 @ 50 | 22.37 |
| 245/35ZR19 93W XL | 185210 | 10.2 | 25.79 | 9.65 | 8.0-(8.5)-9.5 | 1433 @ 50 | 23.80 |
| 275/35ZR19 100W XL | 185220 | 10.6 | 26.54 | 10.75 | 9.0-(9.5)-11.0 | 1764 @ 50 | 29.63 |
| Tire Size |
Stock Number |
Tread Depth(1/32 in) |
Overall Dia (in)Inflated Dimensions | Overall Width (in)Inflated Dimensions | Approved Rim Width RangeMin-(Measuring)-Max (in) |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| 225/30ZR20 85W XL | 185170 | 10.0 | 25.35 | 8.82 | 8.0-(8.0)-8.0 | 1135 @ 50 | 20.53 |
| 225/35ZR20 90W XL | 185150 | 10.0 | 26.42 | 9.02 | 7.5-(8.0)-9.0 | 1323 @ 50 | 24.16 |
| 235/30ZR20 88W XL | 185310 | 10.2 | 25.71 | 9.45 | 8.5-(8.5)-8.5 | 1235 @ 50 | 22.69 |
| 245/30ZR20 90W XL | 185180 | 10.2 | 25.98 | 9.53 | 8.0-(8.5)-9.0 | 1323 @ 50 | 23.94 |
| 305/25ZR20 97W XL | 185300 | 10.6 | 25.98 | 12.32 | 10.5-(11.0)-11.5 | 1609 @ 50 | 29.84 |
| Tire Size |
Stock Number |
Tread Depth(1/32 in) |
Overall Dia (in)Inflated Dimensions | Overall Width (in)Inflated Dimensions | Approved Rim Width RangeMin-(Measuring)-Max (in) |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| 235/30ZR22 90W XL | 185340 | 10.2 | 27.76 | 9.49 | 8.5-(8.5)-8.5 | 1323 @ 50 | 25.93 |
Technical specs are subject to change without notice.
*Indicates Extra Load (XL)
Sizes and Specs
Factory Tire Size:
Indicates Fits Your Vehicle Indicates Fits Your Rear Tire Size
-
205/50R15 89V XL
- Stock Number: 185290
- Tread Depth (1/32 in): 9.7
- Inflated Dimensions - Overall Dia (in): 23.07
- Inflated Dimensions - Overall Width (in): 8.39
-
Approved Rim Width Range (in): 5.5-(6.5)-7.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1279 @ 50
- Weight: 20.20
-
205/40R16 83V XL
- Stock Number: 185000
- Tread Depth (1/32 in): 9.7
- Inflated Dimensions - Overall Dia (in): 22.48
- Inflated Dimensions - Overall Width (in): 8.58
-
Approved Rim Width Range (in): 7.0-(7.5)-8.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1074 @ 50
- Weight: 18.29
-
205/45R16 87V XL
- Stock Number: 185010
- Tread Depth (1/32 in): 9.7
- Inflated Dimensions - Overall Dia (in): 23.35
- Inflated Dimensions - Overall Width (in): 8.31
-
Approved Rim Width Range (in): 6.5-(7.0)-7.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1201 @ 50
- Weight: 19.78
-
205/50R16 91V XL
- Stock Number: 185020
- Tread Depth (1/32 in): 9.7
- Inflated Dimensions - Overall Dia (in): 24.02
- Inflated Dimensions - Overall Width (in): 8.43
-
Approved Rim Width Range (in): 5.5-(6.5)-7.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1356 @ 50
- Weight: 22.18
-
205/40ZR17 84W XL
- Stock Number: 185030
- Tread Depth (1/32 in): 9.7
- Inflated Dimensions - Overall Dia (in): 23.54
- Inflated Dimensions - Overall Width (in): 8.58
-
Approved Rim Width Range (in): 7.0-(7.5)-8.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1102 @ 50
- Weight: 19.65
-
205/45ZR17 88W XL
- Stock Number: 185350
- Tread Depth (1/32 in): 9.7
- Inflated Dimensions - Overall Dia (in): 24.33
- Inflated Dimensions - Overall Width (in): 8.23
-
Approved Rim Width Range (in): 6.5-(7.0)-7.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1235 @ 50
- Weight: 21.33
-
215/40ZR17 87W XL
- Stock Number: 185050
- Tread Depth (1/32 in): 9.8
- Inflated Dimensions - Overall Dia (in): 23.90
- Inflated Dimensions - Overall Width (in): 8.86
-
Approved Rim Width Range (in): 7.0-(7.5)-8.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1201 @ 50
- Weight: 20.85
-
215/45ZR17 91W XL
- Stock Number: 185060
- Tread Depth (1/32 in): 9.8
- Inflated Dimensions - Overall Dia (in): 24.76
- Inflated Dimensions - Overall Width (in): 8.43
-
Approved Rim Width Range (in): 7.0-(7.0)-8.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1356 @ 50
- Weight: 22.43
-
225/45ZR17 94W XL
- Stock Number: 185070
- Tread Depth (1/32 in): 10.0
- Inflated Dimensions - Overall Dia (in): 25.08
- Inflated Dimensions - Overall Width (in): 8.90
-
Approved Rim Width Range (in): 7.0-(7.5)-8.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1477 @ 50
- Weight: 24.21
-
225/50ZR17 98W XL
- Stock Number: 185260
- Tread Depth (1/32 in): 10.0
- Inflated Dimensions - Overall Dia (in): 25.91
- Inflated Dimensions - Overall Width (in): 9.06
-
Approved Rim Width Range (in): 6.0-(7.0)-8.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1653 @ 50
- Weight: 25.10
-
235/50ZR17 100W XL
- Stock Number: 185270
- Tread Depth (1/32 in): 10.1
- Inflated Dimensions - Overall Dia (in): 26.22
- Inflated Dimensions - Overall Width (in): 9.53
-
Approved Rim Width Range (in): 6.5-(7.5)-8.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1764 @ 50
- Weight: 27.21
-
205/40ZR18 86W XL
- Stock Number: 185090
- Tread Depth (1/32 in): 9.7
- Inflated Dimensions - Overall Dia (in): 24.53
- Inflated Dimensions - Overall Width (in): 8.58
-
Approved Rim Width Range (in): 7.0-(7.5)-8.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1168 @ 50
- Weight: 21.36
-
215/35ZR18 84W XL
- Stock Number: 185100
- Tread Depth (1/32 in): 9.8
- Inflated Dimensions - Overall Dia (in): 24.02
- Inflated Dimensions - Overall Width (in): 8.58
-
Approved Rim Width Range (in): 7.0-(7.5)-8.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1102 @ 50
- Weight: 20.62
-
215/40ZR18 89W XL
- Stock Number: 185110
- Tread Depth (1/32 in): 9.8
- Inflated Dimensions - Overall Dia (in): 24.76
- Inflated Dimensions - Overall Width (in): 8.70
-
Approved Rim Width Range (in): 7.0-(7.5)-8.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1279 @ 50
- Weight: 21.20
-
225/40ZR18 92W XL
- Stock Number: 185130
- Tread Depth (1/32 in): 10.0
- Inflated Dimensions - Overall Dia (in): 25.12
- Inflated Dimensions - Overall Width (in): 9.06
-
Approved Rim Width Range (in): 7.5-(8.0)-9.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1389 @ 50
- Weight: 23.00
-
235/40ZR18 95W XL
- Stock Number: 185230
- Tread Depth (1/32 in): 10.1
- Inflated Dimensions - Overall Dia (in): 25.43
- Inflated Dimensions - Overall Width (in): 9.49
-
Approved Rim Width Range (in): 8.0-(8.5)-9.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1521 @ 50
- Weight: 23.36
-
245/40ZR18 97W XL
- Stock Number: 185250
- Tread Depth (1/32 in): 10.2
- Inflated Dimensions - Overall Dia (in): 25.75
- Inflated Dimensions - Overall Width (in): 9.65
-
Approved Rim Width Range (in): 8.0-(8.5)-9.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1609 @ 50
- Weight: 25.21
-
215/35ZR19 85W XL
- Stock Number: 185140
- Tread Depth (1/32 in): 9.8
- Inflated Dimensions - Overall Dia (in): 24.88
- Inflated Dimensions - Overall Width (in): 8.58
-
Approved Rim Width Range (in): 7.0-(7.5)-8.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1135 @ 50
- Weight: 22.37
-
245/35ZR19 93W XL
- Stock Number: 185210
- Tread Depth (1/32 in): 10.2
- Inflated Dimensions - Overall Dia (in): 25.79
- Inflated Dimensions - Overall Width (in): 9.65
-
Approved Rim Width Range (in): 8.0-(8.5)-9.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1433 @ 50
- Weight: 23.80
-
275/35ZR19 100W XL
- Stock Number: 185220
- Tread Depth (1/32 in): 10.6
- Inflated Dimensions - Overall Dia (in): 26.54
- Inflated Dimensions - Overall Width (in): 10.75
-
Approved Rim Width Range (in): 9.0-(9.5)-11.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1764 @ 50
- Weight: 29.63
-
225/30ZR20 85W XL
- Stock Number: 185170
- Tread Depth (1/32 in): 10.0
- Inflated Dimensions - Overall Dia (in): 25.35
- Inflated Dimensions - Overall Width (in): 8.82
-
Approved Rim Width Range (in): 8.0-(8.0)-8.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1135 @ 50
- Weight: 20.53
-
225/35ZR20 90W XL
- Stock Number: 185150
- Tread Depth (1/32 in): 10.0
- Inflated Dimensions - Overall Dia (in): 26.42
- Inflated Dimensions - Overall Width (in): 9.02
-
Approved Rim Width Range (in): 7.5-(8.0)-9.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1323 @ 50
- Weight: 24.16
-
235/30ZR20 88W XL
- Stock Number: 185310
- Tread Depth (1/32 in): 10.2
- Inflated Dimensions - Overall Dia (in): 25.71
- Inflated Dimensions - Overall Width (in): 9.45
-
Approved Rim Width Range (in): 8.5-(8.5)-8.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1235 @ 50
- Weight: 22.69
-
245/30ZR20 90W XL
- Stock Number: 185180
- Tread Depth (1/32 in): 10.2
- Inflated Dimensions - Overall Dia (in): 25.98
- Inflated Dimensions - Overall Width (in): 9.53
-
Approved Rim Width Range (in): 8.0-(8.5)-9.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1323 @ 50
- Weight: 23.94
-
305/25ZR20 97W XL
- Stock Number: 185300
- Tread Depth (1/32 in): 10.6
- Inflated Dimensions - Overall Dia (in): 25.98
- Inflated Dimensions - Overall Width (in): 12.32
-
Approved Rim Width Range (in): 10.5-(11.0)-11.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1609 @ 50
- Weight: 29.84
-
235/30ZR22 90W XL
- Stock Number: 185340
- Tread Depth (1/32 in): 10.2
- Inflated Dimensions - Overall Dia (in): 27.76
- Inflated Dimensions - Overall Width (in): 9.49
-
Approved Rim Width Range (in): 8.5-(8.5)-8.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1323 @ 50
- Weight: 25.93
Technical specs are subject to change without notice.
*Indicates Extra Load (XL)
Neo Gen
All-Season Ultra High Performance Tire
The Neo Gen® is an all-season tire created to provide performance in all weather conditions.
UTQG TREADWEAR:
280
TRACTION:
AA
TEMPERATURE:
A
Find a Store
Peace of mind, always

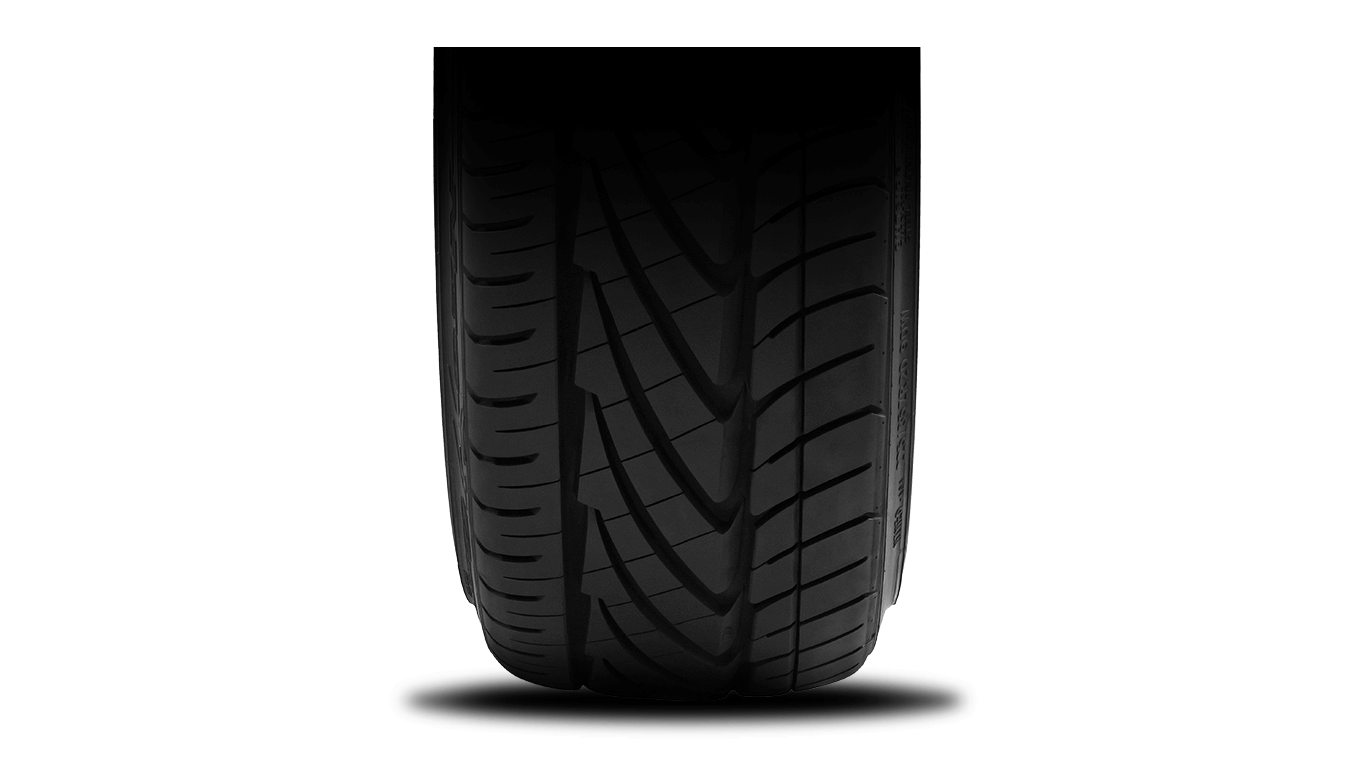

Its silica-reinforced tread compound and asymmetrical non-directional design help provide comfort, performance and peace of mind all year round.
Overall ratings
PERFORMANCE RATINGS
-
Dry Performance is a 3.5 out of 53.5 -
Wet Performance is a 4 out of 54 -
Quietness is a 4 out of 54 -
Ride Comfort is a 3.5 out of 53.5
UTQG TIRE RATINGS
-
Treadwear:280
-
TRACTION:AA
-
TEMPERATURE:A

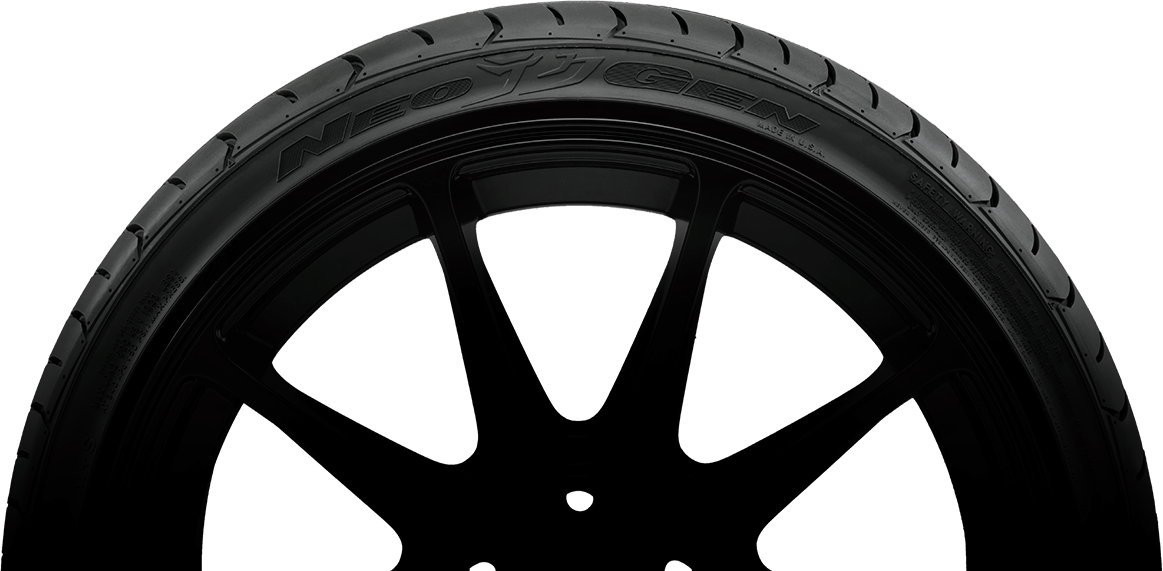

Please note: The following element is a 3D 360-degree interactive model of this tire, designed to showcase the distinct features of the tread, sidewall or other visual characteristics, which have been previously described on this page. For a detailed description of the tire's characteristics, please refer to the content provided elsewhere on this page. To interact with a keyboard, assistive technologies such as screen readers may need to be temporarily disabled. Use your keyboard or mouse to drag and rotate the tire left or right.
Find nitto tires near you
Reviews
What our customers are saying
Thank you for signing up for the Nitto eNewsletter.
There was an error in your submission
Sorry there was an error with your submission, please try again later or contact customer care at (888) 529-8200.
