Factory Tire Size:
Indicates Fits Your Vehicle Indicates Fits Your Rear Tire Size
Sizes & Specs
WHEEL DIAMETER
| Tire Size |
Stock Number |
Tread Depth(1/32 in) |
Overall Dia (in)Inflated Dimensions | Overall Width (in)Inflated Dimensions | Approved Rim Width RangeMin-(Measuring)-Max (in) |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| P275/50R15 101W | 108610 | 6.3 | 25.87 | 11.18 | 7.0-(8.5)-11.0 | 1830 @ 51 | 27.56 |
| P275/60R15 107V | 107830 | 6.3 | 27.99 | 10.98 | 7.5-(8.0)-9.5 | 2149 @ 51 | 30.42 |
| P325/50R15 112V | 107840 | 6.3 | 27.83 | 13.23 | 9.0-(10.0)-11.5 | 2447 @ 51 | 35.49 |
| Tire Size |
Stock Number |
Tread Depth(1/32 in) |
Overall Dia (in)Inflated Dimensions | Overall Width (in)Inflated Dimensions | Approved Rim Width RangeMin-(Measuring)-Max (in) |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| 245/50R16 97W | 108720 | 6.3 | 25.67 | 9.96 | 7.0-(7.5)-8.5 | 1609 @ 51 | 25.00 |
| Tire Size |
Stock Number |
Tread Depth(1/32 in) |
Overall Dia (in)Inflated Dimensions | Overall Width (in)Inflated Dimensions | Approved Rim Width RangeMin-(Measuring)-Max (in) |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| 245/45R17 99W XL | 108750 | 6.3 | 25.67 | 9.57 | 7.5-(8.0)-9.0 | 1709 @ 50 | 24.91 |
| P275/40R17 93W LL | 108650 | 6.3 | 25.67 | 10.94 | 9.0-(9.5)-11.0 | 1433 @ 44 | 26.23 |
| P305/45R17 102W LL | 108760 | 6.3 | 27.80 | 11.93 | 9.5-(10.0)-11.5 | 1874 @ 44 | 31.09 |
| P315/35R17 93W LL | 108670 | 6.3 | 25.67 | 12.60 | 10.5-(11.0)-12.5 | 1433 @ 44 | 30.42 |
| 315/60R17 116W | 111030 | 6.3 | 31.89 | 12.72 | 8.5-(9.5)-11.0 | 2756 @ 51 | 42.11 |
| Tire Size |
Stock Number |
Tread Depth(1/32 in) |
Overall Dia (in)Inflated Dimensions | Overall Width (in)Inflated Dimensions | Approved Rim Width RangeMin-(Measuring)-Max (in) |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| P275/40R18 94W LL | 108680 | 6.3 | 26.65 | 10.94 | 9.0-(9.5)-11.0 | 1477 @ 44 | 27.56 |
| P285/40R18 96W LL | 108540 | 6.3 | 26.97 | 11.42 | 9.5-(10.0)-11.0 | 1565 @ 44 | 28.44 |
| 305/35R18 105W XL | 108700 | 6.3 | 26.42 | 12.32 | 10.0-(11.0)-12.0 | 2039 @ 50 | 31.75 |
| P305/40R18 106W | 108790 | 6.3 | 27.60 | 12.32 | 10.0-(11.0)-12.0 | 2094 @ 51 | 31.28 |
| P305/45R18 103W LL | 108740 | 6.3 | 28.78 | 11.93 | 9.5-(10.0)-11.5 | 1929 @ 44 | 33.51 |
| P315/40R18 102W LL | 108770 | 6.3 | 27.91 | 12.60 | 10.5-(11.0)-12.5 | 1874 @ 44 | 31.57 |
| P335/30R18 95W LL | 108800 | 6.3 | 25.94 | 13.50 | 11.5-(12.0)-12.5 | 1521 @ 44 | 32.06 |
| Tire Size |
Stock Number |
Tread Depth(1/32 in) |
Overall Dia (in)Inflated Dimensions | Overall Width (in)Inflated Dimensions | Approved Rim Width RangeMin-(Measuring)-Max (in) |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| 275/40R19 101W | 108710 | 6.3 | 27.68 | 10.94 | 9.0-(9.5)-11.0 | 1819 @ 51 | 28.66 |
| 285/35R19 103W XL | 108780 | 6.3 | 26.89 | 11.42 | 9.5-(10.0)-11.0 | 1929 @ 50 | 31.24 |
| 305/35R19 106W XL | 108640 | 6.3 | 27.44 | 12.32 | 10.0-(11.0)-12.0 | 2094 @ 50 | 33.07 |
| 345/30R19 105W | 108730 | 6.3 | 27.20 | 13.78 | 11.5-(12.0)-12.5 | 2039 @ 51 | 32.85 |
| Tire Size |
Stock Number |
Tread Depth(1/32 in) |
Overall Dia (in)Inflated Dimensions | Overall Width (in)Inflated Dimensions | Approved Rim Width RangeMin-(Measuring)-Max (in) |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| 275/35R20 102W XL | 108690 | 6.3 | 27.56 | 10.94 | 9.0-(9.5)-11.0 | 1874 @ 50 | 29.76 |
| 275/40R20 106W XL | 108660 | 6.3 | 28.66 | 10.94 | 9.0-(9.5)-11.0 | 2094 @ 50 | 30.64 |
| 285/30R20 99W XL | 108550 | 6.3 | 26.77 | 11.42 | 9.5-(10.0)-10.5 | 1709 @ 50 | 29.98 |
| 295/35R20 105W XL | 108810 | 6.3 | 28.11 | 11.85 | 10.0-(10.5)-11.5 | 2039 @ 50 | 33.97 |
| 305/30R20 103W XL | 108560 | 6.3 | 27.24 | 12.32 | 10.5-(11.0)-11.5 | 1929 @ 50 | 31.75 |
| 305/35R20 107W XL | 108580 | 6.3 | 28.43 | 12.32 | 10.0-(11.0)-12.0 | 2149 @ 50 | 34.17 |
| 305/50R20 116V | 108820 | 6.3 | 32.05 | 12.44 | 8.5-(9.5)-11.0 | 2756 @ 51 | 44.25 |
| 315/35R20 106W | 108630 | 6.3 | 28.66 | 12.60 | 10.5-(11.0)-12.5 | 2094 @ 51 | 34.61 |
| Tire Size |
Stock Number |
Tread Depth(1/32 in) |
Overall Dia (in)Inflated Dimensions | Overall Width (in)Inflated Dimensions | Approved Rim Width RangeMin-(Measuring)-Max (in) |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| 305/40R22 114W XL | 108570 | 6.3 | 31.61 | 12.32 | 10.0-(11.0)-12.0 | 2601 @ 50 | 38.58 |
Technical specs are subject to change without notice.
Sizes and Specs
Factory Tire Size:
Indicates Fits Your Vehicle Indicates Fits Your Rear Tire Size
-
P275/50R15 101W
- Stock Number: 108610
- Tread Depth (1/32 in): 6.3
- Inflated Dimensions - Overall Dia (in): 25.87
- Inflated Dimensions - Overall Width (in): 11.18
-
Approved Rim Width Range (in): 7.0-(8.5)-11.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1830 @ 51
- Weight: 27.56
-
P275/60R15 107V
- Stock Number: 107830
- Tread Depth (1/32 in): 6.3
- Inflated Dimensions - Overall Dia (in): 27.99
- Inflated Dimensions - Overall Width (in): 10.98
-
Approved Rim Width Range (in): 7.5-(8.0)-9.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2149 @ 51
- Weight: 30.42
-
P325/50R15 112V
- Stock Number: 107840
- Tread Depth (1/32 in): 6.3
- Inflated Dimensions - Overall Dia (in): 27.83
- Inflated Dimensions - Overall Width (in): 13.23
-
Approved Rim Width Range (in): 9.0-(10.0)-11.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2447 @ 51
- Weight: 35.49
-
245/50R16 97W
- Stock Number: 108720
- Tread Depth (1/32 in): 6.3
- Inflated Dimensions - Overall Dia (in): 25.67
- Inflated Dimensions - Overall Width (in): 9.96
-
Approved Rim Width Range (in): 7.0-(7.5)-8.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1609 @ 51
- Weight: 25.00
-
245/45R17 99W XL
- Stock Number: 108750
- Tread Depth (1/32 in): 6.3
- Inflated Dimensions - Overall Dia (in): 25.67
- Inflated Dimensions - Overall Width (in): 9.57
-
Approved Rim Width Range (in): 7.5-(8.0)-9.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1709 @ 50
- Weight: 24.91
-
P275/40R17 93W LL
- Stock Number: 108650
- Tread Depth (1/32 in): 6.3
- Inflated Dimensions - Overall Dia (in): 25.67
- Inflated Dimensions - Overall Width (in): 10.94
-
Approved Rim Width Range (in): 9.0-(9.5)-11.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1433 @ 44
- Weight: 26.23
-
P305/45R17 102W LL
- Stock Number: 108760
- Tread Depth (1/32 in): 6.3
- Inflated Dimensions - Overall Dia (in): 27.80
- Inflated Dimensions - Overall Width (in): 11.93
-
Approved Rim Width Range (in): 9.5-(10.0)-11.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1874 @ 44
- Weight: 31.09
-
P315/35R17 93W LL
- Stock Number: 108670
- Tread Depth (1/32 in): 6.3
- Inflated Dimensions - Overall Dia (in): 25.67
- Inflated Dimensions - Overall Width (in): 12.60
-
Approved Rim Width Range (in): 10.5-(11.0)-12.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1433 @ 44
- Weight: 30.42
-
315/60R17 116W
- Stock Number: 111030
- Tread Depth (1/32 in): 6.3
- Inflated Dimensions - Overall Dia (in): 31.89
- Inflated Dimensions - Overall Width (in): 12.72
-
Approved Rim Width Range (in): 8.5-(9.5)-11.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2756 @ 51
- Weight: 42.11
-
P275/40R18 94W LL
- Stock Number: 108680
- Tread Depth (1/32 in): 6.3
- Inflated Dimensions - Overall Dia (in): 26.65
- Inflated Dimensions - Overall Width (in): 10.94
-
Approved Rim Width Range (in): 9.0-(9.5)-11.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1477 @ 44
- Weight: 27.56
-
P285/40R18 96W LL
- Stock Number: 108540
- Tread Depth (1/32 in): 6.3
- Inflated Dimensions - Overall Dia (in): 26.97
- Inflated Dimensions - Overall Width (in): 11.42
-
Approved Rim Width Range (in): 9.5-(10.0)-11.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1565 @ 44
- Weight: 28.44
-
305/35R18 105W XL
- Stock Number: 108700
- Tread Depth (1/32 in): 6.3
- Inflated Dimensions - Overall Dia (in): 26.42
- Inflated Dimensions - Overall Width (in): 12.32
-
Approved Rim Width Range (in): 10.0-(11.0)-12.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2039 @ 50
- Weight: 31.75
-
P305/40R18 106W
- Stock Number: 108790
- Tread Depth (1/32 in): 6.3
- Inflated Dimensions - Overall Dia (in): 27.60
- Inflated Dimensions - Overall Width (in): 12.32
-
Approved Rim Width Range (in): 10.0-(11.0)-12.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2094 @ 51
- Weight: 31.28
-
P305/45R18 103W LL
- Stock Number: 108740
- Tread Depth (1/32 in): 6.3
- Inflated Dimensions - Overall Dia (in): 28.78
- Inflated Dimensions - Overall Width (in): 11.93
-
Approved Rim Width Range (in): 9.5-(10.0)-11.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1929 @ 44
- Weight: 33.51
-
P315/40R18 102W LL
- Stock Number: 108770
- Tread Depth (1/32 in): 6.3
- Inflated Dimensions - Overall Dia (in): 27.91
- Inflated Dimensions - Overall Width (in): 12.60
-
Approved Rim Width Range (in): 10.5-(11.0)-12.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1874 @ 44
- Weight: 31.57
-
P335/30R18 95W LL
- Stock Number: 108800
- Tread Depth (1/32 in): 6.3
- Inflated Dimensions - Overall Dia (in): 25.94
- Inflated Dimensions - Overall Width (in): 13.50
-
Approved Rim Width Range (in): 11.5-(12.0)-12.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1521 @ 44
- Weight: 32.06
-
275/40R19 101W
- Stock Number: 108710
- Tread Depth (1/32 in): 6.3
- Inflated Dimensions - Overall Dia (in): 27.68
- Inflated Dimensions - Overall Width (in): 10.94
-
Approved Rim Width Range (in): 9.0-(9.5)-11.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1819 @ 51
- Weight: 28.66
-
285/35R19 103W XL
- Stock Number: 108780
- Tread Depth (1/32 in): 6.3
- Inflated Dimensions - Overall Dia (in): 26.89
- Inflated Dimensions - Overall Width (in): 11.42
-
Approved Rim Width Range (in): 9.5-(10.0)-11.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1929 @ 50
- Weight: 31.24
-
305/35R19 106W XL
- Stock Number: 108640
- Tread Depth (1/32 in): 6.3
- Inflated Dimensions - Overall Dia (in): 27.44
- Inflated Dimensions - Overall Width (in): 12.32
-
Approved Rim Width Range (in): 10.0-(11.0)-12.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2094 @ 50
- Weight: 33.07
-
345/30R19 105W
- Stock Number: 108730
- Tread Depth (1/32 in): 6.3
- Inflated Dimensions - Overall Dia (in): 27.20
- Inflated Dimensions - Overall Width (in): 13.78
-
Approved Rim Width Range (in): 11.5-(12.0)-12.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2039 @ 51
- Weight: 32.85
-
275/35R20 102W XL
- Stock Number: 108690
- Tread Depth (1/32 in): 6.3
- Inflated Dimensions - Overall Dia (in): 27.56
- Inflated Dimensions - Overall Width (in): 10.94
-
Approved Rim Width Range (in): 9.0-(9.5)-11.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1874 @ 50
- Weight: 29.76
-
275/40R20 106W XL
- Stock Number: 108660
- Tread Depth (1/32 in): 6.3
- Inflated Dimensions - Overall Dia (in): 28.66
- Inflated Dimensions - Overall Width (in): 10.94
-
Approved Rim Width Range (in): 9.0-(9.5)-11.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2094 @ 50
- Weight: 30.64
-
285/30R20 99W XL
- Stock Number: 108550
- Tread Depth (1/32 in): 6.3
- Inflated Dimensions - Overall Dia (in): 26.77
- Inflated Dimensions - Overall Width (in): 11.42
-
Approved Rim Width Range (in): 9.5-(10.0)-10.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1709 @ 50
- Weight: 29.98
-
295/35R20 105W XL
- Stock Number: 108810
- Tread Depth (1/32 in): 6.3
- Inflated Dimensions - Overall Dia (in): 28.11
- Inflated Dimensions - Overall Width (in): 11.85
-
Approved Rim Width Range (in): 10.0-(10.5)-11.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2039 @ 50
- Weight: 33.97
-
305/30R20 103W XL
- Stock Number: 108560
- Tread Depth (1/32 in): 6.3
- Inflated Dimensions - Overall Dia (in): 27.24
- Inflated Dimensions - Overall Width (in): 12.32
-
Approved Rim Width Range (in): 10.5-(11.0)-11.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1929 @ 50
- Weight: 31.75
-
305/35R20 107W XL
- Stock Number: 108580
- Tread Depth (1/32 in): 6.3
- Inflated Dimensions - Overall Dia (in): 28.43
- Inflated Dimensions - Overall Width (in): 12.32
-
Approved Rim Width Range (in): 10.0-(11.0)-12.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2149 @ 50
- Weight: 34.17
-
305/50R20 116V
- Stock Number: 108820
- Tread Depth (1/32 in): 6.3
- Inflated Dimensions - Overall Dia (in): 32.05
- Inflated Dimensions - Overall Width (in): 12.44
-
Approved Rim Width Range (in): 8.5-(9.5)-11.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2756 @ 51
- Weight: 44.25
-
315/35R20 106W
- Stock Number: 108630
- Tread Depth (1/32 in): 6.3
- Inflated Dimensions - Overall Dia (in): 28.66
- Inflated Dimensions - Overall Width (in): 12.60
-
Approved Rim Width Range (in): 10.5-(11.0)-12.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2094 @ 51
- Weight: 34.61
-
305/40R22 114W XL
- Stock Number: 108570
- Tread Depth (1/32 in): 6.3
- Inflated Dimensions - Overall Dia (in): 31.61
- Inflated Dimensions - Overall Width (in): 12.32
-
Approved Rim Width Range (in): 10.0-(11.0)-12.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2601 @ 50
- Weight: 38.58
Technical specs are subject to change without notice.

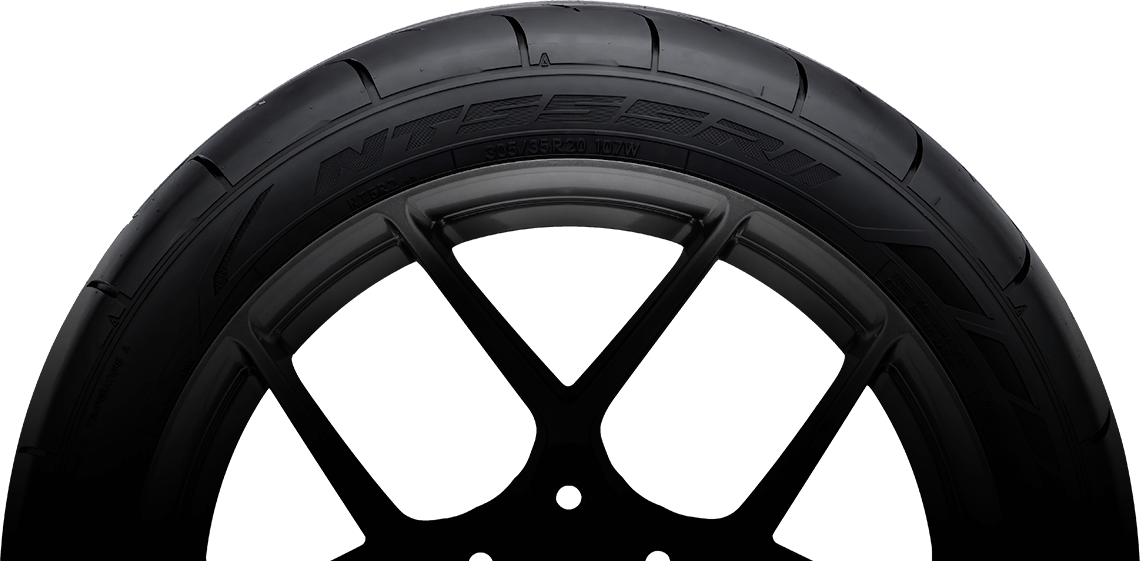

NT555RII
D.O.T.-Compliant Competition Drag Radial Tire
The NT555®RII is a D.O.T.-compliant competition drag radial designed with additional flexibility for the weekend drag racer.
UTQG TREADWEAR:
100
TRACTION:
A
TEMPERATURE:
A
Find a Store
Launch off the line
The high-grip compound and semi-racing construction provide increased traction at the starting line, while the large circumferential grooves aid wet handling on your way to the drag strip.
Overall ratings
PERFORMANCE RATINGS
-
Dry Performance is a 5 out of 55 -
Wet Performance is a 2.5 out of 52.5 -
Quietness is a 2 out of 52 -
Ride Comfort is a 3 out of 53
UTQG TIRE RATINGS
-
Treadwear:100
-
TRACTION:A
-
TEMPERATURE:A
Additional Information
Please note: The following element is a 3D 360-degree interactive model of this tire, designed to showcase the distinct features of the tread, sidewall or other visual characteristics, which have been previously described on this page. For a detailed description of the tire's characteristics, please refer to the content provided elsewhere on this page. To interact with a keyboard, assistive technologies such as screen readers may need to be temporarily disabled. Use your keyboard or mouse to drag and rotate the tire left or right.
Find nitto tires near you
Reviews
