Factory Tire Size:
Indicates Fits Your Vehicle Indicates Fits Your Rear Tire Size
Sizes & Specs
WHEEL DIAMETER
| Tire Size |
Stock Number |
Tread Depth(1/32 in) |
Overall Dia (in)Inflated Dimensions | Overall Width (in)Inflated Dimensions | Approved Rim Width RangeMin-(Measuring)-Max (in) |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| 30x9.50R15LT | 207460 | 17.6 | 29.76 | 9.45 | 6.0-(7.5)-8.0 | 1565 @ 35 | 38.89 |
| 32x9.50R15LT | 207700 | 17.6 | 31.77 | 9.45 | 6.0-(7.5)-8.0 | 1820 @ 35 | 43.43 |
| 33x9.50R15LT | 207970 | 17.6 | 32.52 | 9.45 | 6.0-(7.5)-8.0 | 2205 @ 35 | 45.64 |
| 35x9.50R15LT | 209500 | 17.6 | 34.53 | 9.45 | 6.0-(7.5)-8.0 | 2205 @ 35 | 56.31 |
Technical specs are subject to change without notice.
Sizes and Specs
Factory Tire Size:
Indicates Fits Your Vehicle Indicates Fits Your Rear Tire Size
-
30x9.50R15LT
- Stock Number: 207460
- Tread Depth (1/32 in): 17.6
- Inflated Dimensions - Overall Dia (in): 29.76
- Inflated Dimensions - Overall Width (in): 9.45
-
Approved Rim Width Range (in): 6.0-(7.5)-8.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1565 @ 35
- Weight: 38.89
-
32x9.50R15LT
- Stock Number: 207700
- Tread Depth (1/32 in): 17.6
- Inflated Dimensions - Overall Dia (in): 31.77
- Inflated Dimensions - Overall Width (in): 9.45
-
Approved Rim Width Range (in): 6.0-(7.5)-8.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1820 @ 35
- Weight: 43.43
-
33x9.50R15LT
- Stock Number: 207970
- Tread Depth (1/32 in): 17.6
- Inflated Dimensions - Overall Dia (in): 32.52
- Inflated Dimensions - Overall Width (in): 9.45
-
Approved Rim Width Range (in): 6.0-(7.5)-8.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2205 @ 35
- Weight: 45.64
-
35x9.50R15LT
- Stock Number: 209500
- Tread Depth (1/32 in): 17.6
- Inflated Dimensions - Overall Dia (in): 34.53
- Inflated Dimensions - Overall Width (in): 9.45
-
Approved Rim Width Range (in): 6.0-(7.5)-8.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2205 @ 35
- Weight: 56.31
Technical specs are subject to change without notice.
Trail Grappler SxS
Performance SxS Tire
Trail Grappler® SxS brings the durability and performance of the Trail Grappler M/T to Side-by-Side drivers.
Find a Store
Smaller tire, same performance
Developed to compete in the King of the Hammers UTV class race, the Trail Grappler® SxS has been tested in the harshest off-road racing environments by the champions. Trail Grappler® SxS not only features the iconic tread pattern of its big brother, but it also carries on Nitto’s DNA of race-proven technology.
Overall ratings
Additional Information

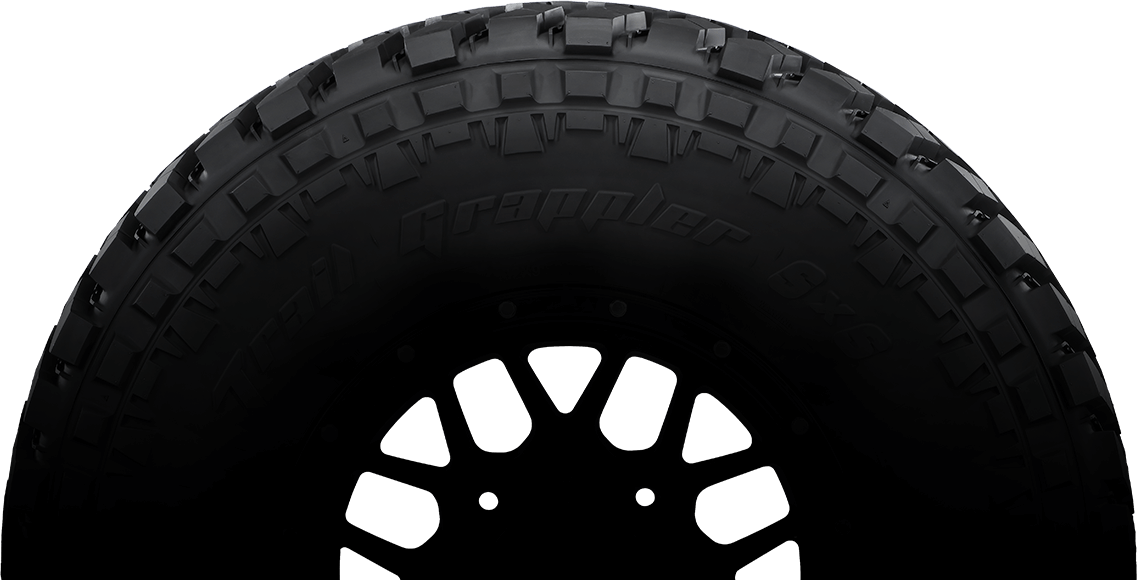

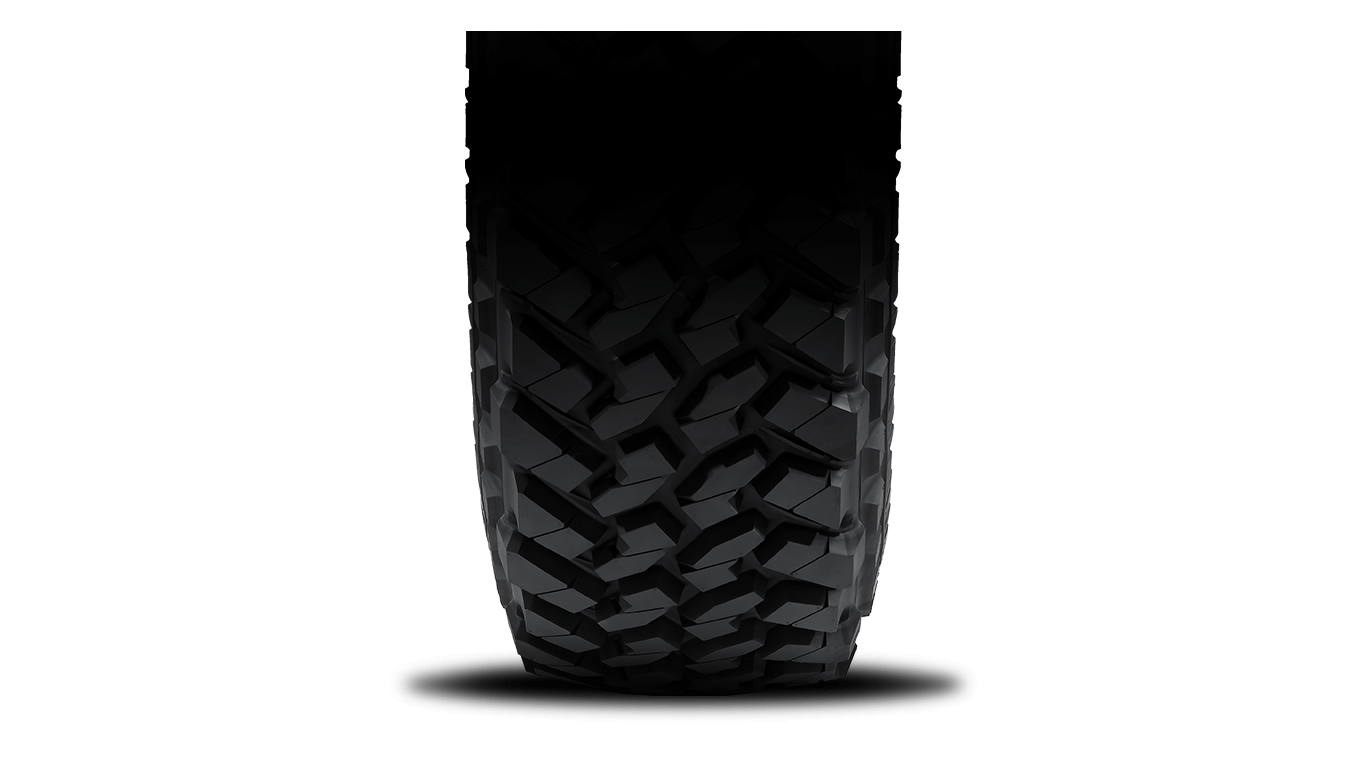

Please note: The following element is a 3D 360-degree interactive model of this tire, designed to showcase the distinct features of the tread, sidewall or other visual characteristics, which have been previously described on this page. For a detailed description of the tire's characteristics, please refer to the content provided elsewhere on this page. To interact with a keyboard, assistive technologies such as screen readers may need to be temporarily disabled. Use your keyboard or mouse to drag and rotate the tire left or right.
