Factory Tire Size:
Indicates Fits Your Vehicle Indicates Fits Your Rear Tire Size
Sizes & Specs
WHEEL DIAMETER
| Tire Size |
Stock Number |
Tread Depth(1/32 in) |
Overall Dia (in)Inflated Dimensions | Overall Width (in)Inflated Dimensions | Approved Rim Width RangeMin-(Measuring)-Max (in) |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| LT235/85R16 E 120R | 205140 | 15.6 | 31.69 | 9.57 | 6.0-(6.5)-7.5 | 3042 @ 80 | 45.43 |
| LT245/75R16 E 120/116R | 205090 | 15.6 | 30.47 | 9.96 | 6.5-(7.0)-8.0 | 3042 @ 80 | 45.96 |
| LT265/75R16 E 123/120Q | 205620 | 16.8 | 31.65 | 10.51 | 7.0-(7.5)-9.0 | 3415 @ 80 | 50.71 |
| LT285/75R16 E 126/123R | 205110 | 16.9 | 32.87 | 11.50 | 7.5-(8.0)-9.5 | 3750 @ 80 | 57.98 |
| LT305/70R16 E 124R | 205040 | 16.9 | 32.79 | 12.56 | 8.0-(9.0)-10.0 | 3525 @ 65 | 58.21 |
| Tire Size |
Stock Number |
Tread Depth(1/32 in) |
Overall Dia (in)Inflated Dimensions | Overall Width (in)Inflated Dimensions | Approved Rim Width RangeMin-(Measuring)-Max (in) |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| LT235/80R17 E 120/117R | 205130 | 15.6 | 31.77 | 9.32 | 6.0-(6.5)-8.0 | 3085 @ 80 | 45.16 |
| P245/65R17 105S | 205270 | 12.6 | 29.45 | 9.76 | 7.0-(7.0)-8.5 | 2039 @ 44 | 35.74 |
| LT245/70R17 E 119/116R | 205050 | 15.7 | 30.59 | 9.69 | 6.5-(7.0)-8.0 | 3000 @ 80 | 44.29 |
| LT245/75R17 E 121/118Q | 205650 | 16.4 | 31.50 | 9.76 | 6.5-(7.0)-8.0 | 3195 @ 80 | 48.50 |
| 265/65R17 112T | 205170 | 12.9 | 30.51 | 10.71 | 7.5-(8.0)-9.5 | 2469 @ 44 | 38.68 |
| LT265/70R17 E 121/118Q | 205630 | 16.8 | 31.65 | 10.71 | 7.0-(8.0)-9.0 | 3195 @ 80 | 50.71 |
| P265/70R17 113S | 205200 | 13.1 | 31.57 | 10.79 | 7.0-(8.0)-9.0 | 2535 @ 44 | 42.58 |
| LT285/70R17 E 126/123R | 205070 | 16.9 | 32.79 | 11.49 | 7.5-(8.5)-9.5 | 3750 @ 80 | 55.27 |
| LT285/75R17 E 128/125R | 205370 | 16.9 | 33.86 | 11.61 | 7.5-(8.0)-9.5 | 3970 @ 80 | 67.23 |
| Tire Size |
Stock Number |
Tread Depth(1/32 in) |
Overall Dia (in)Inflated Dimensions | Overall Width (in)Inflated Dimensions | Approved Rim Width RangeMin-(Measuring)-Max (in) |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| 255/70R18 117S XL | 205350 | 13.0 | 32.17 | 10.08 | 6.5-(7.5)-8.5 | 2833 @ 50 | 42.04 |
| 265/60R18 110H | 205160 | 12.9 | 30.60 | 10.70 | 7.5-(8.0)-9.5 | 2337 @ 51 | 39.33 |
| LT275/65R18 E 123/120Q | 205640 | 16.8 | 32.09 | 10.98 | 8.0-(8.0)-9.5 | 3415 @ 80 | 55.12 |
| LT275/70R18 E 125/122R | 205080 | 16.0 | 33.23 | 11.00 | 7.0-(8.0)-9.0 | 3640 @ 80 | 53.47 |
| LT305/70R18 E 126/123R | 205380 | 17.3 | 35.28 | 12.80 | 8.0-(9.0)-10.0 | 3750 @ 65 | 67.22 |
| Tire Size |
Stock Number |
Tread Depth(1/32 in) |
Overall Dia (in)Inflated Dimensions | Overall Width (in)Inflated Dimensions | Approved Rim Width RangeMin-(Measuring)-Max (in) |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| 275/55R20 117H XL | 205150 | 13.0 | 31.89 | 11.34 | 7.5-(8.5)-9.5 | 2833 @ 50 | 44.12 |
| LT275/60R20 E 123/120R | 205010 | 16.0 | 33.03 | 10.90 | 8.0-(8.0)-9.5 | 3415 @ 80 | 56.46 |
| LT275/65R20 E 126/123R | 205030 | 16.0 | 34.05 | 10.90 | 8.0-(8.0)-9.5 | 3750 @ 80 | 60.76 |
| LT305/55R20 E 121/118R | 205340 | 16.0 | 33.11 | 12.56 | 9.0-(9.5)-11.0 | 3195 @ 65 | 65.61 |
| Tire Size |
Stock Number |
Tread Depth(1/32 in) |
Overall Dia (in)Inflated Dimensions | Overall Width (in)Inflated Dimensions | Approved Rim Width RangeMin-(Measuring)-Max (in) |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| LT285/50R22 E 121/118R | 205000 | 16.0 | 33.27 | 11.50 | 8.5-(9.0)-10.0 | 3195 @ 80 | 63.83 |
Technical specs are subject to change without notice. LT tires with a "C" load range have a 6-ply rating. LT tires with a "D" load range have an 8-ply rating. LT Tires with an "E" load range have a 10-ply rating. LT Tires with an "F" load range have a 12-ply rating. *Indicates Extra Load (XL)
Sizes and Specs
Factory Tire Size:
Indicates Fits Your Vehicle Indicates Fits Your Rear Tire Size
-
LT235/85R16 E 120R
- Stock Number: 205140
- Tread Depth (1/32 in): 15.6
- Inflated Dimensions - Overall Dia (in): 31.69
- Inflated Dimensions - Overall Width (in): 9.57
-
Approved Rim Width Range (in): 6.0-(6.5)-7.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3042 @ 80
- Weight: 45.43
-
LT245/75R16 E 120/116R
- Stock Number: 205090
- Tread Depth (1/32 in): 15.6
- Inflated Dimensions - Overall Dia (in): 30.47
- Inflated Dimensions - Overall Width (in): 9.96
-
Approved Rim Width Range (in): 6.5-(7.0)-8.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3042 @ 80
- Weight: 45.96
-
LT265/75R16 E 123/120Q
- Stock Number: 205620
- Tread Depth (1/32 in): 16.8
- Inflated Dimensions - Overall Dia (in): 31.65
- Inflated Dimensions - Overall Width (in): 10.51
-
Approved Rim Width Range (in): 7.0-(7.5)-9.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3415 @ 80
- Weight: 50.71
-
LT285/75R16 E 126/123R
- Stock Number: 205110
- Tread Depth (1/32 in): 16.9
- Inflated Dimensions - Overall Dia (in): 32.87
- Inflated Dimensions - Overall Width (in): 11.50
-
Approved Rim Width Range (in): 7.5-(8.0)-9.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3750 @ 80
- Weight: 57.98
-
LT305/70R16 E 124R
- Stock Number: 205040
- Tread Depth (1/32 in): 16.9
- Inflated Dimensions - Overall Dia (in): 32.79
- Inflated Dimensions - Overall Width (in): 12.56
-
Approved Rim Width Range (in): 8.0-(9.0)-10.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3525 @ 65
- Weight: 58.21
-
LT235/80R17 E 120/117R
- Stock Number: 205130
- Tread Depth (1/32 in): 15.6
- Inflated Dimensions - Overall Dia (in): 31.77
- Inflated Dimensions - Overall Width (in): 9.32
-
Approved Rim Width Range (in): 6.0-(6.5)-8.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3085 @ 80
- Weight: 45.16
-
P245/65R17 105S
- Stock Number: 205270
- Tread Depth (1/32 in): 12.6
- Inflated Dimensions - Overall Dia (in): 29.45
- Inflated Dimensions - Overall Width (in): 9.76
-
Approved Rim Width Range (in): 7.0-(7.0)-8.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2039 @ 44
- Weight: 35.74
-
LT245/70R17 E 119/116R
- Stock Number: 205050
- Tread Depth (1/32 in): 15.7
- Inflated Dimensions - Overall Dia (in): 30.59
- Inflated Dimensions - Overall Width (in): 9.69
-
Approved Rim Width Range (in): 6.5-(7.0)-8.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3000 @ 80
- Weight: 44.29
-
LT245/75R17 E 121/118Q
- Stock Number: 205650
- Tread Depth (1/32 in): 16.4
- Inflated Dimensions - Overall Dia (in): 31.50
- Inflated Dimensions - Overall Width (in): 9.76
-
Approved Rim Width Range (in): 6.5-(7.0)-8.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3195 @ 80
- Weight: 48.50
-
265/65R17 112T
- Stock Number: 205170
- Tread Depth (1/32 in): 12.9
- Inflated Dimensions - Overall Dia (in): 30.51
- Inflated Dimensions - Overall Width (in): 10.71
-
Approved Rim Width Range (in): 7.5-(8.0)-9.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2469 @ 44
- Weight: 38.68
-
LT265/70R17 E 121/118Q
- Stock Number: 205630
- Tread Depth (1/32 in): 16.8
- Inflated Dimensions - Overall Dia (in): 31.65
- Inflated Dimensions - Overall Width (in): 10.71
-
Approved Rim Width Range (in): 7.0-(8.0)-9.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3195 @ 80
- Weight: 50.71
-
P265/70R17 113S
- Stock Number: 205200
- Tread Depth (1/32 in): 13.1
- Inflated Dimensions - Overall Dia (in): 31.57
- Inflated Dimensions - Overall Width (in): 10.79
-
Approved Rim Width Range (in): 7.0-(8.0)-9.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2535 @ 44
- Weight: 42.58
-
LT285/70R17 E 126/123R
- Stock Number: 205070
- Tread Depth (1/32 in): 16.9
- Inflated Dimensions - Overall Dia (in): 32.79
- Inflated Dimensions - Overall Width (in): 11.49
-
Approved Rim Width Range (in): 7.5-(8.5)-9.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3750 @ 80
- Weight: 55.27
-
LT285/75R17 E 128/125R
- Stock Number: 205370
- Tread Depth (1/32 in): 16.9
- Inflated Dimensions - Overall Dia (in): 33.86
- Inflated Dimensions - Overall Width (in): 11.61
-
Approved Rim Width Range (in): 7.5-(8.0)-9.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3970 @ 80
- Weight: 67.23
-
255/70R18 117S XL
- Stock Number: 205350
- Tread Depth (1/32 in): 13.0
- Inflated Dimensions - Overall Dia (in): 32.17
- Inflated Dimensions - Overall Width (in): 10.08
-
Approved Rim Width Range (in): 6.5-(7.5)-8.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2833 @ 50
- Weight: 42.04
-
265/60R18 110H
- Stock Number: 205160
- Tread Depth (1/32 in): 12.9
- Inflated Dimensions - Overall Dia (in): 30.60
- Inflated Dimensions - Overall Width (in): 10.70
-
Approved Rim Width Range (in): 7.5-(8.0)-9.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2337 @ 51
- Weight: 39.33
-
LT275/65R18 E 123/120Q
- Stock Number: 205640
- Tread Depth (1/32 in): 16.8
- Inflated Dimensions - Overall Dia (in): 32.09
- Inflated Dimensions - Overall Width (in): 10.98
-
Approved Rim Width Range (in): 8.0-(8.0)-9.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3415 @ 80
- Weight: 55.12
-
LT275/70R18 E 125/122R
- Stock Number: 205080
- Tread Depth (1/32 in): 16.0
- Inflated Dimensions - Overall Dia (in): 33.23
- Inflated Dimensions - Overall Width (in): 11.00
-
Approved Rim Width Range (in): 7.0-(8.0)-9.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3640 @ 80
- Weight: 53.47
-
LT305/70R18 E 126/123R
- Stock Number: 205380
- Tread Depth (1/32 in): 17.3
- Inflated Dimensions - Overall Dia (in): 35.28
- Inflated Dimensions - Overall Width (in): 12.80
-
Approved Rim Width Range (in): 8.0-(9.0)-10.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3750 @ 65
- Weight: 67.22
-
275/55R20 117H XL
- Stock Number: 205150
- Tread Depth (1/32 in): 13.0
- Inflated Dimensions - Overall Dia (in): 31.89
- Inflated Dimensions - Overall Width (in): 11.34
-
Approved Rim Width Range (in): 7.5-(8.5)-9.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2833 @ 50
- Weight: 44.12
-
LT275/60R20 E 123/120R
- Stock Number: 205010
- Tread Depth (1/32 in): 16.0
- Inflated Dimensions - Overall Dia (in): 33.03
- Inflated Dimensions - Overall Width (in): 10.90
-
Approved Rim Width Range (in): 8.0-(8.0)-9.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3415 @ 80
- Weight: 56.46
-
LT275/65R20 E 126/123R
- Stock Number: 205030
- Tread Depth (1/32 in): 16.0
- Inflated Dimensions - Overall Dia (in): 34.05
- Inflated Dimensions - Overall Width (in): 10.90
-
Approved Rim Width Range (in): 8.0-(8.0)-9.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3750 @ 80
- Weight: 60.76
-
LT305/55R20 E 121/118R
- Stock Number: 205340
- Tread Depth (1/32 in): 16.0
- Inflated Dimensions - Overall Dia (in): 33.11
- Inflated Dimensions - Overall Width (in): 12.56
-
Approved Rim Width Range (in): 9.0-(9.5)-11.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3195 @ 65
- Weight: 65.61
-
LT285/50R22 E 121/118R
- Stock Number: 205000
- Tread Depth (1/32 in): 16.0
- Inflated Dimensions - Overall Dia (in): 33.27
- Inflated Dimensions - Overall Width (in): 11.50
-
Approved Rim Width Range (in): 8.5-(9.0)-10.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3195 @ 80
- Weight: 63.83
Technical specs are subject to change without notice. LT tires with a "C" load range have a 6-ply rating. LT tires with a "D" load range have an 8-ply rating. LT Tires with an "E" load range have a 10-ply rating. LT Tires with an "F" load range have a 12-ply rating. *Indicates Extra Load (XL)

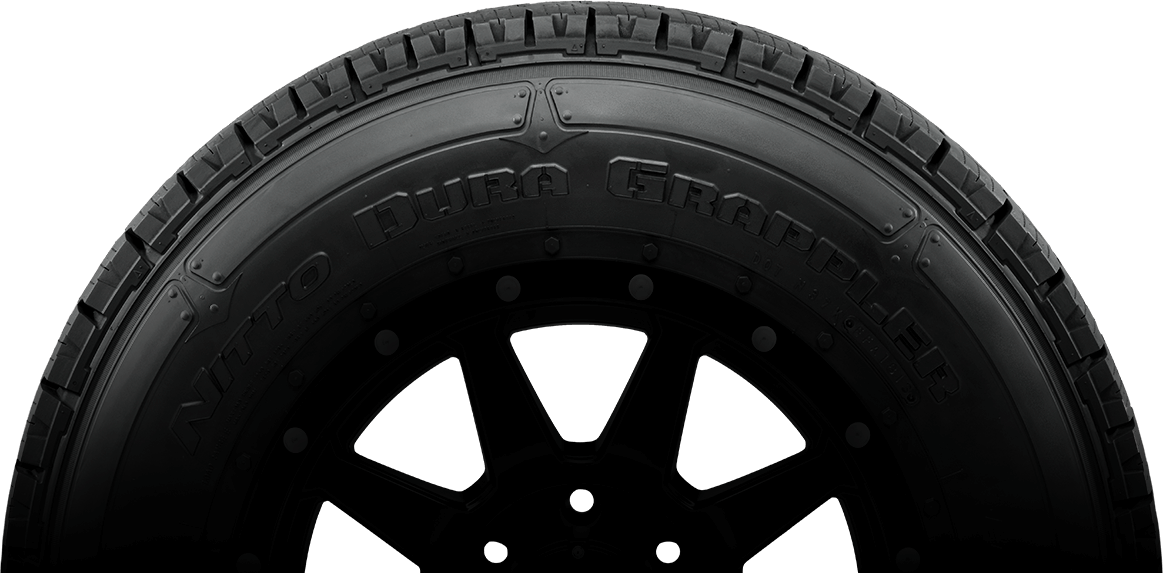

Dura Grappler
Highway Terrain Tire
The Dura Grappler® highway terrain tire was engineered for commercial grade on-road performance and longevity for your truck or SUV. Suitable for a wide variety of light trucks.
UTQG TREADWEAR
P-Metric and Metric Sizes Only: 600
P-Metric and Metric Sizes Only: 600
TRACTION:
A
TEMPERATURE:
B
Find a Store
Overall ratings
PERFORMANCE RATINGS
-
Off-Road Performance is a 1.5 out of 51.5 -
Dry Performance is a 4 out of 54 -
Wet Performance is a 4 out of 54 -
Quietness is a 5 out of 55 -
Ride Comfort is a 4 out of 54
UTQG TIRE RATINGS
-
P-Metric and Metric Sizes Only Treadwear:600
-
TRACTION:A
-
TEMPERATURE:B
