Factory Tire Size:
Indicates Fits Your Vehicle Indicates Fits Your Rear Tire Size
Sizes & Specs
WHEEL DIAMETER
| Tire Size |
Stock Number |
Tread Depth(1/32 in) |
Overall Dia (in)Inflated Dimensions | Overall Width (in)Inflated Dimensions | Approved Rim Width RangeMin-(Measuring)-Max (in) |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| 33x13.50R15LT C 109Q | 200650 | 21.0 | 33.07 | 13.94 | 9.5-(11.0)-12.0 | 2270 @ 35 | 78.39 |
| 35x14.50R15LT C 116Q | 200580 | 21.0 | 34.80 | 14.57 | 10.0-(11.5)-13.0 | 2755 @ 35 | 81.85 |
| 38x15.50R15LT C 123P | 200630 | 21.0 | 37.64 | 15.55 | 10.0-(12.5)-13.0 | 3415 @ 35 | 108.40 |
| Tire Size |
Stock Number |
Tread Depth(1/32 in) |
Overall Dia (in)Inflated Dimensions | Overall Width (in)Inflated Dimensions | Approved Rim Width RangeMin-(Measuring)-Max (in) |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| LT305/70R16 E 124/121P | 201040 | 19.7 | 33.07 | 12.01 | 8.0-(9.0)-10.0 | 3525 @ 65 | 66.87 |
| LT315/75R16 E 127/124P | 201050 | 20.7 | 34.96 | 12.87 | 8.0-(8.5)-10.5 | 3860 @ 65 | 80.74 |
| LT385/70R16 D 130Q | 201060 | 21.0 | 37.72 | 15.35 | 10.0-(11.5)-13.0 | 4190 @ 50 | 101.05 |
| Tire Size |
Stock Number |
Tread Depth(1/32 in) |
Overall Dia (in)Inflated Dimensions | Overall Width (in)Inflated Dimensions | Approved Rim Width RangeMin-(Measuring)-Max (in) |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| 33x12.50R17LT E 120Q | 200760 | 21.0 | 32.95 | 12.68 | 8.5-(10.0)-11.0 | 3085 @ 65 | 72.27 |
| 35x12.50R17LT E 125P | 200670 | 21.0 | 34.84 | 13.19 | 8.0-(10.0)-10.5 | 3640 @ 65 | 79.05 |
| 37x13.50R17LT E 131P | 200600 | 21.0 | 37.05 | 14.57 | 9.0-(11.0)-11.5 | 4300 @ 65 | 97.00 |
| 40x13.50R17LT D 131Q | 200770 | 21.0 | 39.72 | 14.57 | 9.0-(11.0)-11.5 | 4300 @ 50 | 111.01 |
| Tire Size |
Stock Number |
Tread Depth(1/32 in) |
Overall Dia (in)Inflated Dimensions | Overall Width (in)Inflated Dimensions | Approved Rim Width RangeMin-(Measuring)-Max (in) |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| 33x12.50R18LT E 118Q | 200690 | 21.0 | 32.95 | 12.68 | 8.5-(10.0)-11.0 | 2910 @ 65 | 73.83 |
| 35x12.50R18LT E 123Q | 200550 | 21.0 | 35.04 | 13.39 | 8.5-(10.0)-11.0 | 3415 @ 65 | 80.64 |
| 37x13.50R18LT D 124P | 200660 | 21.0 | 37.05 | 14.17 | 9.0-(11.0)-11.5 | 3525 @ 50 | 90.48 |
| 38x15.50R18LT D 128Q | 200500 | 21.0 | 37.72 | 16.30 | 11.0-(12.5)-14.0 | 3970 @ 50 | 99.04 |
| Tire Size |
Stock Number |
Tread Depth(1/32 in) |
Overall Dia (in)Inflated Dimensions | Overall Width (in)Inflated Dimensions | Approved Rim Width RangeMin-(Measuring)-Max (in) |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| 33x12.50R20LT E 114Q | 200680 | 21.0 | 32.95 | 12.80 | 8.5-(10.0)-11.0 | 2600 @ 65 | 71.03 |
| 35x12.50R20LT E 121Q | 200570 | 21.0 | 35.04 | 13.00 | 8.5-(10.0)-11.0 | 3195 @ 65 | 77.45 |
| 37x13.50R20LT E 127Q | 200540 | 21.0 | 37.05 | 14.13 | 9.5-(11.0)-12.0 | 3860 @ 65 | 87.66 |
| 38x15.50R20LT D 125Q | 200510 | 21.0 | 37.72 | 16.30 | 11.0-(12.0)-14.0 | 3640 @ 50 | 100.70 |
| 40x15.50R20LT D 130Q | 200720 | 21.0 | 39.72 | 15.91 | 11.0-(12.5)-14.0 | 4190 @ 50 | 108.23 |
| Tire Size |
Stock Number |
Tread Depth(1/32 in) |
Overall Dia (in)Inflated Dimensions | Overall Width (in)Inflated Dimensions | Approved Rim Width RangeMin-(Measuring)-Max (in) |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| 37x13.50R22LT E 123Q | 200530 | 21.0 | 37.05 | 14.13 | 9.5-(11.0)-12.0 | 3415 @ 65 | 84.05 |
| 40x15.50R22LT D 127Q | 200520 | 21.0 | 39.72 | 16.30 | 11.0-(12.0)-14.0 | 3860 @ 50 | 111.38 |
Technical specs are subject to change without notice. LT tires with a "C" load range have a 6-ply rating. LT tires with a "D" load range have an 8-ply rating. LT Tires with an "E" load range have a 10-ply rating. LT Tires with an "F" load range have a 12-ply rating. *Indicates Extra Load (XL)
Sizes and Specs
Factory Tire Size:
Indicates Fits Your Vehicle Indicates Fits Your Rear Tire Size
-
33x13.50R15LT C 109Q
- Stock Number: 200650
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 33.07
- Inflated Dimensions - Overall Width (in): 13.94
-
Approved Rim Width Range (in): 9.5-(11.0)-12.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2270 @ 35
- Weight: 78.39
-
35x14.50R15LT C 116Q
- Stock Number: 200580
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 34.80
- Inflated Dimensions - Overall Width (in): 14.57
-
Approved Rim Width Range (in): 10.0-(11.5)-13.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2755 @ 35
- Weight: 81.85
-
38x15.50R15LT C 123P
- Stock Number: 200630
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 37.64
- Inflated Dimensions - Overall Width (in): 15.55
-
Approved Rim Width Range (in): 10.0-(12.5)-13.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3415 @ 35
- Weight: 108.40
-
LT305/70R16 E 124/121P
- Stock Number: 201040
- Tread Depth (1/32 in): 19.7
- Inflated Dimensions - Overall Dia (in): 33.07
- Inflated Dimensions - Overall Width (in): 12.01
-
Approved Rim Width Range (in): 8.0-(9.0)-10.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3525 @ 65
- Weight: 66.87
-
LT315/75R16 E 127/124P
- Stock Number: 201050
- Tread Depth (1/32 in): 20.7
- Inflated Dimensions - Overall Dia (in): 34.96
- Inflated Dimensions - Overall Width (in): 12.87
-
Approved Rim Width Range (in): 8.0-(8.5)-10.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3860 @ 65
- Weight: 80.74
-
LT385/70R16 D 130Q
- Stock Number: 201060
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 37.72
- Inflated Dimensions - Overall Width (in): 15.35
-
Approved Rim Width Range (in): 10.0-(11.5)-13.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 4190 @ 50
- Weight: 101.05
-
33x12.50R17LT E 120Q
- Stock Number: 200760
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 32.95
- Inflated Dimensions - Overall Width (in): 12.68
-
Approved Rim Width Range (in): 8.5-(10.0)-11.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3085 @ 65
- Weight: 72.27
-
35x12.50R17LT E 125P
- Stock Number: 200670
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 34.84
- Inflated Dimensions - Overall Width (in): 13.19
-
Approved Rim Width Range (in): 8.0-(10.0)-10.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3640 @ 65
- Weight: 79.05
-
37x13.50R17LT E 131P
- Stock Number: 200600
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 37.05
- Inflated Dimensions - Overall Width (in): 14.57
-
Approved Rim Width Range (in): 9.0-(11.0)-11.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 4300 @ 65
- Weight: 97.00
-
40x13.50R17LT D 131Q
- Stock Number: 200770
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 39.72
- Inflated Dimensions - Overall Width (in): 14.57
-
Approved Rim Width Range (in): 9.0-(11.0)-11.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 4300 @ 50
- Weight: 111.01
-
33x12.50R18LT E 118Q
- Stock Number: 200690
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 32.95
- Inflated Dimensions - Overall Width (in): 12.68
-
Approved Rim Width Range (in): 8.5-(10.0)-11.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2910 @ 65
- Weight: 73.83
-
35x12.50R18LT E 123Q
- Stock Number: 200550
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 35.04
- Inflated Dimensions - Overall Width (in): 13.39
-
Approved Rim Width Range (in): 8.5-(10.0)-11.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3415 @ 65
- Weight: 80.64
-
37x13.50R18LT D 124P
- Stock Number: 200660
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 37.05
- Inflated Dimensions - Overall Width (in): 14.17
-
Approved Rim Width Range (in): 9.0-(11.0)-11.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3525 @ 50
- Weight: 90.48
-
38x15.50R18LT D 128Q
- Stock Number: 200500
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 37.72
- Inflated Dimensions - Overall Width (in): 16.30
-
Approved Rim Width Range (in): 11.0-(12.5)-14.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3970 @ 50
- Weight: 99.04
-
33x12.50R20LT E 114Q
- Stock Number: 200680
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 32.95
- Inflated Dimensions - Overall Width (in): 12.80
-
Approved Rim Width Range (in): 8.5-(10.0)-11.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2600 @ 65
- Weight: 71.03
-
35x12.50R20LT E 121Q
- Stock Number: 200570
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 35.04
- Inflated Dimensions - Overall Width (in): 13.00
-
Approved Rim Width Range (in): 8.5-(10.0)-11.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3195 @ 65
- Weight: 77.45
-
37x13.50R20LT E 127Q
- Stock Number: 200540
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 37.05
- Inflated Dimensions - Overall Width (in): 14.13
-
Approved Rim Width Range (in): 9.5-(11.0)-12.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3860 @ 65
- Weight: 87.66
-
38x15.50R20LT D 125Q
- Stock Number: 200510
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 37.72
- Inflated Dimensions - Overall Width (in): 16.30
-
Approved Rim Width Range (in): 11.0-(12.0)-14.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3640 @ 50
- Weight: 100.70
-
40x15.50R20LT D 130Q
- Stock Number: 200720
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 39.72
- Inflated Dimensions - Overall Width (in): 15.91
-
Approved Rim Width Range (in): 11.0-(12.5)-14.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 4190 @ 50
- Weight: 108.23
-
37x13.50R22LT E 123Q
- Stock Number: 200530
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 37.05
- Inflated Dimensions - Overall Width (in): 14.13
-
Approved Rim Width Range (in): 9.5-(11.0)-12.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3415 @ 65
- Weight: 84.05
-
40x15.50R22LT D 127Q
- Stock Number: 200520
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 39.72
- Inflated Dimensions - Overall Width (in): 16.30
-
Approved Rim Width Range (in): 11.0-(12.0)-14.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 3860 @ 50
- Weight: 111.38
Technical specs are subject to change without notice. LT tires with a "C" load range have a 6-ply rating. LT tires with a "D" load range have an 8-ply rating. LT Tires with an "E" load range have a 10-ply rating. LT Tires with an "F" load range have a 12-ply rating. *Indicates Extra Load (XL)
Mud Grappler
Extreme Mud Terrain Tire
The Mud Grappler® extreme mud terrain tires provide traction over various off-road terrain, whether it’s dirt, rocks or mud.
Find a Store
No matter the obstacle

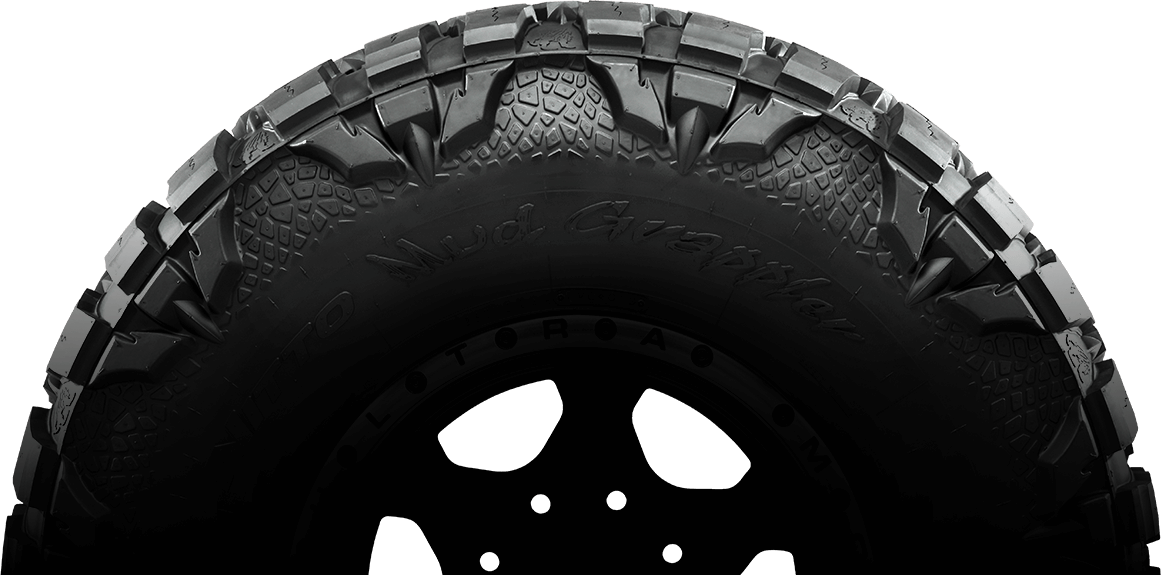

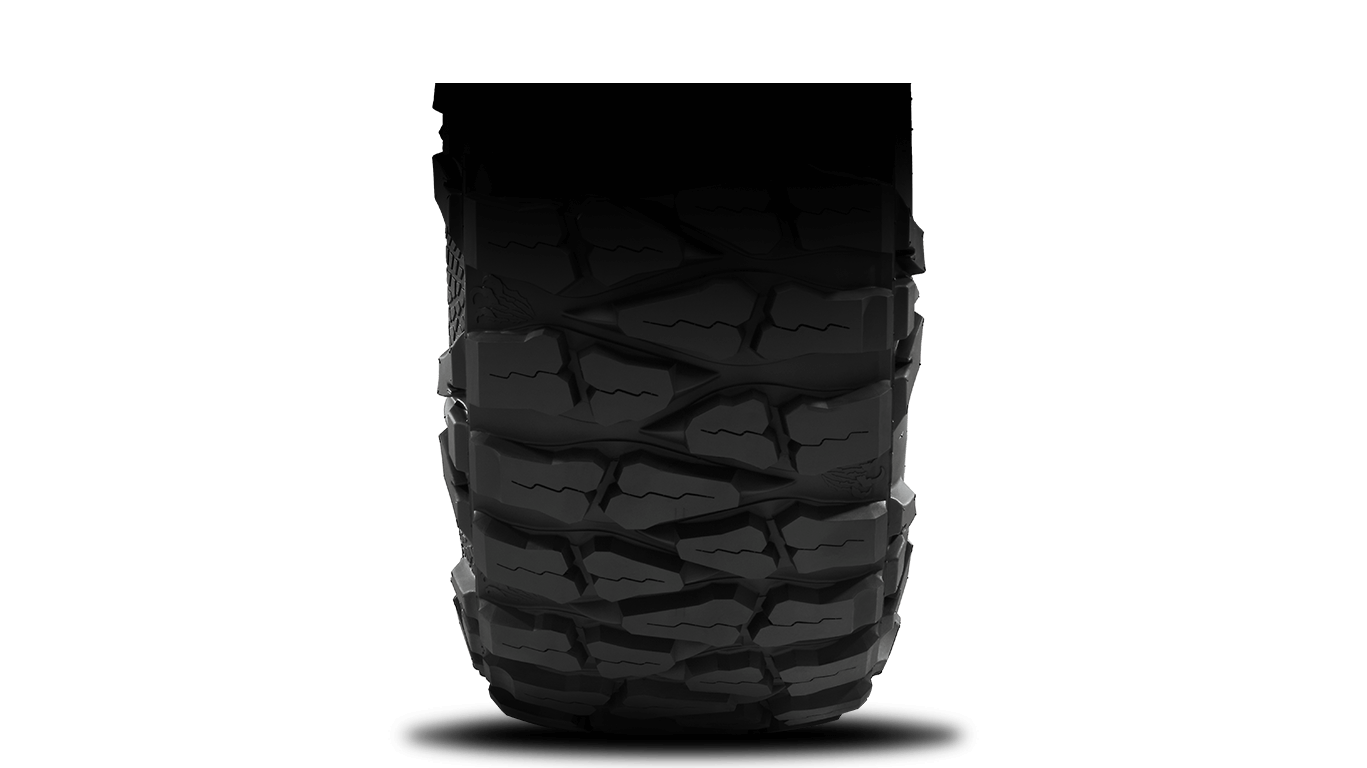

Massive side-lugs, 3-ply sidewall construction, and large lug design add more protection when facing the most challenging off-road obstacles.
Overall ratings
PERFORMANCE RATINGS
-
Off-Road Performance is a 5 out of 55 -
Dry Performance is a 2.5 out of 52.5 -
Wet Performance is a 2.5 out of 52.5 -
Quietness is a 1 out of 51 -
Ride Comfort is a 1.5 out of 51.5
