WHEEL DIAMETER

Tire Size	Stock Number	Tread Depth(1/32 in)	Overall Dia (in)Inflated Dimensions	Overall Width (in)Inflated Dimensions	Approved Rim Width RangeMin-(Measuring)-Max (in)	Maximum Load (lbs.) @ Press. (PSI)	Weight (lbs)
LT295/75R16 E 128/125R	219050	16.6	33.39	11.57	7.5-(8.0)-10.0	3970 @ 80	61.71
LT305/70R16 F 128/125R	218910	16.3	32.83	12.24	8.0-(9.0)-10.0	3970 @ 80	65.87
LT315/75R16 E 127/124R	218920	16.3	34.57	12.32	8.0-(8.5)-10.5	3860 @ 65	70.33
33x11.50R16LT E 124R	219150	16.9	32.52	11.42	7.5-(9.0)-10.0	3525 @ 80	59.39
35x11.50R16LT D 125R	218950	16.9	34.53	11.42	7.5-(9.0)-10.0	3640 @ 65	68.34

Tire Size	Stock Number	Tread Depth(1/32 in)	Overall Dia (in)Inflated Dimensions	Overall Width (in)Inflated Dimensions	Approved Rim Width RangeMin-(Measuring)-Max (in)	Maximum Load (lbs.) @ Press. (PSI)	Weight (lbs)
LT255/80R17 E 123/120R	218750	15.6	33.07	10.04	6.5-(7.0)-8.5	3415 @ 80	56.06
LT265/70R17 E 123/120S	218740	15.7	31.65	10.71	7.0-(8.0)-9.0	3415 @ 80	50.97
285/70R17 116T	218810	13.6	32.76	11.50	7.5-(8.5)-9.5	2756 @ 44	48.94
LT285/70R17 E 126/123S	218670	16.0	32.76	11.50	7.5-(8.5)-9.5	3750 @ 80	54.59
LT285/75R17 E 128/125R	218680	16.0	33.86	11.26	7.5-(8.0)-9.5	3970 @ 80	61.29
LT295/70R17 E 128/125R	218690	16.1	33.31	11.77	7.5-(8.5)-10.0	3970 @ 80	62.35
LT305/70R17 E 125/122R	218700	16.3	33.86	12.24	8.0-(9.0)-10.0	3640 @ 65	64.40
315/70R17 116T	218800	14.0	34.41	12.72	8.0-(9.5)-10.5	2756 @ 44	64.13
LT315/70R17 E 126/123R	218710	16.3	34.41	12.72	8.0-(9.5)-10.5	3750 @ 65	67.37
33x11.50R17LT D 119S	218770	16.9	32.52	11.42	8.0-(9.0)-10.5	3000 @ 65	57.30
35x11.50R17LT C 118R	219090	16.9	34.53	11.42	7.5-(9.0)-10.0	2910 @ 50	64.44
37x11.50R17LT D 128R	218650	16.9	36.54	11.42	7.5-(9.0)-10.0	3970 @ 65	70.61
33x12.50R17LT F 124R	218660	16.9	32.52	12.52	8.5-(10.0)-11.0	3525 @ 80	63.54
35x12.50R17LT E 125R	218640	16.9	34.53	12.52	8.0-(10.0)-10.5	3640 @ 65	67.24
37x12.50R17LT D 124R	218560	16.9	36.54	12.52	8.5-(10.0)-10.5	3525 @ 50	75.57
37x13.50R17LT D 125R	219020	16.9	36.54	13.58	9.0-(11.0)-11.5	3640 @ 50	81.57

Tire Size	Stock Number	Tread Depth(1/32 in)	Overall Dia (in)Inflated Dimensions	Overall Width (in)Inflated Dimensions	Approved Rim Width RangeMin-(Measuring)-Max (in)	Maximum Load (lbs.) @ Press. (PSI)	Weight (lbs)
LT275/70R18 E 125/122S	218730	15.9	33.19	10.98	7.0-(8.0)-9.0	3640 @ 80	54.34
285/65R18 116T XL	219230	13.6	32.56	11.50	8.0-(8.5)-10.0	2756 @ 50	47.02
LT285/65R18 E 125/122R	218590	16.0	32.56	11.50	8.5-(8.5)-10.0	3640 @ 80	55.95
LT285/70R18 E 127/124R	218790	16.0	33.74	11.50	7.5-(8.5)-9.5	3860 @ 80	59.50
LT285/75R18 E 129/126R	218600	16.0	34.84	11.26	7.5-(8.0)-9.5	4080 @ 80	63.65
295/70R18 116S	218880	13.7	34.29	11.77	7.5-(8.5)-10.0	2756 @ 44	52.49
LT295/70R18 E 129/126R	218610	16.1	34.29	11.77	7.5-(8.5)-10.0	4080 @ 80	63.60
305/60R18 116S	218840	13.9	32.40	12.24	8.5-(9.0)-11.0	2756 @ 44	49.91
LT305/65R18 F 128/125R	218720	16.3	33.58	12.24	9.0-(9.0)-11.0	3970 @ 80	65.46
LT305/70R18 D 120/117R	218760	16.3	34.84	12.24	8.0-(9.0)-10.0	3085 @ 50	67.97
LT325/60R18 E 124/121S	218620	16.4	33.35	13.03	9.5-(9.5)-11.5	3525 @ 65	64.26
LT325/65R18 E 127/124R	218630	16.4	34.61	13.03	9.5-(9.5)-11.5	3860 @ 65	71.08
33x11.50R18LT E 122S	219030	16.9	32.52	11.42	8.0-(9.0)-10.5	3305 @ 80	56.92
35x12.50R18LT F 128R	218570	16.9	34.53	12.52	8.5-(10.0)-11.0	3970 @ 80	70.33
37x12.50R18LT E 128R	218580	16.9	36.54	12.52	8.0-(10.0)-10.5	3970 @ 65	74.08

Tire Size	Stock Number	Tread Depth(1/32 in)	Overall Dia (in)Inflated Dimensions	Overall Width (in)Inflated Dimensions	Approved Rim Width RangeMin-(Measuring)-Max (in)	Maximum Load (lbs.) @ Press. (PSI)	Weight (lbs)
265/50R20 111T XL	218820	13.4	30.47	10.91	7.5-(8.5)-9.5	2403 @ 50	40.10
LT265/60R20 E 121/118S	218550	15.7	32.52	10.71	8.0-(8.0)-9.5	3195 @ 80	54.01
275/55R20 117T XL	218010	13.5	31.89	11.18	7.5-(8.5)-9.5	2833 @ 50	44.31
LT275/55R20 E 120/117S	218260	15.9	31.89	11.18	8.0-(8.5)-9.5	3085 @ 80	53.76
275/60R20 116S XL	218380	13.5	32.99	10.98	7.5-(8.0)-9.5	2756 @ 50	46.98
LT275/60R20 E 123/120S	218300	15.9	32.99	10.98	8.0-(8.0)-9.5	3415 @ 80	55.03
275/65R20 116T	218460	13.5	34.09	10.98	7.5-(8.0)-9.5	2756 @ 44	47.53
LT275/65R20 E 126/123S	218000	15.9	34.09	10.98	8.0-(8.0)-9.5	3750 @ 80	58.60
285/50R20 116T XL	218430	13.6	31.26	11.69	8.0-(9.0)-10.0	2756 @ 50	44.86
285/55R20 116T XL	218830	13.6	32.36	11.69	8.0-(9.0)-10.0	2756 @ 50	47.00
LT285/55R20 E 122/119S	218230	16.0	32.36	11.69	8.5-(9.0)-10.0	3305 @ 80	56.66
LT285/60R20 E 125/122S	218310	16.0	33.46	11.50	8.5-(8.5)-10.0	3640 @ 80	59.88
LT285/65R20 E 127/124S	218180	16.0	34.57	11.50	8.5-(8.5)-10.0	3860 @ 80	60.30
LT295/55R20 E 123/120S	218190	16.1	32.76	12.17	8.5-(9.5)-10.5	3415 @ 80	60.07
LT295/60R20 E 126/123S	218170	16.1	33.94	11.77	8.0-(8.5)-10.0	3750 @ 80	60.53
LT295/65R20 E 129/126S	218210	16.1	35.12	11.77	8.5-(8.5)-10.5	4080 @ 80	64.93
305/50R20 120S XL	218420	13.9	32.05	12.44	8.5-(9.5)-11.0	3086 @ 50	49.98
305/55R20 116S	218400	13.9	33.23	12.44	8.5-(9.5)-11.0	2756 @ 44	51.37
LT305/55R20 F 125/122S	218250	16.3	33.23	12.44	9.0-(9.5)-11.0	3640 @ 80	65.79
315/60R20 116S	218360	14.0	34.88	12.72	8.5-(9.5)-11.0	2756 @ 44	57.23
LT315/60R20 E 125/122S	218320	16.3	34.88	12.72	9.5-(9.5)-11.0	3640 @ 65	69.84
LT325/60R20 E 126/123S	218220	16.4	35.35	13.03	9.5-(9.5)-11.5	3750 @ 65	71.10
33x11.50R20LT E 118R	219200	16.9	32.52	11.42	8.0-(9.0)-10.5	2910 @ 80	56.75
34x11.50R20LT E 121R	218330	16.9	33.50	11.42	8.0-(9.0)-10.5	3195 @ 80	61.88
35x11.50R20LT E 124R	218090	16.9	34.53	11.42	8.0-(9.0)-10.5	3525 @ 80	60.65
37x11.50R20LT E 128R	219220	16.9	36.54	11.42	7.5-(9.0)-10.0	3970 @ 80	73.04
33x12.50R20LT F 119R	218050	16.9	32.52	12.52	8.5-(10.0)-11.0	3000 @ 80	62.68
35x12.50R20LT F 125R	218020	16.9	34.53	12.52	8.5-(10.0)-11.0	3640 @ 80	70.35
37x12.50R20LT E 126R	218030	16.9	36.54	12.52	8.5-(10.0)-11.0	3750 @ 65	74.30
35x13.50R20LT F 126R	218110	16.9	34.53	13.58	9.5-(11.0)-12.0	3750 @ 80	76.08
37x13.50R20LT E 127R	218070	16.9	36.54	13.58	9.5-(11.0)-12.0	3860 @ 65	79.19

Tire Size	Stock Number	Tread Depth(1/32 in)	Overall Dia (in)Inflated Dimensions	Overall Width (in)Inflated Dimensions	Approved Rim Width RangeMin-(Measuring)-Max (in)	Maximum Load (lbs.) @ Press. (PSI)	Weight (lbs)
275/50R22 115T XL	219210	13.5	32.87	11.18	7.5-(8.5)-9.5	2679 @ 50	43.70
285/45R22 114H XL	218390	13.6	32.09	11.22	9.0-(9.5)-10.5	2601 @ 50	43.61
LT285/50R22 E 121/118S	218280	16.0	33.27	11.69	8.5-(9.0)-10.0	3195 @ 80	60.38
LT285/55R22 E 124/121S	218270	16.0	34.37	11.69	8.5-(9.0)-10.0	3525 @ 80	61.20
305/40R22 114S XL	218470	13.9	31.61	12.32	10.0-(11.0)-12.0	2601 @ 50	46.94
305/45R22 118S XL	218410	13.9	32.80	11.93	9.5-(10.0)-11.5	2910 @ 50	46.94
305/55R22 116S	218370	13.9	35.24	12.44	8.5-(9.5)-11.0	2756 @ 44	62.02
315/45R22 116S	218450	14.0	33.19	12.40	10.0-(10.5)-12.0	2756 @ 44	50.31
LT325/50R22 F 127S	218290	16.4	34.84	13.23	9.5-(10.0)-11.5	3860 @ 80	75.18
33x12.50R22LT F 114R	218130	16.9	32.52	12.52	8.5-(10.0)-11.0	2600 @ 80	63.88
35x12.50R22LT F 121R	218100	16.9	34.53	12.52	8.5-(10.0)-11.0	3195 @ 80	69.74
37x13.50R22LT F 128R	218060	16.9	36.54	13.58	9.5-(11.0)-12.0	3970 @ 80	78.43

Tire Size	Stock Number	Tread Depth(1/32 in)	Overall Dia (in)Inflated Dimensions	Overall Width (in)Inflated Dimensions	Approved Rim Width RangeMin-(Measuring)-Max (in)	Maximum Load (lbs.) @ Press. (PSI)	Weight (lbs)
LT295/45R24 E 120/117R	218900	16.1	34.49	11.65	9.5-(10.0)-11.0	3085 @ 80	69.00
305/35R24 112S XL	218440	13.9	32.44	12.32	10.0-(11.0)-12.0	2469 @ 50	53.13
315/45R24 116S	218350	14.0	35.20	12.40	10.0-(10.5)-12.0	2756 @ 44	59.30
LT315/50R24 F 127/124S	218340	16.3	36.46	12.91	9.5-(10.0)-11.0	3860 @ 80	79.76
LT325/45R24 F 124R	218930	16.4	35.51	12.83	10.0-(11.0)-12.0	3525 @ 80	78.29
35x12.50R24LT F 116R	218150	16.9	34.53	12.44	10.0-(10.5)-12.0	2755 @ 80	73.44
37x13.50R24LT F 124R	218140	16.9	36.54	13.58	9.5-(11.0)-12.0	3525 @ 80	82.59

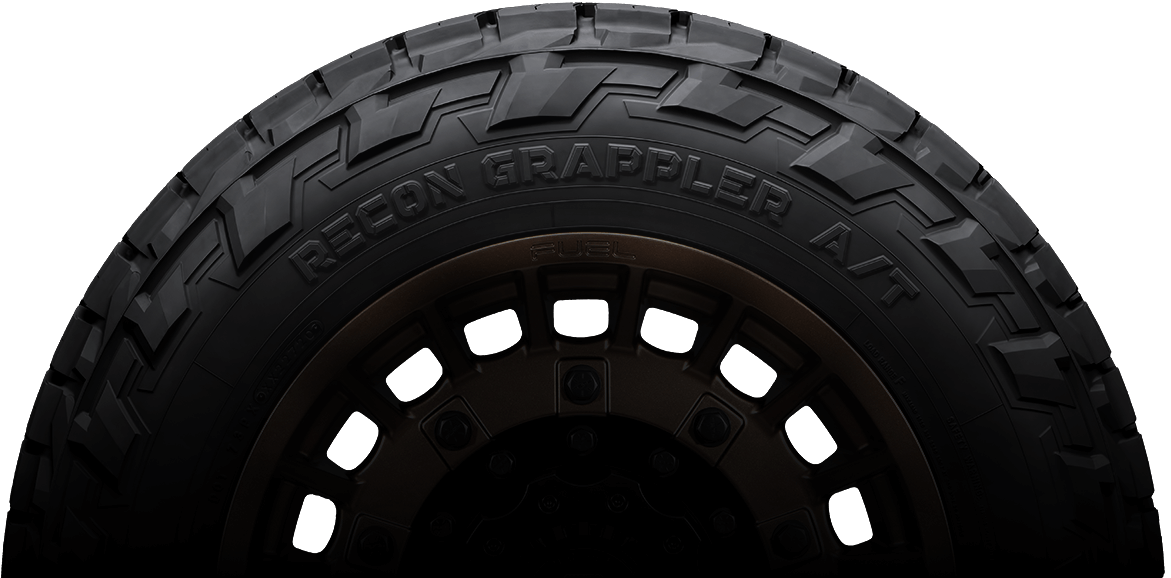

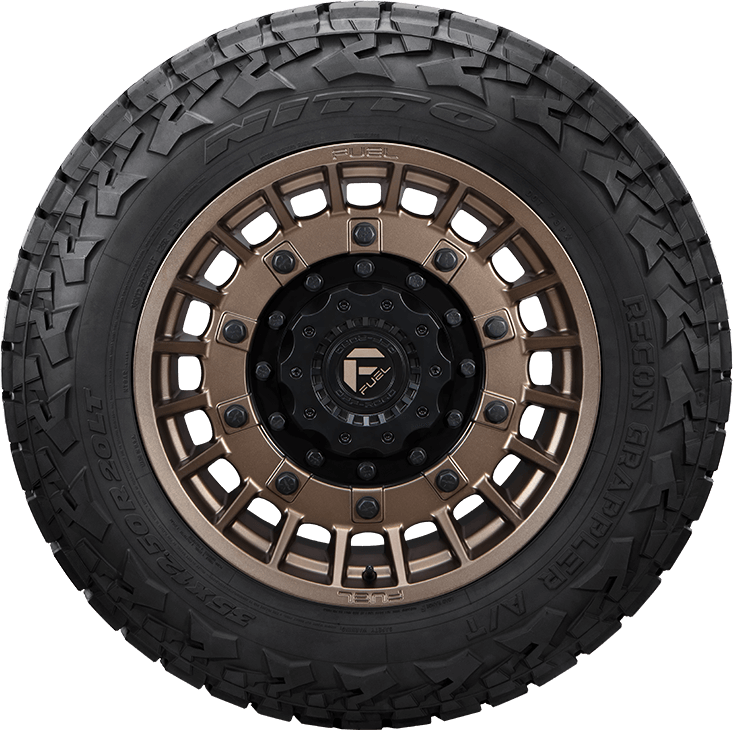

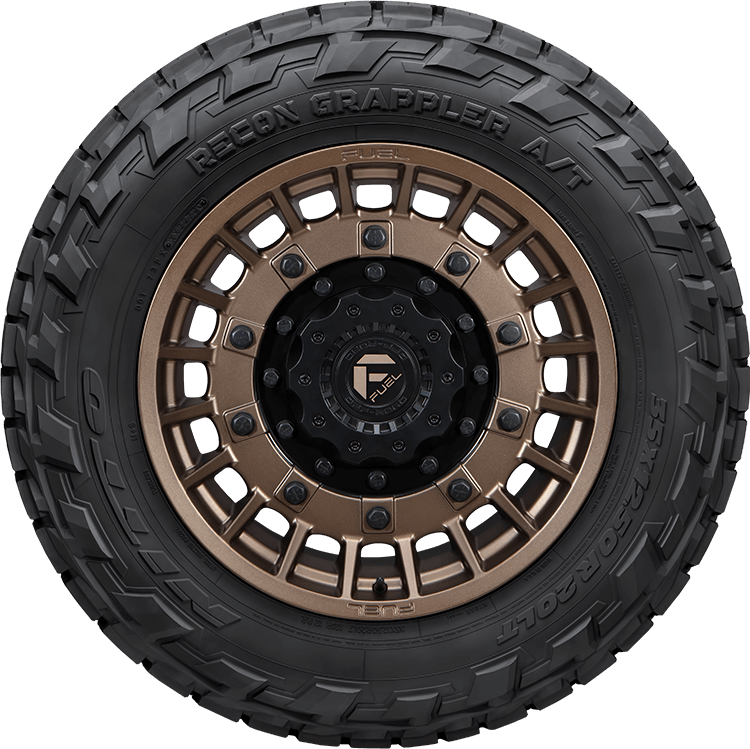

Recon Grappler

All-terrain light truck tire

The Recon Grappler^® A/T combines versatility and distinctive design into an all-terrain tire that stands out from the crowd.

UTQG TREADWEAR
S,T Speed Rating: 600

TRACTION: A

TEMPERATURE: B

UTQG TREADWEAR
H Speed Rating: 600

TRACTION: A

TEMPERATURE: A

Find a Store

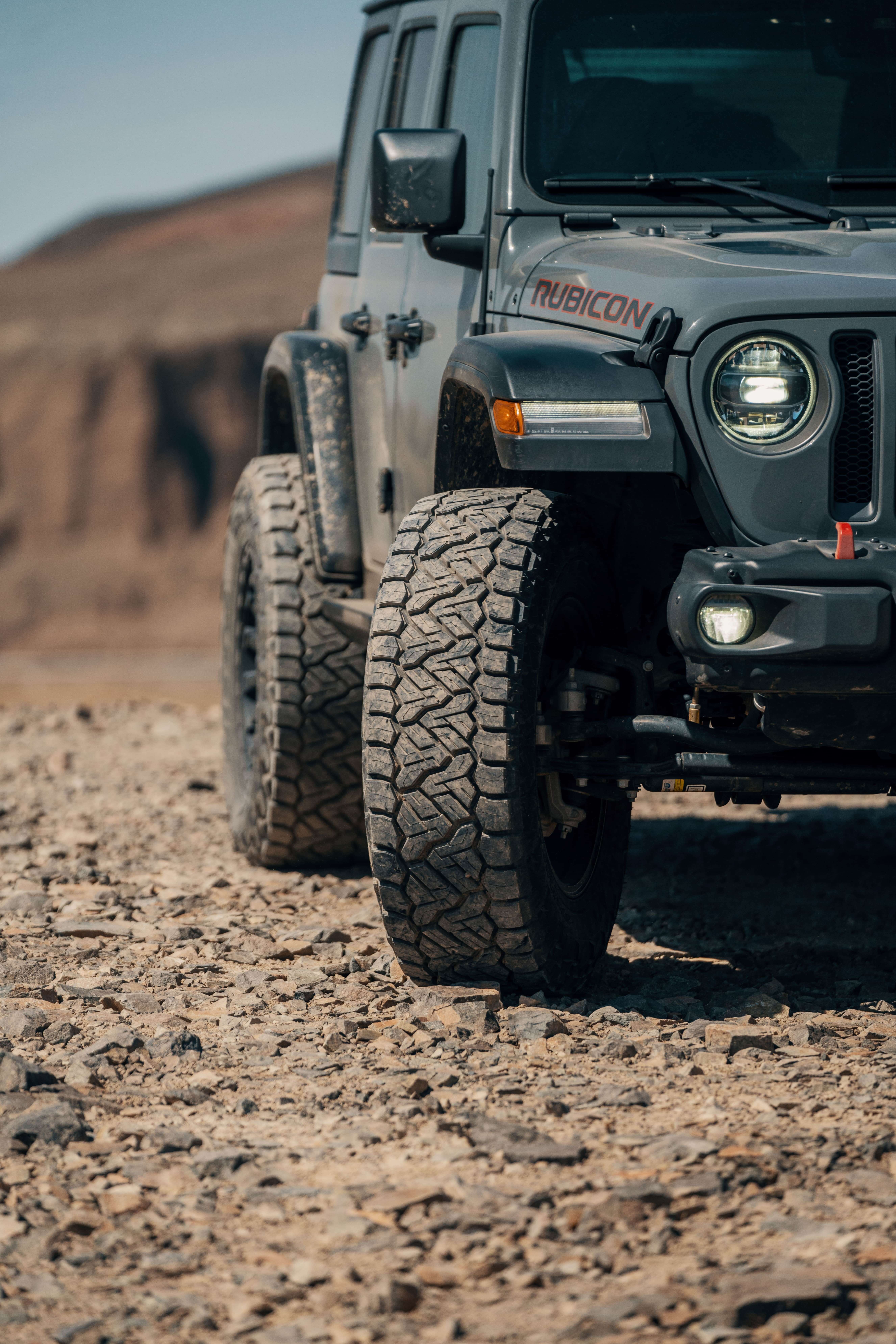

Lead the Pack.

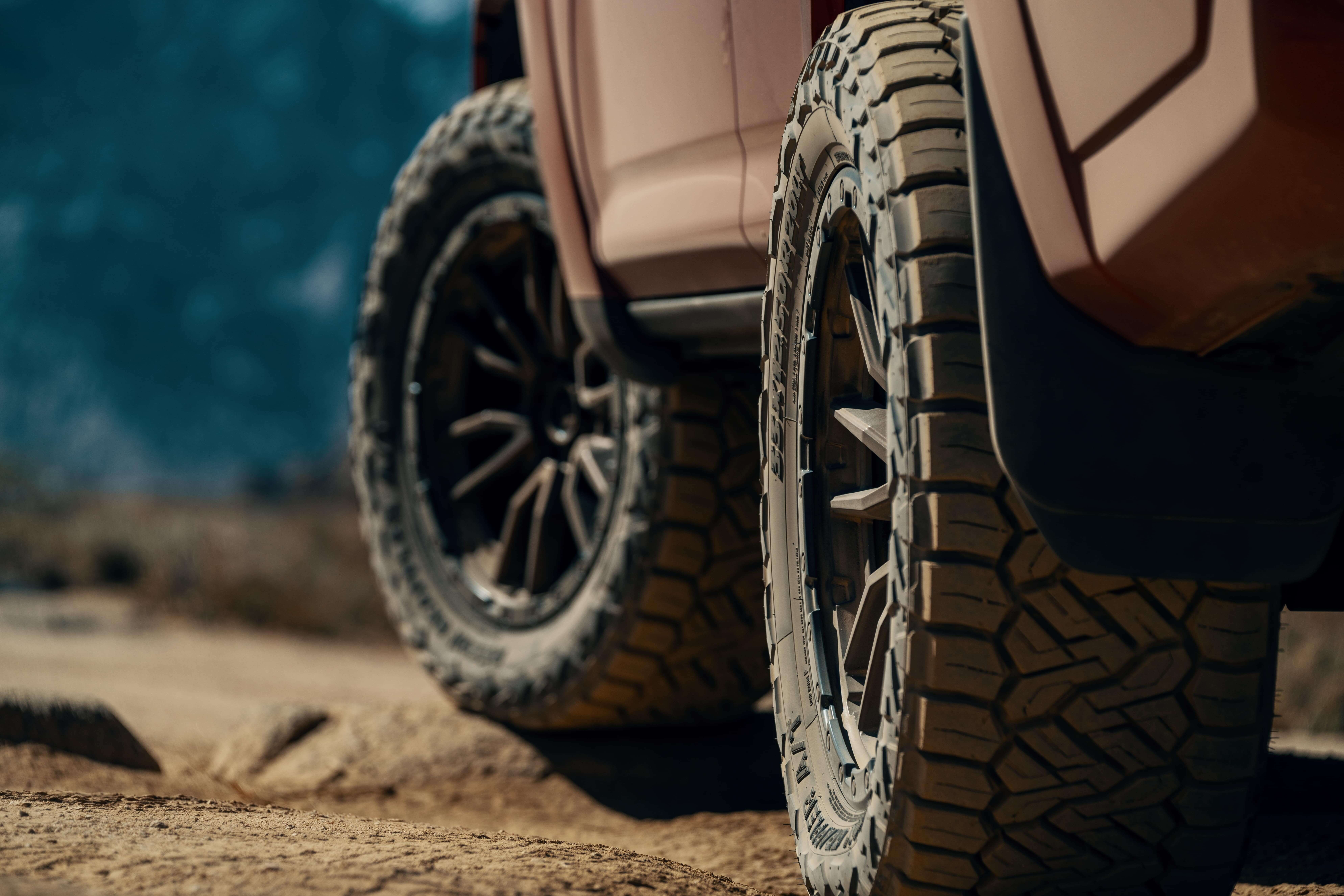

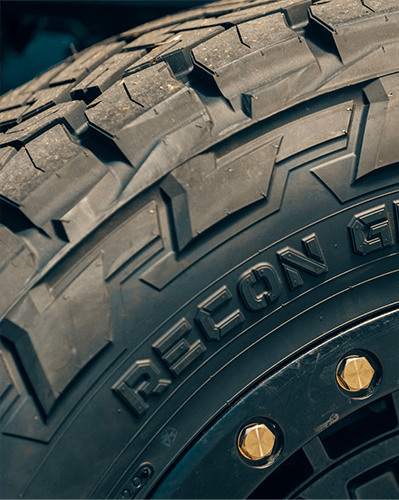

With its tall, prominent sidewall lugs and aggressive tread design proving capable off-road performance and a comfortable highway ride, the Recon Grappler^® is made to keep you out front.
