WHEEL DIAMETER

Tire Size	Stock Number	Tread Depth(1/32 in)	Overall Dia (in)Inflated Dimensions	Overall Width (in)Inflated Dimensions	Approved Rim Width RangeMin-(Measuring)-Max (in)	Maximum Load (lbs.) @ Press. (PSI)	Weight (lbs)
265/70R16 116T XL	217930	13.5	30.63	10.71	7.0-(8.0)-9.0	2756 @ 50	46.74
265/75R16 116T	217890	13.5	31.65	10.51	7.0-(7.5)-9.0	2756 @ 44	48.94
LT265/75R16 E 123/120Q	217650	16.4	31.65	10.51	7.0-(7.5)-9.0	3415 @ 80	56.37
LT285/75R16 E 126/123Q	217620	16.4	32.83	11.26	7.5-(8.0)-9.5	3750 @ 80	61.66
LT295/75R16 E 128/125Q	217950	16.4	33.39	11.57	7.5-(8.0)-10.0	3970 @ 80	68.34
LT305/70R16 E 124/121Q	217910	16.4	32.83	12.24	8.0-(9.0)-10.0	3525 @ 65	68.12
LT315/75R16 E 127/124Q	217870	16.4	34.57	12.32	8.0-(8.5)-10.5	3860 @ 65	72.95

Tire Size	Stock Number	Tread Depth(1/32 in)	Overall Dia (in)Inflated Dimensions	Overall Width (in)Inflated Dimensions	Approved Rim Width RangeMin-(Measuring)-Max (in)	Maximum Load (lbs.) @ Press. (PSI)	Weight (lbs)
245/65R17 111T XL	218860	13.5	29.53	9.76	7.0-(7.0)-8.5	2403 @ 50	36.86
LT255/80R17 E 121/118Q	217380	16.4	33.31	10.04	6.5-(7.0)-8.5	3195 @ 80	54.96
265/65R17 116T XL	217810	13.5	30.55	10.71	7.5-(8.0)-9.5	2756 @ 50	40.21
265/70R17 115T	217940	13.5	31.65	10.71	7.0-(8.0)-9.0	2679 @ 44	43.41
LT265/70R17 E 121/118Q	217100	16.4	31.65	10.71	7.0-(8.0)-9.0	3195 @ 80	54.48
LT275/70R17 E 121/118Q	217990	16.5	32.20	10.98	7.0-(8.0)-9.0	3195 @ 80	54.04
285/70R17 116Q	217710	13.5	32.76	11.50	7.5-(8.5)-9.5	2756 @ 44	48.74
LT285/70R17 C 116/113Q	217010	16.4	32.76	11.50	7.5-(8.5)-9.5	2755 @ 50	57.89
LT285/70R17 E 121/118Q	217000	16.4	32.76	11.50	7.5-(8.5)-9.5	3195 @ 80	57.89
LT285/75R17 C 117/114Q	217210	16.4	33.86	11.26	7.5-(8.0)-9.5	2835 @ 50	65.08
LT285/75R17 E 121/118Q	217200	16.4	33.86	11.26	7.5-(8.0)-9.5	3195 @ 80	64.40
LT295/70R17 E 121/118Q	217070	16.4	33.31	11.77	7.5-(8.5)-10.0	3195 @ 80	64.72
LT305/70R17 E 121/118Q	217080	16.4	33.86	12.24	8.0-(9.0)-10.0	3195 @ 65	68.57
LT315/70R17 E 121/118Q	217530	16.4	34.41	12.72	8.0-(9.5)-10.5	3195 @ 65	70.83
35x11.50R17LT E 128Q	218850	18.3	34.76	11.42	7.5-(9.0)-10.0	3970 @ 80	66.29
38x11.50R17LT D 128Q	219120	18.3	37.76	11.42	7.5-(9.0)-10.0	3970 @ 65	75.40
33x12.50R17LT E 120Q	217180	18.3	32.76	12.52	8.5-(10.0)-11.0	3085 @ 65	69.32
35x12.50R17LT E 121Q	217020	18.3	34.76	12.52	8.5-(10.0)-11.0	3195 @ 65	75.45
37x12.50R17LT D 124Q	217050	18.3	36.77	12.52	8.5-(10.0)-10.5	3525 @ 50	81.48
38x12.50R17LT C 118Q	217980	18.3	37.76	12.52	8.0-(10.0)-10.5	2910 @ 35	81.90
37x13.50R17LT E 121Q	217450	18.3	36.77	13.58	9.0-(11.0)-11.5	3195 @ 65	87.04

Tire Size	Stock Number	Tread Depth(1/32 in)	Overall Dia (in)Inflated Dimensions	Overall Width (in)Inflated Dimensions	Approved Rim Width RangeMin-(Measuring)-Max (in)	Maximum Load (lbs.) @ Press. (PSI)	Weight (lbs)
255/55R18 109T XL	217850	13.5	29.02	10.43	7.0-(8.0)-9.0	2271 @ 50	39.35
255/70R18 116T XL	217690	13.5	32.09	10.24	6.5-(7.5)-8.5	2756 @ 50	42.77
265/60R18 114S XL	217700	13.5	30.51	10.71	7.5-(8.0)-9.5	2601 @ 50	41.47
265/65R18 116T XL	217820	13.5	31.54	10.71	7.5-(8.0)-9.5	2756 @ 50	43.12
LT265/65R18 E 122/119Q	217470	16.4	31.77	10.71	8.0-(8.0)-9.5	3305 @ 80	52.78
265/70R18 116T	218940	13.5	32.64	10.71	7.0-(8.0)-9.0	2756 @ 44	45.30
LT265/70R18 E 124/121Q	217480	16.4	32.87	10.71	7.0-(8.0)-9.0	3525 @ 80	55.40
275/65R18 116T XL	217730	13.5	32.09	10.98	7.5-(8.0)-9.5	2756 @ 50	45.04
LT275/65R18 E 123/120Q	217090	16.4	32.09	10.98	8.0-(8.0)-9.5	3415 @ 80	56.36
LT275/70R18 E 125/122Q	217160	16.4	33.19	10.98	7.0-(8.0)-9.0	3640 @ 80	58.47
285/60R18 120T XL	217800	13.5	31.46	11.50	8.0-(8.5)-10.0	3086 @ 50	47.64
LT285/60R18 E 122/119Q	217510	16.4	31.69	11.50	8.5-(8.5)-10.0	3305 @ 80	57.17
LT285/65R18 E 125/122Q	217110	16.4	32.56	11.50	8.5-(8.5)-10.0	3640 @ 80	58.33
LT285/70R18 E 127/124Q	217370	16.4	33.98	11.50	7.5-(8.5)-9.5	3860 @ 80	59.94
LT285/75R18 E 129/126Q	217560	16.4	35.08	11.26	7.5-(8.0)-9.5	4080 @ 80	69.45
LT295/70R18 E 129/126Q	217120	16.4	34.29	11.77	7.5-(8.5)-10.0	4080 @ 80	69.44
305/60R18 116Q	217720	13.5	32.40	12.24	8.5-(9.0)-11.0	2756 @ 44	50.55
LT305/65R18 F 128/125Q	217520	16.4	33.58	12.24	9.0-(9.0)-11.0	3970 @ 80	68.43
LT325/60R18 E 124/121Q	217540	16.4	33.35	13.03	9.5-(9.5)-11.5	3525 @ 65	66.29
LT325/65R18 E 127/124Q	217550	16.4	34.61	13.03	9.5-(9.5)-11.5	3860 @ 65	74.23
37x11.50R18LT D 127Q	217660	18.3	36.77	11.42	7.5-(9.0)-10.0	3860 @ 65	76.63
38x11.50R18LT D 128Q	219130	18.3	37.76	11.42	7.5-(9.0)-10.0	3970 @ 65	75.62
33x12.50R18LT F 122Q	217190	18.3	32.76	12.52	8.5-(10.0)-11.0	3305 @ 80	69.68
35x12.50R18LT F 128Q	217130	18.3	34.76	12.52	8.5-(10.0)-11.0	3970 @ 80	74.11
37x12.50R18LT E 128Q	217260	18.3	36.77	12.52	8.0-(10.0)-10.5	3970 @ 65	83.39
37x13.50R18LT D 124Q	217390	18.3	36.77	13.58	9.0-(11.0)-11.5	3525 @ 50	89.02
38x13.50R18LT E 128Q	219110	18.3	37.76	13.58	9.0-(11.0)-11.5	3970 @ 65	84.22

Tire Size	Stock Number	Tread Depth(1/32 in)	Overall Dia (in)Inflated Dimensions	Overall Width (in)Inflated Dimensions	Approved Rim Width RangeMin-(Measuring)-Max (in)	Maximum Load (lbs.) @ Press. (PSI)	Weight (lbs)
265/50R20 111T XL	217780	13.5	30.47	10.91	7.5-(8.5)-9.5	2403 @ 50	43.12
265/60R20 112T	218890	13.5	32.52	10.71	7.5-(8.0)-9.5	2469 @ 44	44.51
LT265/60R20 E 121/118Q	217460	16.4	32.76	10.71	8.0-(8.0)-9.5	3195 @ 80	56.04
275/55R20 117T XL	217670	13.5	31.89	11.18	7.5-(8.5)-9.5	2833 @ 50	47.55
LT275/55R20 E 120/117Q	217330	16.4	32.13	11.18	8.0-(8.5)-9.5	3085 @ 80	53.13
275/60R20 116T XL	217630	13.5	32.99	10.98	7.5-(8.0)-9.5	2756 @ 50	47.22
LT275/60R20 E 123/120Q	217320	16.4	33.23	10.98	8.0-(8.0)-9.5	3415 @ 80	59.08
275/65R20 116T	219010	13.5	34.09	10.98	7.5-(8.0)-9.5	2756 @ 44	51.81
LT275/65R20 E 126/123Q	217150	16.4	34.09	10.98	8.0-(8.0)-9.5	3750 @ 80	60.85
285/50R20 116Q XL	217770	13.5	31.26	11.69	8.0-(9.0)-10.0	2756 @ 50	45.26
LT285/55R20 E 122/119Q	217340	16.4	32.60	11.69	8.5-(9.0)-10.0	3305 @ 80	61.07
LT285/60R20 E 125/122Q	217400	16.4	33.70	11.50	8.5-(8.5)-10.0	3640 @ 80	61.62
LT285/65R20 E 127/124Q	217350	16.4	34.80	11.50	8.5-(8.5)-10.0	3860 @ 80	63.71
LT295/55R20 E 123/120Q	217220	16.4	32.76	12.17	8.5-(9.5)-10.5	3415 @ 80	62.29
LT295/60R20 E 126/123Q	217170	16.4	33.94	11.77	8.0-(8.5)-10.5	3750 @ 80	65.88
LT295/65R20 E 129/126Q	217230	16.4	35.12	11.77	8.5-(8.5)-10.5	4080 @ 80	69.41
305/50R20 120Q XL	217790	13.5	32.05	12.44	8.5-(9.5)-11.0	3086 @ 50	49.87
305/55R20 116Q	217860	13.5	33.23	12.44	8.5-(9.5)-11.0	2756 @ 44	51.57
LT305/55R20 F 125/122Q	217060	16.4	33.23	12.44	9.0-(9.5)-11.0	3640 @ 80	63.85
LT325/60R20 E 126/123Q	217440	16.4	35.35	13.03	9.5-(9.5)-11.5	3750 @ 65	69.82
33x11.50R20LT E 118Q	217310	18.3	32.76	11.42	8.0-(9.0)-10.5	2910 @ 80	66.36
35x11.50R20LT E 124Q	217290	18.3	34.76	11.42	8.0-(9.0)-10.5	3525 @ 80	71.40
37x11.50R20LT E 128Q	218510	18.3	36.54	11.42	7.5-(9.0)-10.0	3970 @ 80	72.00
38x11.50R20LT D 127Q	219140	18.3	37.76	11.42	7.5-(9.0)-10.0	3860 @ 65	74.74
33x12.50R20LT F 119Q	217140	18.3	32.76	12.52	8.5-(10.0)-11.0	3000 @ 80	69.52
35x12.50R20LT F 125Q	217040	18.3	34.76	12.52	8.5-(10.0)-11.0	3640 @ 80	70.55
37x12.50R20LT E 126Q	217030	18.3	36.77	12.52	8.5-(10.0)-11.0	3750 @ 65	81.06
35x13.50R20LT F 126Q	217240	18.3	34.76	13.58	9.5-(11.0)-12.0	3750 @ 80	78.40
37x13.50R20LT E 127Q	217410	18.3	36.77	13.58	9.5-(11.0)-12.0	3860 @ 65	85.58
38x13.50R20LT E 128Q	217430	18.3	37.76	13.58	9.5-(11.0)-12.0	3970 @ 65	89.29
35x15.50R20LT F 127Q	219160	18.3	34.76	15.55	11.0-(12.5)-14.0	3860 @ 80	83.91

Tire Size	Stock Number	Tread Depth(1/32 in)	Overall Dia (in)Inflated Dimensions	Overall Width (in)Inflated Dimensions	Approved Rim Width RangeMin-(Measuring)-Max (in)	Maximum Load (lbs.) @ Press. (PSI)	Weight (lbs)
275/50R22 115T XL	218870	13.5	32.87	11.18	7.5-(8.5)-9.5	2679 @ 50	45.39
285/45R22 114Q XL	217750	13.5	32.09	11.22	9.0-(9.5)-10.5	2601 @ 50	44.73
LT285/50R22 E 121/118Q	217490	16.4	33.50	11.69	8.5-(9.0)-10.0	3195 @ 80	61.99
LT285/55R22 E 124/121Q	217500	16.4	34.61	11.69	8.0-(9.0)-10.0	3525 @ 80	62.96
LT295/50R22 E 122/119Q	218490	16.5	33.66	12.17	8.5-(9.5)-10.5	3305 @ 80	64.82
LT295/55R22 E 125/122Q	218480	16.5	34.76	12.17	8.0-(9.5)-10.5	3640 @ 80	67.13
305/45R22 118Q XL	217740	13.5	32.80	11.93	9.5-(10.0)-11.5	2910 @ 50	47.53
LT315/45R22 F 121/118Q	218500	16.5	33.19	12.40	10.0-(10.5)-12.0	3195 @ 80	67.20
LT325/50R22 F 127Q	217570	16.4	34.84	13.23	9.5-(10.0)-12.0	3860 @ 80	78.26
33x12.50R22LT F 114Q	217270	16.4	32.76	12.52	8.5-(10.0)-11.0	2600 @ 80	62.76
35x12.50R22LT F 121Q	217250	18.3	34.76	12.52	8.5-(10.0)-11.0	3195 @ 80	70.33
37x12.50R22LT F 127Q	217280	18.3	36.77	12.52	8.5-(10.0)-11.0	3860 @ 80	75.88
37x13.50R22LT F 128Q	217420	18.3	36.77	13.58	9.5-(11.0)-12.0	3970 @ 80	82.72
38x13.50R22LT E 126Q	217360	18.3	37.76	13.58	9.5-(11.0)-12.0	3750 @ 65	89.82

Tire Size	Stock Number	Tread Depth(1/32 in)	Overall Dia (in)Inflated Dimensions	Overall Width (in)Inflated Dimensions	Approved Rim Width RangeMin-(Measuring)-Max (in)	Maximum Load (lbs.) @ Press. (PSI)	Weight (lbs)
LT315/45R24 F 123/120Q	218530	16.4	35.20	12.40	10.0-(10.5)-12.0	3415 @ 80	80.98
LT315/50R24 F 127/124Q	217590	16.4	36.46	12.91	9.5-(10.0)-11.0	3860 @ 80	84.88
37x13.50R24LT F 124Q	217580	18.3	36.77	13.58	9.5-(11.0)-12.0	3525 @ 80	89.24
38x13.50R24LT F 127Q	217610	18.3	37.76	13.58	9.5-(11.0)-12.0	3860 @ 80	91.49

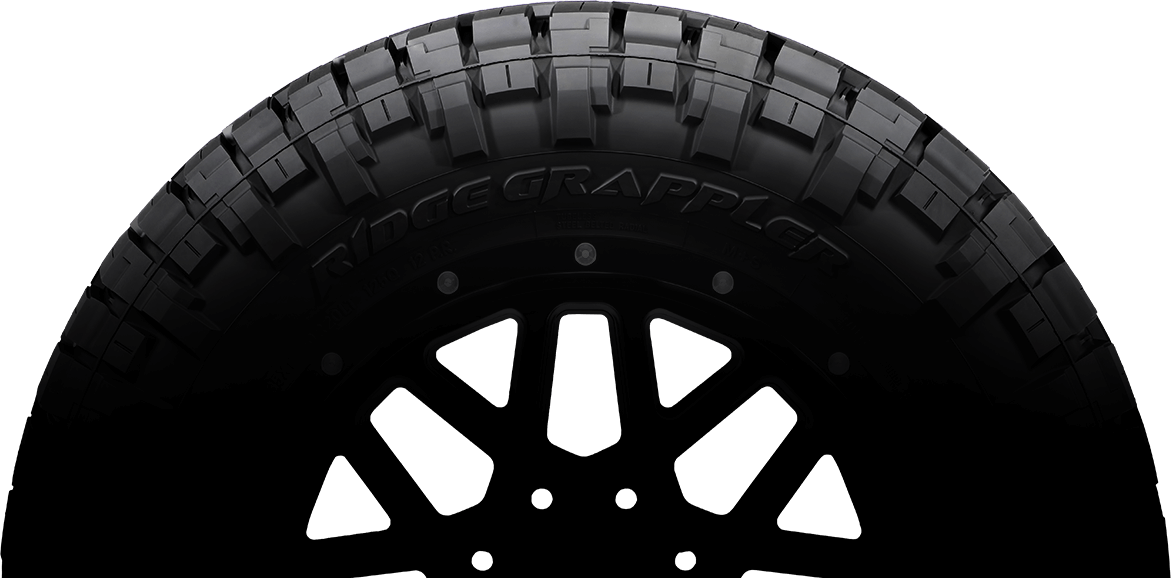

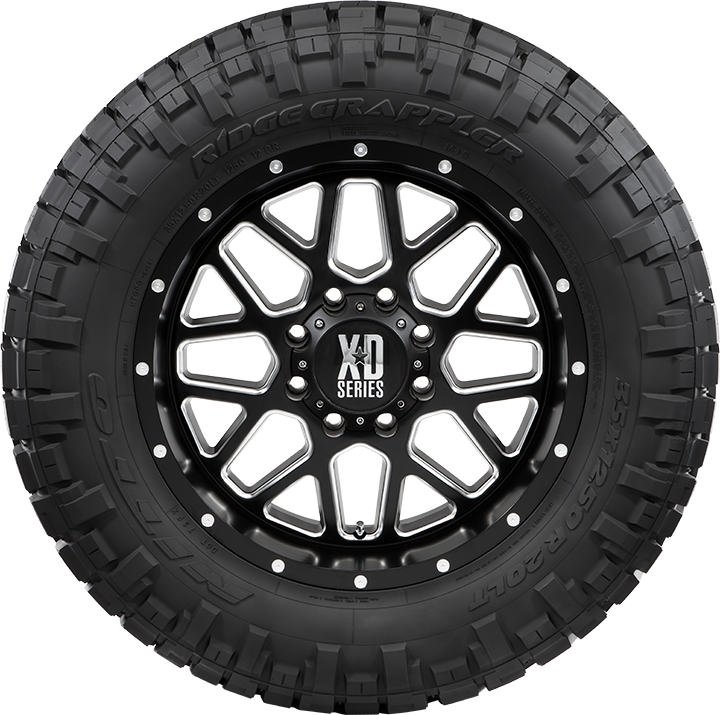

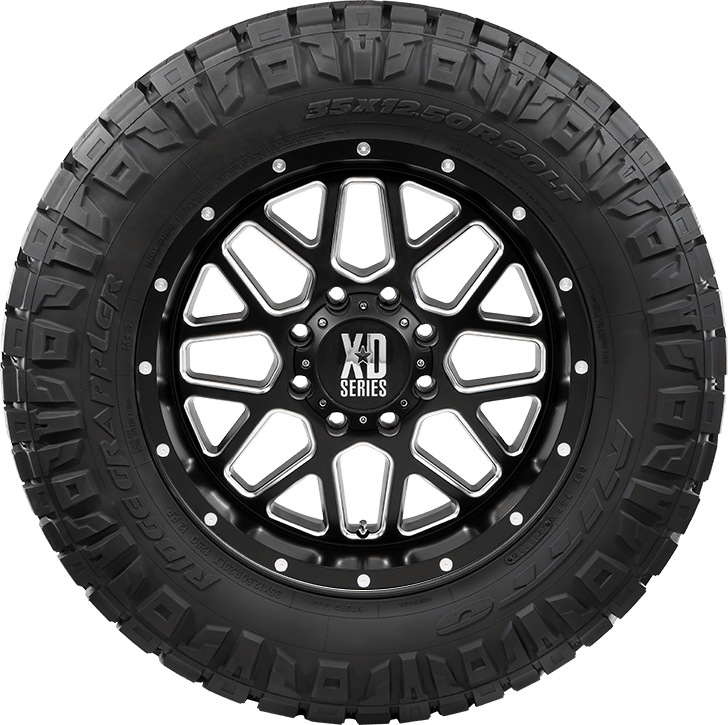

Ridge Grappler

Hybrid Terrain Tire

The Ridge Grappler^® provides the best of both worlds from our mud-terrain and all-terrain product offerings.

UTQG TREADWEAR
Metric Sizes Only: 500

TRACTION: A

TEMPERATURE: B

Find a Store

The best of both worlds

Featuring a revolutionary dynamic hybrid tread pattern, the Ridge Grappler® provides a quiet and comfortable ride, while deep aggressive sidewall lugs and tread pattern provide capable off-road performance.
