WHEEL DIAMETER

Tire Size	Stock Number	Tread Depth(1/32 in)	Overall Dia (in)Inflated Dimensions	Overall Width (in)Inflated Dimensions	Approved Rim Width RangeMin-(Measuring)-Max (in)	Maximum Load (lbs.) @ Press. (PSI)	Weight (lbs)
245/75R16 115T XL	222940	13.1	30.47	9.76	6.5-(7.0)-8.0	2679 @ 50	38.60
LT245/75R16 E 120/116S	222770	15.5	30.47	9.76	6.5-(7.0)-8.0	3042 @ 80	45.99
265/70R16 116T XL	224190	13.4	30.63	10.71	7.0-(8.0)-9.0	2756 @ 50	44.09
265/75R16 116T	224260	13.4	31.65	10.51	7.0-(7.5)-9.0	2756 @ 44	46.08
LT265/75R16 E 123/120S	224020	15.7	31.65	10.51	7.0-(7.5)-9.0	3415 @ 80	50.31
LT285/75R16 E 126/123R (33x11.50R16) †	224030	16.0	32.83	11.26	7.5-(8.0)-9.5	3750 @ 80	56.79

Tire Size	Stock Number	Tread Depth(1/32 in)	Overall Dia (in)Inflated Dimensions	Overall Width (in)Inflated Dimensions	Approved Rim Width RangeMin-(Measuring)-Max (in)	Maximum Load (lbs.) @ Press. (PSI)	Weight (lbs)
225/60R17 103T XL	224370	12.9	27.64	8.98	6.0-(6.5)-8.0	1929 @ 50	31.57
225/65R17 106T XL	224360	12.9	28.50	8.98	6.0-(6.5)-8.0	2094 @ 50	33.03
235/75R17 113T XL	224240	13.0	30.87	9.25	6.0-(6.5)-8.0	2535 @ 50	36.49
LT235/80R17 E 120/117R	224040	15.4	31.81	9.25	6.0-(6.5)-8.0	3085 @ 80	43.92
245/65R17 111T XL	224350	13.1	29.53	9.76	7.0-(7.0)-8.5	2403 @ 50	35.80
LT245/70R17 E 119/116S	223930	15.5	30.55	9.76	6.5-(7.0)-8.0	3000 @ 80	43.98
245/75R17 116T XL	224250	13.1	31.50	9.76	6.5-(7.0)-8.0	2756 @ 50	39.55
LT245/75R17 E 121/118S	224010	15.5	31.50	9.76	6.5-(7.0)-8.0	3195 @ 80	44.60
255/65R17 114T XL	224120	13.2	30.08	10.24	7.0-(7.5)-9.0	2601 @ 50	38.43
255/70R17 116T XL	224170	13.2	31.10	10.24	6.5-(7.5)-8.5	2756 @ 50	40.15
LT255/75R17 C 111/108S	302340	15.6	32.05	10.04	6.5-(7.0)-8.5	2405 @ 50	47.84
LT255/80R17 E 123/120R	222800	15.6	33.07	10.04	6.5-(7.0)-8.5	3415 @ 80	53.97
265/65R17 116T XL	224130	13.4	30.55	10.71	7.5-(8.0)-9.5	2756 @ 50	39.11
LT265/65R17 E 120/117S	223870	15.7	30.55	10.71	8.0-(8.0)-9.5	3085 @ 80	48.19
265/70R17 116T XL	224200	13.4	31.65	10.71	7.0-(8.0)-9.0	2756 @ 50	42.46
LT265/70R17 E 123/120S	223940	15.7	31.65	10.71	7.0-(8.0)-9.0	3415 @ 80	48.74
LT275/70R17 E 124/121S	223960	15.9	32.20	10.98	7.0-(8.0)-9.0	3525 @ 80	49.93
285/70R17 116T	224230	13.6	32.76	11.50	7.5-(8.5)-9.5	2756 @ 44	48.15
LT285/70R17 C 116/113S	222920	16.0	32.76	11.50	7.5-(8.5)-9.5	2755 @ 50	56.22
LT285/70R17 E 126/123S	223980	16.0	32.76	11.50	7.5-(8.5)-9.5	3750 @ 80	56.22
LT285/75R17 C 117/114Q	302280	16.0	33.86	11.26	7.5-(8.0)-9.5	2835 @ 50	60.05
LT285/75R17 E 128/125S	222780	16.0	33.86	11.26	7.5-(8.0)-9.5	3970 @ 80	60.61
LT305/70R17 F 128/125R	222950	16.3	33.86	12.24	8.0-(9.0)-10.0	3970 @ 80	63.32
LT315/70R17 E 126/123S (34x12.50R17) †	224000	16.3	34.41	12.72	8.0-(9.5)-10.5	3750 @ 65	64.51
35x11.50R17LT C 118Q - Available in Q2, 2026	224790	16.3	34.53	11.42	7.5-(9.0)-10.0	2910 @ 50	0
33x12.50R17LT F 124S - Available in Q2, 2026	224830	16.9	32.52	12.52	8.5-(10.0)-11.0	3525 @ 80	0
35x12.50R17LT C 111Q - Available in Q2, 2026	224780	16.9	34.53	12.52	8.0-(10.0)-10.5	2405 @ 35	0
35x12.50R17LT F 128R - Available in Q1, 2026	224660	16.9	34.53	12.52	8.0-(10.0)-10.5	3970 @ 80	0
37x12.50R17LT E 128S - Available in Q1, 2026	224730	16.9	36.54	12.52	8.5-(10.0)-10.5	3970 @ 65	0

Tire Size	Stock Number	Tread Depth(1/32 in)	Overall Dia (in)Inflated Dimensions	Overall Width (in)Inflated Dimensions	Approved Rim Width RangeMin-(Measuring)-Max (in)	Maximum Load (lbs.) @ Press. (PSI)	Weight (lbs)
LT235/80R18 E 121/118S	224620	15.4	32.80	9.25	6.0-(6.5)-8.0	3195 @ 80	47.64
255/70R18 116T XL	224180	13.2	32.09	10.24	6.5-(7.5)-8.5	2756 @ 50	41.45
265/60R18 114T XL	224080	13.4	30.51	10.71	7.5-(8.0)-9.5	2601 @ 50	40.41
LT265/60R18 E 119/116T	224340	15.7	30.51	10.71	8.0-(8.0)-9.5	3000 @ 80	47.66
265/65R18 116T XL	224140	13.4	31.54	10.71	7.5-(8.0)-9.5	2756 @ 50	41.67
LT265/65R18 E 122/119R	223880	15.7	31.54	10.71	8.0-(8.0)-9.5	3305 @ 80	49.16
265/70R18 116T	224210	13.4	32.64	10.71	7.0-(8.0)-9.0	2756 @ 44	46.08
LT265/70R18 E 124/121S	223950	15.7	32.64	10.71	7.0-(8.0)-9.0	3525 @ 80	50.77
275/65R18 116T	224150	13.5	32.09	10.98	7.5-(8.0)-9.5	2756 @ 44	42.02
LT275/65R18 C 113/110T	224280	15.9	32.09	10.98	8.0-(8.0)-9.5	2535 @ 50	51.01
LT275/65R18 E 123/120S	223890	15.9	32.09	10.98	8.0-(8.0)-9.5	3415 @ 80	51.32
275/70R18 116T	224220	13.5	33.19	10.98	7.0-(8.0)-9.0	2756 @ 44	45.57
LT275/70R18 E 125/122S (33x11.00R18) †	223970	15.9	33.19	10.98	7.0-(8.0)-9.0	3640 @ 80	52.36
285/60R18 120T XL	224110	13.6	31.46	11.50	8.0-(8.5)-10.0	3086 @ 50	45.19
LT285/60R18 E 122/119S	223840	16.0	31.46	11.50	8.5-(8.5)-10.0	3305 @ 80	51.59
LT285/65R18 E 125/122S	223910	16.0	32.56	11.50	8.5-(8.5)-10.0	3640 @ 80	53.95
LT285/70R18 E 127/124S	222960	16.0	33.74	11.50	7.5-(8.5)-9.5	3860 @ 80	58.44
LT295/70R18 E 129/126S (34x11.50R18) †	223990	16.1	34.29	11.77	7.5-(8.5)-10.0	4080 @ 80	64.53
LT305/65R18 F 128/125Q	302290	16.3	33.58	12.24	9.0-(9.0)-11.0	3970 @ 80	63.69
33x12.50R18LT F 122R - Available in Q1, 2026	224690	16.9	32.52	12.52	8.5-(10.0)-11.0	3305 @ 80	0
35x12.50R18LT D 118R - Available in Q1, 2026	224770	16.9	34.53	12.52	8.5-(10.0)-11.0	2910 @ 50	0
35x12.50R18LT F 128R - Available in Q1, 2026	224650	16.9	34.53	12.52	8.5-(10.0)-11.0	3970 @ 80	0
37x12.50R18LT E 128Q - Available in Q2, 2026	224810	16.9	36.54	12.52	8.0-(10.0)-10.5	3970 @ 65	0

Tire Size	Stock Number	Tread Depth(1/32 in)	Overall Dia (in)Inflated Dimensions	Overall Width (in)Inflated Dimensions	Approved Rim Width RangeMin-(Measuring)-Max (in)	Maximum Load (lbs.) @ Press. (PSI)	Weight (lbs)
245/60R20 111T XL	222980	13.1	31.57	9.76	7.0-(7.0)-8.5	2403 @ 50	39.82
255/50R20 109T XL	222990	13.2	30.08	10.43	7.0-(8.0)-9.0	2271 @ 50	38.40
265/50R20 111T X	224320	13.4	30.47	10.91	7.5-(8.5)-9.5	2403 @ 50	40.19
265/60R20 115H XL	224090	13.4	32.52	10.71	7.5-(8.0)-9.5	2679 @ 50	45.59
LT265/60R20 E 121/118S	223830	15.7	32.52	10.71	8.0-(8.0)-9.5	3195 @ 80	52.18
275/55R20 117T XL	224060	13.5	31.89	11.18	7.5-(8.5)-9.5	2833 @ 50	44.11
LT275/55R20 E 120/117T	223800	15.9	31.89	11.18	8.0-(8.5)-9.5	3085 @ 80	52.76
275/60R20 116T XL	224100	13.5	32.99	10.98	7.5-(8.0)-9.5	2756 @ 50	45.30
LT275/60R20 E 123/120T (33x11.00R20) †	222930	15.9	32.99	10.98	8.0-(8.0)-9.5	3415 @ 80	54.78
275/65R20 116T	224160	13.5	34.09	10.98	7.5-(8.0)-9.5	2756 @ 44	47.00
LT275/65R20 E 126/123S (34x11.00R20) †	223900	15.9	34.09	10.98	8.0-(8.0)-9.5	3750 @ 80	54.78
285/55R20 116T XL	222760	13.6	32.36	11.69	8.0-(9.0)-10.0	2756 @ 50	46.76
LT285/55R20 E 122/119T	223810	16.0	32.36	11.69	8.5-(9.0)-10.0	3305 @ 80	54.52
LT285/60R20 E 125/122S (33x11.50R20) †	223850	16.0	33.46	11.50	8.5-(8.5)-10.0	3640 @ 80	56.57
LT285/65R20 E 127/124S	224290	16.0	34.57	11.50	8.5-(8.5)-10.0	3860 @ 80	59.52
295/55R20 116T	224330	13.7	32.76	12.17	8.0-(9.5)-10.5	2756 @ 44	49.78
LT295/55R20 E 123/120T	224300	16.1	32.76	12.17	8.5-(9.5)-10.5	3415 @ 80	57.89
LT295/60R20 E 126/123S (34x11.50R20) †	223860	16.1	33.94	11.77	8.0-(8.5)-10.5	3750 @ 80	61.60
LT295/65R20 E 129/126S (35x11.50R20) †	223920	16.1	35.12	11.77	8.5-(8.5)-10.5	4080 @ 80	61.66
305/55R20 116T	224070	13.9	33.23	12.44	8.5-(9.5)-11.0	2756 @ 44	47.60
LT305/55R20 F 125/122S (33x12.50R20) †	223820	16.3	33.23	12.44	9.0-(9.5)-11.0	3640 @ 80	62.28
35x11.50R20LT E 124R - Available in Q1, 2026	224700	16.3	34.53	11.42	8.0-(9.0)-10.5	3525 @ 80	0
35x12.50R20LT E 121R - Available in Q1, 2026	224750	16.9	34.53	12.52	8.5-(10.0)-11.0	3195 @ 65	0
35x12.50R20LT F 125R - Available in Q1, 2026	224630	16.9	34.53	12.52	8.5-(10.0)-11.0	3640 @ 80	0
37x12.50R20LT E 126R - Available in Q1, 2026	224720	16.9	36.54	12.52	8.5-(10.0)-11.0	3750 @ 65	0
37x13.50R20LT E 127Q - Available in Q2, 2026	224820	16.9	36.54	13.58	9.5-(11.0)-12.0	3860 @ 65	0

Tire Size	Stock Number	Tread Depth(1/32 in)	Overall Dia (in)Inflated Dimensions	Overall Width (in)Inflated Dimensions	Approved Rim Width RangeMin-(Measuring)-Max (in)	Maximum Load (lbs.) @ Press. (PSI)	Weight (lbs)
265/50R22 112H XL	224590	13.4	32.48	10.91	7.5-(8.5)-9.5	2469 @ 50	43.76
LT265/60R22 E 123/120S	224610	15.7	34.53	10.71	8.0-(8.0)-9.5	3415 @ 80	56.02
275/50R22 115T XL	224270	13.5	32.87	11.18	7.5-(8.5)-9.5	2679 @ 50	45.11
285/45R22 114H XL	224050	13.6	32.09	11.22	9.0-(9.5)-10.5	2601 @ 50	44.73
LT285/50R22 E 121/118S (33x11.50R22) †	224310	16.0	33.27	11.69	8.5-(9.0)-10.0	3195 @ 80	56.97
37x12.50R22LT F 127R - Available in Q1, 2026	224740	16.9	36.54	12.52	8.5-(10.0)-11.0	3860 @ 80	0

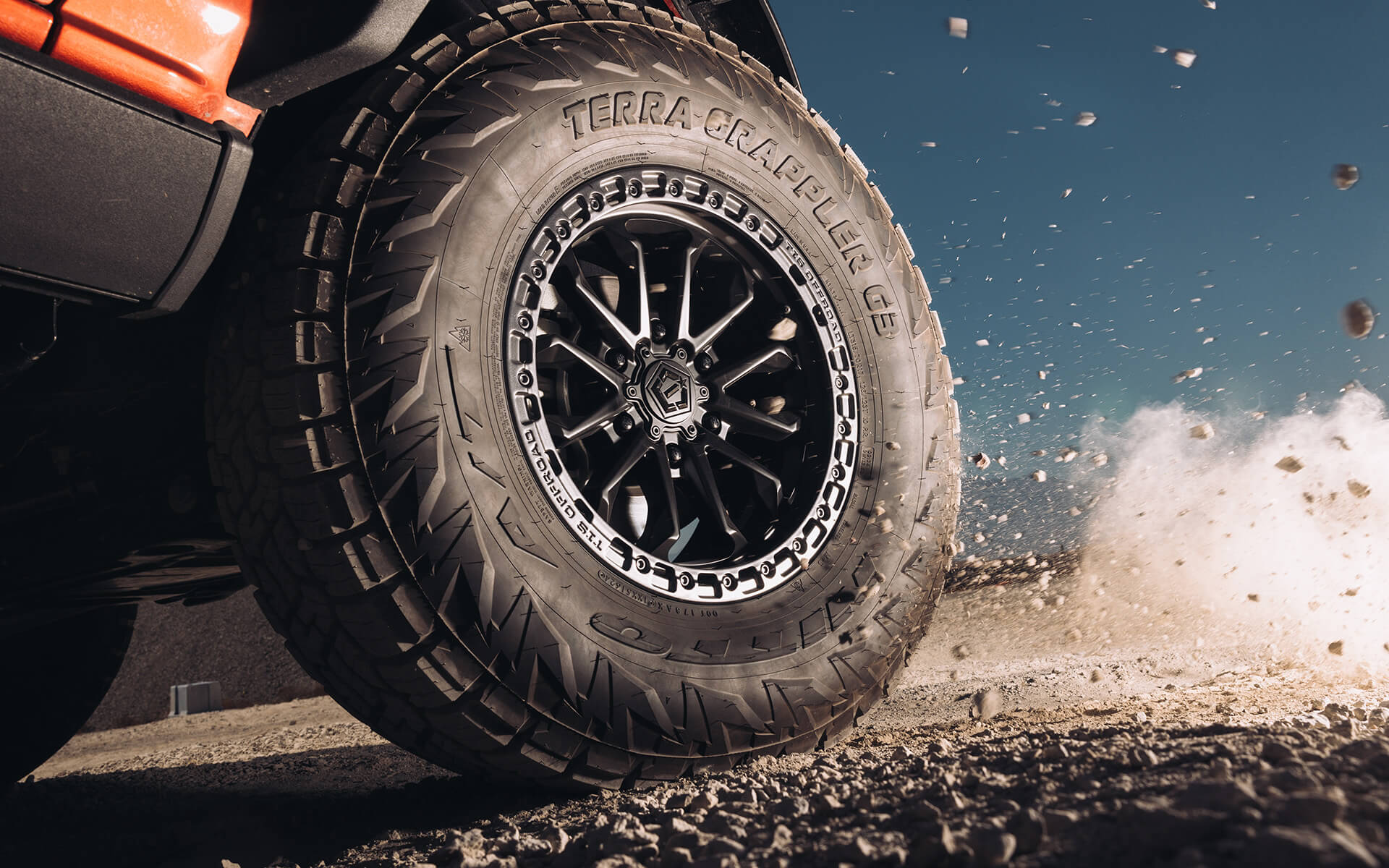

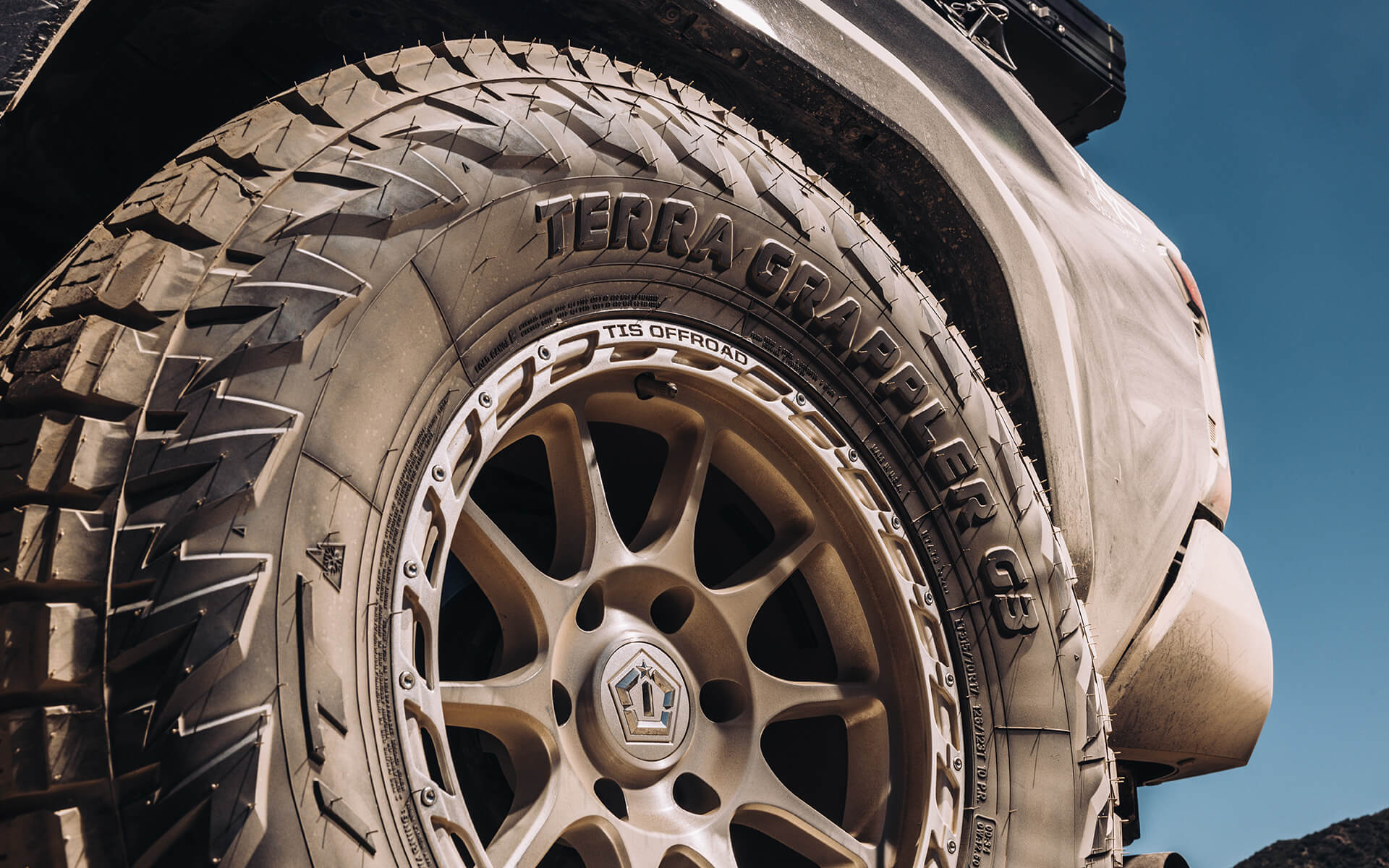

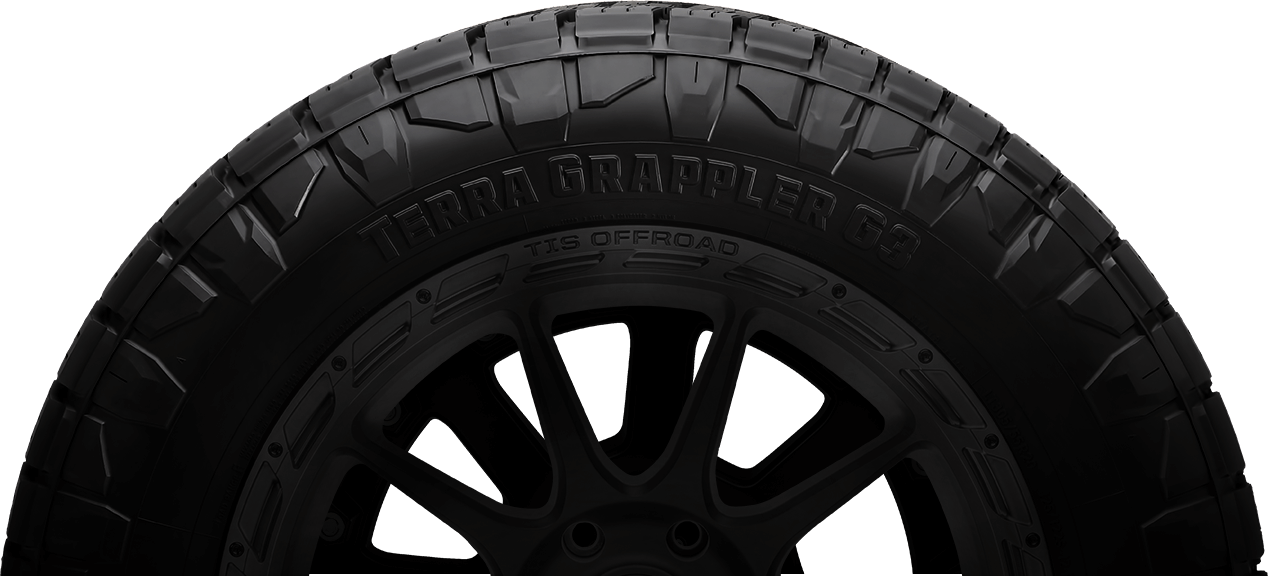

Terra Grappler G3

Name: Terra Grappler G3 All Terrain Light Truck Tire
Brand: Nitto
Rating: 4.42 (78 reviews)

All-Terrain Light Truck Tire

The Terra Grappler^® G3 is our most versatile all-terrain tire with 3PMS-rated snow traction for all-weather conditions.

UTQG TREADWEAR
H Speed rating: 600

TRACTION: A

TEMPERATURE: A

UTQG TREADWEAR
S, T Speed Rating: 600

TRACTION: A

TEMPERATURE: B

Find a Store

Ready for Anything

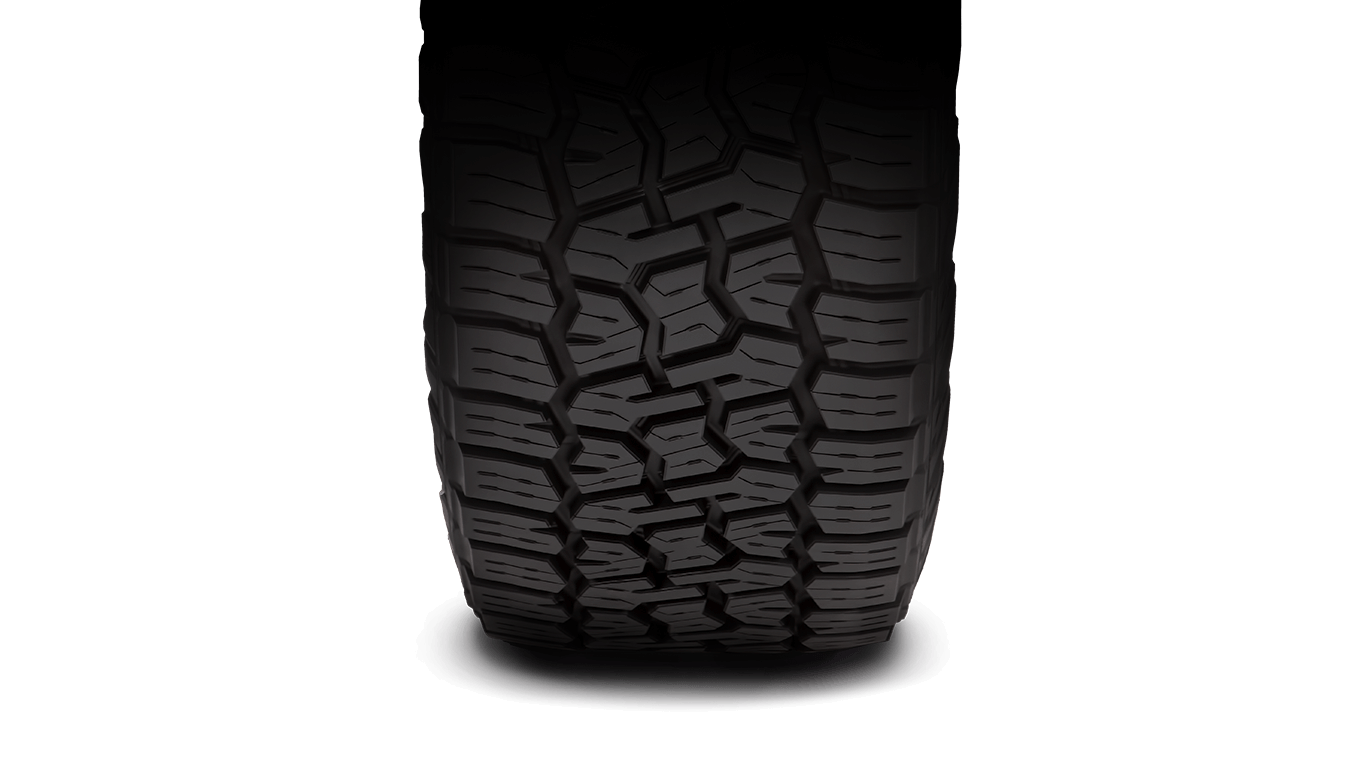

Third in the legendary Terra Grappler^® name, Terra Grappler^® G3 is our most advanced all-terrain tire. Featuring new compound and completely redesigned tread pattern, Terra Grappler^® G3 is engineered handle wide range of terrains through out the seasons.
