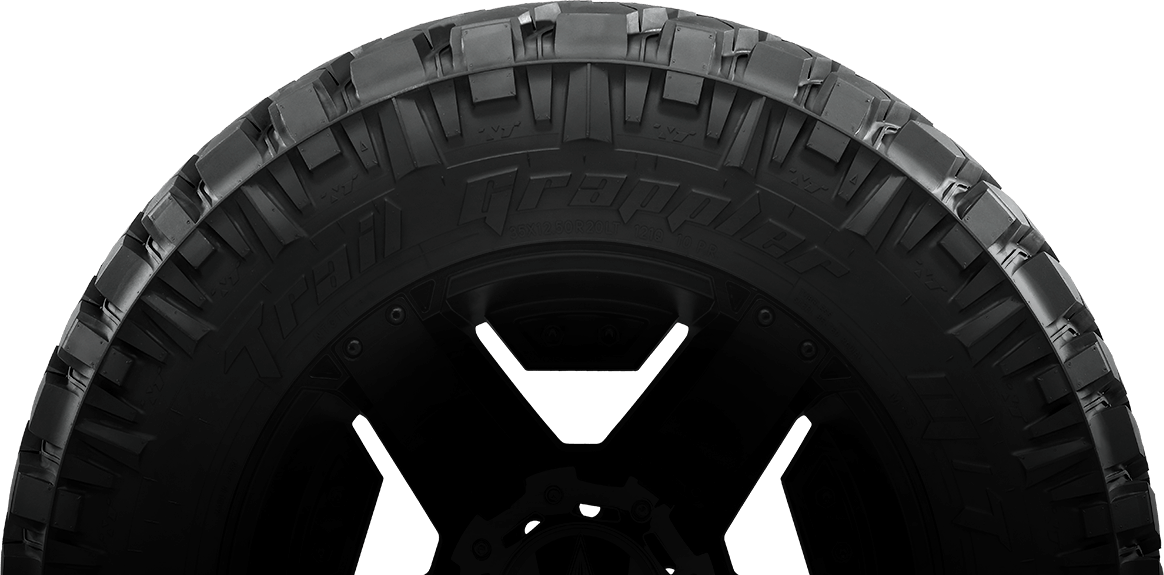

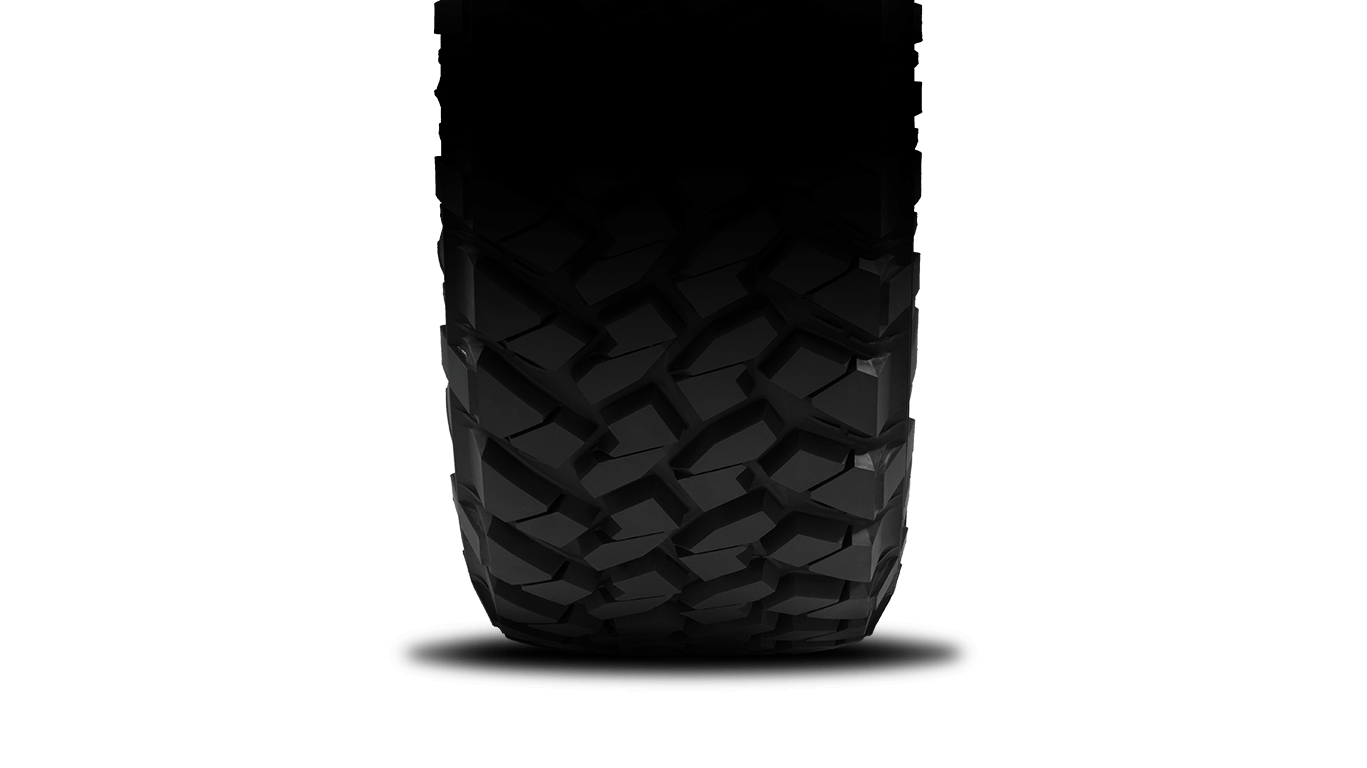

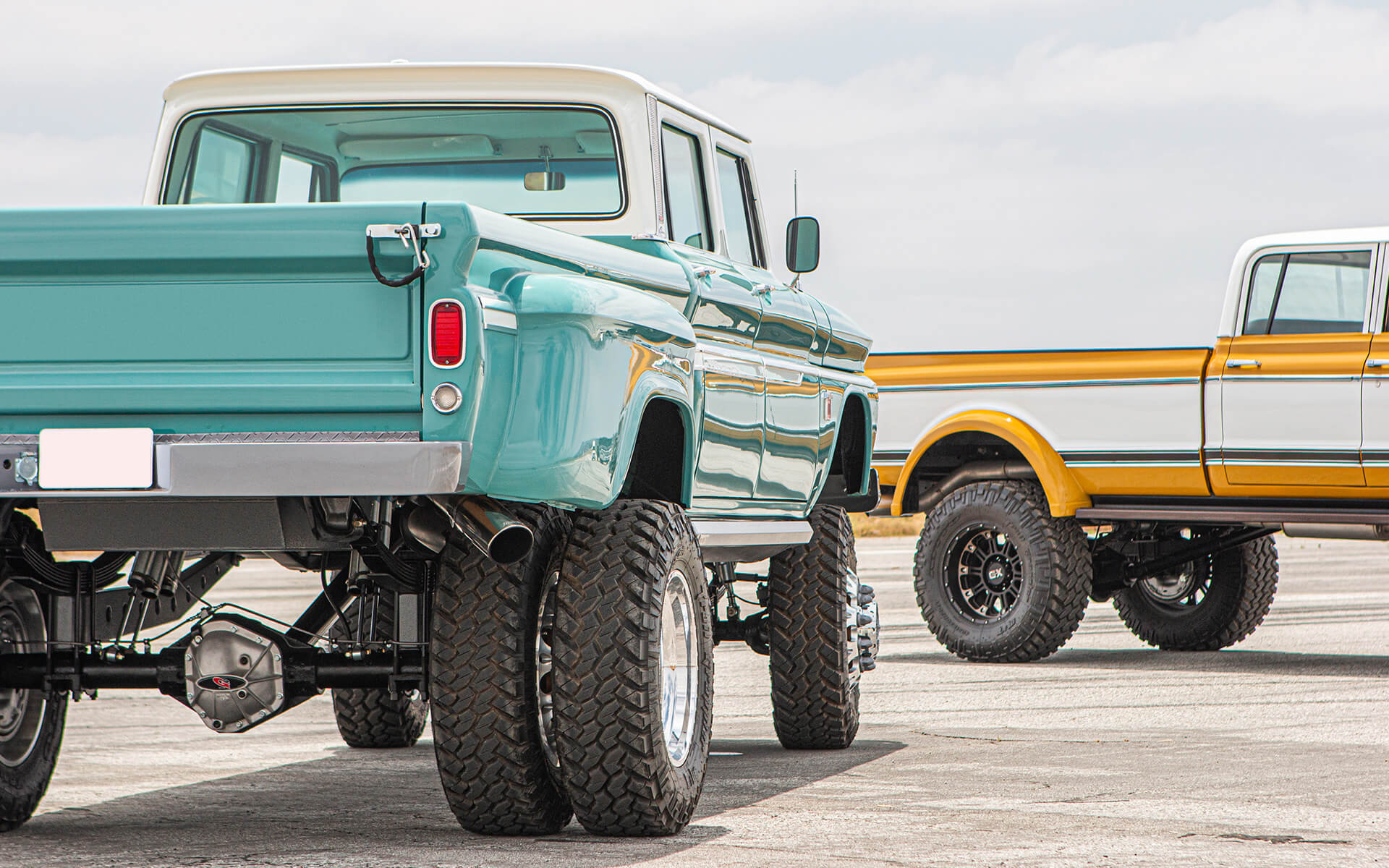

Name: Trail Grappler Mud Terrain Light Truck Tire
Brand: Nitto
Rating: 4.18 (217 reviews)

33x12.50R15LT C 108Q
- Stock Number: 205850
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 33.03
- Inflated Dimensions - Overall Width (in): 12.99
- Approved Rim Width Range (in): 8.0-(10.0)-10.5
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 2205 @ 35
- Weight: 71.47

LT265/75R16 E 123/120P
- Stock Number: 205440
- Tread Depth (1/32 in): 18.9
- Inflated Dimensions - Overall Dia (in): 31.89
- Inflated Dimensions - Overall Width (in): 10.51
- Approved Rim Width Range (in): 7.0-(7.5)-9.0
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3415 @ 80
- Weight: 61.69
LT285/70R16 E 125/122P
- Stock Number: 205770
- Tread Depth (1/32 in): 18.9
- Inflated Dimensions - Overall Dia (in): 31.89
- Inflated Dimensions - Overall Width (in): 11.50
- Approved Rim Width Range (in): 7.5-(8.5)-9.5
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3640 @ 80
- Weight: 62.91
LT285/75R16 E 126/123Q
- Stock Number: 205840
- Tread Depth (1/32 in): 19.1
- Inflated Dimensions - Overall Dia (in): 33.03
- Inflated Dimensions - Overall Width (in): 11.73
- Approved Rim Width Range (in): 7.5-(8.0)-9.5
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3750 @ 80
- Weight: 70.21
LT315/75R16 E 127/124Q
- Stock Number: 205920
- Tread Depth (1/32 in): 20.0
- Inflated Dimensions - Overall Dia (in): 34.80
- Inflated Dimensions - Overall Width (in): 12.83
- Approved Rim Width Range (in): 8.0-(8.5)-10.5
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3860 @ 65
- Weight: 82.37

LT255/75R17 C 111/108Q
- Stock Number: 205890
- Tread Depth (1/32 in): 18.3
- Inflated Dimensions - Overall Dia (in): 32.17
- Inflated Dimensions - Overall Width (in): 10.28
- Approved Rim Width Range (in): 6.5-(7.0)-8.5
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 2405 @ 50
- Weight: 58.45
LT265/70R17 E 121/118Q
- Stock Number: 205860
- Tread Depth (1/32 in): 18.9
- Inflated Dimensions - Overall Dia (in): 31.97
- Inflated Dimensions - Overall Width (in): 11.02
- Approved Rim Width Range (in): 7.0-(8.0)-9.0
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3195 @ 80
- Weight: 60.81
LT285/70R17 C 116/113Q
- Stock Number: 205450
- Tread Depth (1/32 in): 18.9
- Inflated Dimensions - Overall Dia (in): 32.99
- Inflated Dimensions - Overall Width (in): 11.50
- Approved Rim Width Range (in): 7.5-(8.5)-9.5
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 2755 @ 50
- Weight: 66.38
LT285/70R17 E 121/118Q
- Stock Number: 205930
- Tread Depth (1/32 in): 18.9
- Inflated Dimensions - Overall Dia (in): 33.15
- Inflated Dimensions - Overall Width (in): 11.81
- Approved Rim Width Range (in): 7.5-(8.5)-9.5
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3195 @ 80
- Weight: 66.39
LT285/75R17 E 121/118Q
- Stock Number: 205950
- Tread Depth (1/32 in): 18.9
- Inflated Dimensions - Overall Dia (in): 34.09
- Inflated Dimensions - Overall Width (in): 11.57
- Approved Rim Width Range (in): 7.5-(8.0)-9.5
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3195 @ 80
- Weight: 66.38
LT295/70R17 E 121/118P
- Stock Number: 205710
- Tread Depth (1/32 in): 19.4
- Inflated Dimensions - Overall Dia (in): 33.54
- Inflated Dimensions - Overall Width (in): 11.97
- Approved Rim Width Range (in): 7.5-(8.5)-10.0
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3195 @ 80
- Weight: 69.84
LT315/70R17 D 121/118Q
- Stock Number: 205940
- Tread Depth (1/32 in): 20.0
- Inflated Dimensions - Overall Dia (in): 34.61
- Inflated Dimensions - Overall Width (in): 13.27
- Approved Rim Width Range (in): 8.0-(9.5)-10.5
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3195 @ 50
- Weight: 76.83
35x11.50R17LT C 118Q
- Stock Number: 374080
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 34.76
- Inflated Dimensions - Overall Width (in): 11.42
- Approved Rim Width Range (in): 7.5-(9.0)-10.0
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 2910 @ 50
- Weight: 72.60
33x12.50R17LT E 120Q
- Stock Number: 374070
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 32.76
- Inflated Dimensions - Overall Width (in): 12.52
- Approved Rim Width Range (in): 8.5-(10.0)-11.0
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3085 @ 65
- Weight: 68.50
35x12.50R17LT E 121Q
- Stock Number: 205730
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 34.84
- Inflated Dimensions - Overall Width (in): 13.19
- Approved Rim Width Range (in): 8.0-(10.0)-10.5
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3195 @ 65
- Weight: 79.89
37x12.50R17LT D 124Q
- Stock Number: 205880
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 36.85
- Inflated Dimensions - Overall Width (in): 13.43
- Approved Rim Width Range (in): 8.0-(10.0)-10.5
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3525 @ 50
- Weight: 87.30
38x13.50R17LT D 121Q
- Stock Number: 374200
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 37.76
- Inflated Dimensions - Overall Width (in): 13.58
- Approved Rim Width Range (in): 9.0-(11.0)-11.5
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3195 @ 50
- Weight: 90.06
40x13.50R17LT C 121P
- Stock Number: 205980
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 39.76
- Inflated Dimensions - Overall Width (in): 13.58
- Approved Rim Width Range (in): 9.0-(11.0)-11.5
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3195 @ 35
- Weight: 111.77
42x13.50R17LT C 126P
- Stock Number: 374240
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 41.77
- Inflated Dimensions - Overall Width (in): 13.58
- Approved Rim Width Range (in): 9.0-(11.0)-11.5
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3750 @ 35
- Weight: 111.13

LT275/70R18 E 125/122Q
- Stock Number: 205870
- Tread Depth (1/32 in): 19.1
- Inflated Dimensions - Overall Dia (in): 33.62
- Inflated Dimensions - Overall Width (in): 11.10
- Approved Rim Width Range (in): 7.0-(8.0)-9.0
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3640 @ 80
- Weight: 65.67
LT285/65R18 E 125/122Q
- Stock Number: 205740
- Tread Depth (1/32 in): 18.9
- Inflated Dimensions - Overall Dia (in): 32.83
- Inflated Dimensions - Overall Width (in): 11.93
- Approved Rim Width Range (in): 8.5-(8.5)-10.0
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3640 @ 80
- Weight: 67.27
LT285/75R18 E 129/126Q
- Stock Number: 206840
- Tread Depth (1/32 in): 18.9
- Inflated Dimensions - Overall Dia (in): 35.08
- Inflated Dimensions - Overall Width (in): 11.26
- Approved Rim Width Range (in): 7.5-(8.0)-9.5
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 4080 @ 80
- Weight: 69.84
LT295/70R18 E 129/126Q
- Stock Number: 205780
- Tread Depth (1/32 in): 19.4
- Inflated Dimensions - Overall Dia (in): 34.57
- Inflated Dimensions - Overall Width (in): 11.73
- Approved Rim Width Range (in): 7.5-(8.5)-10.0
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 4080 @ 80
- Weight: 72.83
35x11.50R18LT E 127Q
- Stock Number: 205530
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 34.76
- Inflated Dimensions - Overall Width (in): 11.42
- Approved Rim Width Range (in): 7.5-(9.0)-10.0
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3860 @ 80
- Weight: 72.19
33x12.50R18LT F 122Q
- Stock Number: 374060
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 32.76
- Inflated Dimensions - Overall Width (in): 12.52
- Approved Rim Width Range (in): 8.5-(10.0)-11.0
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3305 @ 80
- Weight: 72.64
35x12.50R18LT E 123Q
- Stock Number: 205700
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 35.04
- Inflated Dimensions - Overall Width (in): 13.39
- Approved Rim Width Range (in): 8.5-(10.0)-11.0
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3415 @ 65
- Weight: 81.01
37x12.50R18LT E 128Q
- Stock Number: 206610
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 36.77
- Inflated Dimensions - Overall Width (in): 12.52
- Approved Rim Width Range (in): 8.0-(10.0)-10.5
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3970 @ 65
- Weight: 89.95

LT275/65R20 E 126/123Q
- Stock Number: 206600
- Tread Depth (1/32 in): 19.1
- Inflated Dimensions - Overall Dia (in): 34.33
- Inflated Dimensions - Overall Width (in): 10.98
- Approved Rim Width Range (in): 8.0-(8.0)-9.5
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3750 @ 80
- Weight: 67.91
LT285/55R20 E 122/119Q
- Stock Number: 206830
- Tread Depth (1/32 in): 18.9
- Inflated Dimensions - Overall Dia (in): 32.60
- Inflated Dimensions - Overall Width (in): 11.69
- Approved Rim Width Range (in): 8.5-(9.0)-10.0
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3305 @ 80
- Weight: 63.18
LT285/60R20 E 125/122Q
- Stock Number: 374210
- Tread Depth (1/32 in): 18.9
- Inflated Dimensions - Overall Dia (in): 33.70
- Inflated Dimensions - Overall Width (in): 11.50
- Approved Rim Width Range (in): 8.5-(8.5)-10.0
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3640 @ 80
- Weight: 67.42
LT295/55R20 E 123/120Q
- Stock Number: 205750
- Tread Depth (1/32 in): 19.4
- Inflated Dimensions - Overall Dia (in): 32.91
- Inflated Dimensions - Overall Width (in): 12.52
- Approved Rim Width Range (in): 8.5-(9.5)-10.5
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3415 @ 80
- Weight: 70.02
LT295/60R20 E 126/123 Q
- Stock Number: 205910
- Tread Depth (1/32 in): 19.4
- Inflated Dimensions - Overall Dia (in): 34.45
- Inflated Dimensions - Overall Width (in): 12.13
- Approved Rim Width Range (in): 8.0-(8.5)-10.5
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3750 @ 80
- Weight: 76.30
LT295/65R20 E 129/126Q
- Stock Number: 205790
- Tread Depth (1/32 in): 19.4
- Inflated Dimensions - Overall Dia (in): 35.47
- Inflated Dimensions - Overall Width (in): 12.13
- Approved Rim Width Range (in): 8.5-(8.5)-10.5
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 4080 @ 80
- Weight: 75.29
LT305/55R20 E 121/118Q
- Stock Number: 205760
- Tread Depth (1/32 in): 19.4
- Inflated Dimensions - Overall Dia (in): 33.39
- Inflated Dimensions - Overall Width (in): 12.60
- Approved Rim Width Range (in): 9.0-(9.5)-11.0
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3195 @ 65
- Weight: 72.05
LT325/60R20 E 126/123Q
- Stock Number: 205570
- Tread Depth (1/32 in): 20.2
- Inflated Dimensions - Overall Dia (in): 35.59
- Inflated Dimensions - Overall Width (in): 13.03
- Approved Rim Width Range (in): 9.5-(9.5)-11.5
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3750 @ 65
- Weight: 83.01
35x11.50R20LT E 124Q
- Stock Number: 205540
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 34.76
- Inflated Dimensions - Overall Width (in): 11.42
- Approved Rim Width Range (in): 8.0-(9.0)-10.5
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3525 @ 80
- Weight: 70.41
37x11.50R20LT E 128Q
- Stock Number: 205580
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 36.77
- Inflated Dimensions - Overall Width (in): 11.42
- Approved Rim Width Range (in): 7.5-(9.0)-10.0
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3970 @ 80
- Weight: 76.98
33x12.50R20LT E 114Q
- Stock Number: 205590
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 32.76
- Inflated Dimensions - Overall Width (in): 12.52
- Approved Rim Width Range (in): 8.5-(10.0)-11.0
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 2600 @ 65
- Weight: 70.74
35x12.50R20LT E 121Q
- Stock Number: 205720
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 35.04
- Inflated Dimensions - Overall Width (in): 13.39
- Approved Rim Width Range (in): 8.5-(10.0)-11.0
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3195 @ 65
- Weight: 78.44
35x12.50R20LT F 125Q
- Stock Number: 374120
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 34.76
- Inflated Dimensions - Overall Width (in): 12.52
- Approved Rim Width Range (in): 8.5-(10.0)-11.0
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3640 @ 80
- Weight: 76.83
37x12.50R20LT E 126Q
- Stock Number: 205800
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 36.77
- Inflated Dimensions - Overall Width (in): 12.99
- Approved Rim Width Range (in): 8.5-(10.0)-11.0
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3750 @ 65
- Weight: 85.84
37x13.50R20LT E 127Q
- Stock Number: 205420
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 36.77
- Inflated Dimensions - Overall Width (in): 13.58
- Approved Rim Width Range (in): 9.5-(11.0)-12.0
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3860 @ 65
- Weight: 88.03
38x13.50R20LT E 128Q
- Stock Number: 374000
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 37.76
- Inflated Dimensions - Overall Width (in): 13.58
- Approved Rim Width Range (in): 9.5-(11.0)-12.0
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3970 @ 65
- Weight: 91.23
42x13.50R20LT C 124Q
- Stock Number: 374160
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 41.77
- Inflated Dimensions - Overall Width (in): 13.58
- Approved Rim Width Range (in): 9.0-(11.0)-11.5
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3525 @ 35
- Weight: 108.78
38x15.50R20LT D 125Q
- Stock Number: 205430
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 37.76
- Inflated Dimensions - Overall Width (in): 15.35
- Approved Rim Width Range (in): 11.0-(12.5)-14.0
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3640 @ 50
- Weight: 95.64
40x15.50R20LT D 128Q
- Stock Number: 206850
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 39.76
- Inflated Dimensions - Overall Width (in): 15.35
- Approved Rim Width Range (in): 11.0-(12.5)-14.0
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3970 @ 50
- Weight: 106.33

LT285/55R22 E 124/121Q
- Stock Number: 205900
- Tread Depth (1/32 in): 18.9
- Inflated Dimensions - Overall Dia (in): 34.53
- Inflated Dimensions - Overall Width (in): 12.05
- Approved Rim Width Range (in): 8.0-(9.0)-10.0
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3525 @ 80
- Weight: 69.58
LT325/50R22 E 122Q
- Stock Number: 205830
- Tread Depth (1/32 in): 20.0
- Inflated Dimensions - Overall Dia (in): 34.92
- Inflated Dimensions - Overall Width (in): 13.19
- Approved Rim Width Range (in): 9.5-(10.0)-12.0
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3305 @ 65
- Weight: 75.27
LT355/40R22 F 122Q
- Stock Number: 374020
- Tread Depth (1/32 in): 18.9
- Inflated Dimensions - Overall Dia (in): 33.43
- Inflated Dimensions - Overall Width (in): 14.41
- Approved Rim Width Range (in): 12.0-(12.5)-14.0
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3305 @ 80
- Weight: 79.70
LT375/45R22 F 128Q
- Stock Number: 374010
- Tread Depth (1/32 in): 19.5
- Inflated Dimensions - Overall Dia (in): 35.55
- Inflated Dimensions - Overall Width (in): 14.96
- Approved Rim Width Range (in): 12.0-(12.5)-14.0
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3970 @ 80
- Weight: 89.36
33x12.50R22LT E 109Q
- Stock Number: 205600
- Tread Depth (1/32 in): 18.9
- Inflated Dimensions - Overall Dia (in): 32.76
- Inflated Dimensions - Overall Width (in): 12.52
- Approved Rim Width Range (in): 8.5-(10.0)-11.0
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 2270 @ 65
- Weight: 64.37
35x12.50R22LT E 117Q
- Stock Number: 205610
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 34.76
- Inflated Dimensions - Overall Width (in): 12.52
- Approved Rim Width Range (in): 8.5-(10.0)-11.0
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 2835 @ 65
- Weight: 72.31
37x13.50R22LT E 123Q
- Stock Number: 205810
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 37.05
- Inflated Dimensions - Overall Width (in): 13.78
- Approved Rim Width Range (in): 9.5-(11.0)-12.0
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3415 @ 65
- Weight: 83.57
38x13.50R22LT E 126Q
- Stock Number: 205550
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 37.76
- Inflated Dimensions - Overall Width (in): 13.58
- Approved Rim Width Range (in): 9.5-(11.0)-12.0
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3750 @ 65
- Weight: 89.11
40x15.50R22LT E 128Q
- Stock Number: 205560
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 39.76
- Inflated Dimensions - Overall Width (in): 15.35
- Approved Rim Width Range (in): 11.0-(12.5)-14.0
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3970 @ 65
- Weight: 105.72
42x15.50R22LT C 124Q
- Stock Number: 374220
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 41.77
- Inflated Dimensions - Overall Width (in): 15.55
- Approved Rim Width Range (in): 11.0-(12.5)-14.0
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3525 @ 35
- Weight: 115.59

LT355/40R24 F 123Q
- Stock Number: 374140
- Tread Depth (1/32 in): 18.9
- Inflated Dimensions - Overall Dia (in): 35.43
- Inflated Dimensions - Overall Width (in): 14.21
- Approved Rim Width Range (in): 12.0-(12.5)-14.0
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3415 @ 80
- Weight: 84.04
LT375/40R24 F126Q
- Stock Number: 374040
- Tread Depth (1/32 in): 19.5
- Inflated Dimensions - Overall Dia (in): 36.06
- Inflated Dimensions - Overall Width (in): 14.96
- Approved Rim Width Range (in): 12.5-(13.5)-15.0
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3750 @ 80
- Weight: 89.97
LT375/45R24 E 126Q
- Stock Number: 374230
- Tread Depth (1/32 in): 19.5
- Inflated Dimensions - Overall Dia (in): 37.56
- Inflated Dimensions - Overall Width (in): 14.76
- Approved Rim Width Range (in): 12.0-(12.5)-14.0
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3750 @ 65
- Weight: 92.15
37x13.50R24LT F 124Q
- Stock Number: 374150
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 36.77
- Inflated Dimensions - Overall Width (in): 13.58
- Approved Rim Width Range (in): 9.5-(11.0)-12.0
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3525 @ 80
- Weight: 86.99
38x13.50R24LT E 123Q
- Stock Number: 205820
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 37.72
- Inflated Dimensions - Overall Width (in): 13.82
- Approved Rim Width Range (in): 9.5-(11.0)-12.0
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3415 @ 65
- Weight: 90.89
40x15.50R24LT E 128P
- Stock Number: 374050
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 39.76
- Inflated Dimensions - Overall Width (in): 15.35
- Approved Rim Width Range (in): 11.0-(12.5)-14.0
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3970 @ 65
- Weight: 104.45
42x15.50R24LT C 122Q
- Stock Number: 374170
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 41.77
- Inflated Dimensions - Overall Width (in): 15.55
- Approved Rim Width Range (in): 11.0-(12.5)-14.0
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3305 @ 35
- Weight: 110.80

40x15.50R26LT E 126Q
- Stock Number: 374100
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 39.76
- Inflated Dimensions - Overall Width (in): 15.55
- Approved Rim Width Range (in): 11.0-(12.5)-14.0
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3750 @ 65
- Weight: 104.32
42x15.50R26LT D 126Q
- Stock Number: 374130
- Tread Depth (1/32 in): 21.0
- Inflated Dimensions - Overall Dia (in): 41.77
- Inflated Dimensions - Overall Width (in): 15.55
- Approved Rim Width Range (in): 11.0-(12.5)-14.0
  Min -(Measuring)- Max
- Maximum Load (lbs.) @ Press. (PSI): 3750 @ 50
- Weight: 109.79

Trail Grappler

Mud Terrain Tire

Off-road performance perfected

Overall ratings

PERFORMANCE RATINGS

Find nitto tires near you

What our customers are saying

Trail Grappler^®, from all angles

Tire Size	Stock Number	Tread Depth(1/32 in)	Overall Dia (in)Inflated Dimensions	Overall Width (in)Inflated Dimensions	Approved Rim Width RangeMin-(Measuring)-Max (in)	Maximum Load (lbs.) @ Press. (PSI)	Weight (lbs)
LT265/75R16 E 123/120P	205440	18.9	31.89	10.51	7.0-(7.5)-9.0	3415 @ 80	61.69
LT285/70R16 E 125/122P	205770	18.9	31.89	11.50	7.5-(8.5)-9.5	3640 @ 80	62.91
LT285/75R16 E 126/123Q	205840	19.1	33.03	11.73	7.5-(8.0)-9.5	3750 @ 80	70.21
LT315/75R16 E 127/124Q	205920	20.0	34.80	12.83	8.0-(8.5)-10.5	3860 @ 65	82.37

Tire Size	Stock Number	Tread Depth(1/32 in)	Overall Dia (in)Inflated Dimensions	Overall Width (in)Inflated Dimensions	Approved Rim Width RangeMin-(Measuring)-Max (in)	Maximum Load (lbs.) @ Press. (PSI)	Weight (lbs)
LT255/75R17 C 111/108Q	205890	18.3	32.17	10.28	6.5-(7.0)-8.5	2405 @ 50	58.45
LT265/70R17 E 121/118Q	205860	18.9	31.97	11.02	7.0-(8.0)-9.0	3195 @ 80	60.81
LT285/70R17 C 116/113Q	205450	18.9	32.99	11.50	7.5-(8.5)-9.5	2755 @ 50	66.38
LT285/70R17 E 121/118Q	205930	18.9	33.15	11.81	7.5-(8.5)-9.5	3195 @ 80	66.39
LT285/75R17 E 121/118Q	205950	18.9	34.09	11.57	7.5-(8.0)-9.5	3195 @ 80	66.38
LT295/70R17 E 121/118P	205710	19.4	33.54	11.97	7.5-(8.5)-10.0	3195 @ 80	69.84
LT315/70R17 D 121/118Q	205940	20.0	34.61	13.27	8.0-(9.5)-10.5	3195 @ 50	76.83
35x11.50R17LT C 118Q	374080	21.0	34.76	11.42	7.5-(9.0)-10.0	2910 @ 50	72.60
33x12.50R17LT E 120Q	374070	21.0	32.76	12.52	8.5-(10.0)-11.0	3085 @ 65	68.50
35x12.50R17LT E 121Q	205730	21.0	34.84	13.19	8.0-(10.0)-10.5	3195 @ 65	79.89
37x12.50R17LT D 124Q	205880	21.0	36.85	13.43	8.0-(10.0)-10.5	3525 @ 50	87.30
38x13.50R17LT D 121Q	374200	21.0	37.76	13.58	9.0-(11.0)-11.5	3195 @ 50	90.06
40x13.50R17LT C 121P	205980	21.0	39.76	13.58	9.0-(11.0)-11.5	3195 @ 35	111.77
42x13.50R17LT C 126P	374240	21.0	41.77	13.58	9.0-(11.0)-11.5	3750 @ 35	111.13

Tire Size	Stock Number	Tread Depth(1/32 in)	Overall Dia (in)Inflated Dimensions	Overall Width (in)Inflated Dimensions	Approved Rim Width RangeMin-(Measuring)-Max (in)	Maximum Load (lbs.) @ Press. (PSI)	Weight (lbs)
LT275/70R18 E 125/122Q	205870	19.1	33.62	11.10	7.0-(8.0)-9.0	3640 @ 80	65.67
LT285/65R18 E 125/122Q	205740	18.9	32.83	11.93	8.5-(8.5)-10.0	3640 @ 80	67.27
LT285/75R18 E 129/126Q	206840	18.9	35.08	11.26	7.5-(8.0)-9.5	4080 @ 80	69.84
LT295/70R18 E 129/126Q	205780	19.4	34.57	11.73	7.5-(8.5)-10.0	4080 @ 80	72.83
35x11.50R18LT E 127Q	205530	21.0	34.76	11.42	7.5-(9.0)-10.0	3860 @ 80	72.19
33x12.50R18LT F 122Q	374060	21.0	32.76	12.52	8.5-(10.0)-11.0	3305 @ 80	72.64
35x12.50R18LT E 123Q	205700	21.0	35.04	13.39	8.5-(10.0)-11.0	3415 @ 65	81.01
37x12.50R18LT E 128Q	206610	21.0	36.77	12.52	8.0-(10.0)-10.5	3970 @ 65	89.95

Tire Size	Stock Number	Tread Depth(1/32 in)	Overall Dia (in)Inflated Dimensions	Overall Width (in)Inflated Dimensions	Approved Rim Width RangeMin-(Measuring)-Max (in)	Maximum Load (lbs.) @ Press. (PSI)	Weight (lbs)
LT275/65R20 E 126/123Q	206600	19.1	34.33	10.98	8.0-(8.0)-9.5	3750 @ 80	67.91
LT285/55R20 E 122/119Q	206830	18.9	32.60	11.69	8.5-(9.0)-10.0	3305 @ 80	63.18
LT285/60R20 E 125/122Q	374210	18.9	33.70	11.50	8.5-(8.5)-10.0	3640 @ 80	67.42
LT295/55R20 E 123/120Q	205750	19.4	32.91	12.52	8.5-(9.5)-10.5	3415 @ 80	70.02
LT295/60R20 E 126/123 Q	205910	19.4	34.45	12.13	8.0-(8.5)-10.5	3750 @ 80	76.30
LT295/65R20 E 129/126Q	205790	19.4	35.47	12.13	8.5-(8.5)-10.5	4080 @ 80	75.29
LT305/55R20 E 121/118Q	205760	19.4	33.39	12.60	9.0-(9.5)-11.0	3195 @ 65	72.05
LT325/60R20 E 126/123Q	205570	20.2	35.59	13.03	9.5-(9.5)-11.5	3750 @ 65	83.01
35x11.50R20LT E 124Q	205540	21.0	34.76	11.42	8.0-(9.0)-10.5	3525 @ 80	70.41
37x11.50R20LT E 128Q	205580	21.0	36.77	11.42	7.5-(9.0)-10.0	3970 @ 80	76.98
33x12.50R20LT E 114Q	205590	21.0	32.76	12.52	8.5-(10.0)-11.0	2600 @ 65	70.74
35x12.50R20LT E 121Q	205720	21.0	35.04	13.39	8.5-(10.0)-11.0	3195 @ 65	78.44
35x12.50R20LT F 125Q	374120	21.0	34.76	12.52	8.5-(10.0)-11.0	3640 @ 80	76.83
37x12.50R20LT E 126Q	205800	21.0	36.77	12.99	8.5-(10.0)-11.0	3750 @ 65	85.84
37x13.50R20LT E 127Q	205420	21.0	36.77	13.58	9.5-(11.0)-12.0	3860 @ 65	88.03
38x13.50R20LT E 128Q	374000	21.0	37.76	13.58	9.5-(11.0)-12.0	3970 @ 65	91.23
42x13.50R20LT C 124Q	374160	21.0	41.77	13.58	9.0-(11.0)-11.5	3525 @ 35	108.78
38x15.50R20LT D 125Q	205430	21.0	37.76	15.35	11.0-(12.5)-14.0	3640 @ 50	95.64
40x15.50R20LT D 128Q	206850	21.0	39.76	15.35	11.0-(12.5)-14.0	3970 @ 50	106.33

Tire Size	Stock Number	Tread Depth(1/32 in)	Overall Dia (in)Inflated Dimensions	Overall Width (in)Inflated Dimensions	Approved Rim Width RangeMin-(Measuring)-Max (in)	Maximum Load (lbs.) @ Press. (PSI)	Weight (lbs)
LT285/55R22 E 124/121Q	205900	18.9	34.53	12.05	8.0-(9.0)-10.0	3525 @ 80	69.58
LT325/50R22 E 122Q	205830	20.0	34.92	13.19	9.5-(10.0)-12.0	3305 @ 65	75.27
LT355/40R22 F 122Q	374020	18.9	33.43	14.41	12.0-(12.5)-14.0	3305 @ 80	79.70
LT375/45R22 F 128Q	374010	19.5	35.55	14.96	12.0-(12.5)-14.0	3970 @ 80	89.36
33x12.50R22LT E 109Q	205600	18.9	32.76	12.52	8.5-(10.0)-11.0	2270 @ 65	64.37
35x12.50R22LT E 117Q	205610	21.0	34.76	12.52	8.5-(10.0)-11.0	2835 @ 65	72.31
37x13.50R22LT E 123Q	205810	21.0	37.05	13.78	9.5-(11.0)-12.0	3415 @ 65	83.57
38x13.50R22LT E 126Q	205550	21.0	37.76	13.58	9.5-(11.0)-12.0	3750 @ 65	89.11
40x15.50R22LT E 128Q	205560	21.0	39.76	15.35	11.0-(12.5)-14.0	3970 @ 65	105.72
42x15.50R22LT C 124Q	374220	21.0	41.77	15.55	11.0-(12.5)-14.0	3525 @ 35	115.59

Tire Size	Stock Number	Tread Depth(1/32 in)	Overall Dia (in)Inflated Dimensions	Overall Width (in)Inflated Dimensions	Approved Rim Width RangeMin-(Measuring)-Max (in)	Maximum Load (lbs.) @ Press. (PSI)	Weight (lbs)
LT355/40R24 F 123Q	374140	18.9	35.43	14.21	12.0-(12.5)-14.0	3415 @ 80	84.04
LT375/40R24 F126Q	374040	19.5	36.06	14.96	12.5-(13.5)-15.0	3750 @ 80	89.97
LT375/45R24 E 126Q	374230	19.5	37.56	14.76	12.0-(12.5)-14.0	3750 @ 65	92.15
37x13.50R24LT F 124Q	374150	21.0	36.77	13.58	9.5-(11.0)-12.0	3525 @ 80	86.99
38x13.50R24LT E 123Q	205820	21.0	37.72	13.82	9.5-(11.0)-12.0	3415 @ 65	90.89
40x15.50R24LT E 128P	374050	21.0	39.76	15.35	11.0-(12.5)-14.0	3970 @ 65	104.45
42x15.50R24LT C 122Q	374170	21.0	41.77	15.55	11.0-(12.5)-14.0	3305 @ 35	110.80

Tire Size	Stock Number	Tread Depth(1/32 in)	Overall Dia (in)Inflated Dimensions	Overall Width (in)Inflated Dimensions	Approved Rim Width RangeMin-(Measuring)-Max (in)	Maximum Load (lbs.) @ Press. (PSI)	Weight (lbs)
40x15.50R26LT E 126Q	374100	21.0	39.76	15.55	11.0-(12.5)-14.0	3750 @ 65	104.32
42x15.50R26LT D 126Q	374130	21.0	41.77	15.55	11.0-(12.5)-14.0	3750 @ 50	109.79

Trail Grappler

Mud Terrain Tire

Off-road performance perfected

Overall ratings

PERFORMANCE RATINGS

Find nitto tires near you

What our customers are saying

Trail Grappler®, from all angles

Subscribe to the Nitto Tire Newsletter

Related Tires

Trail Grappler^®, from all angles
