Sizes & Specs
WHEEL DIAMETER
| Tire Size |
Stock Number |
Tread Depth(1/32 in) |
Overall Dia (in)Inflated Dimensions | Overall Width (in)Inflated Dimensions | Approved Rim Width RangeMin-(Measuring)-Max (in) |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| 215/65R16 102H XL | 261160 | 12.5 | 27.01 | 8.70 | 6.0-(6.5)-7.5 | 1874 @ 50 | 29.76 |
| 215/70R16 104H XL | 212430 | 12.5 | 27.87 | 8.70 | 5.5-(6.5)-7.0 | 1984 @ 50 | 30.20 |
| 225/75R16 108T XL | 261170 | 12.6 | 29.29 | 8.78 | 6.0-(6.0)-7.5 | 2205 @ 50 | 33.73 |
| Tire Size |
Stock Number |
Tread Depth(1/32 in) |
Overall Dia (in)Inflated Dimensions | Overall Width (in)Inflated Dimensions | Approved Rim Width RangeMin-(Measuring)-Max (in) |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| 215/65R17 103T XL | 212020 | 12.5 | 28.03 | 8.70 | 6.0-(6.5)-7.0 | 1929 @ 50 | 28.66 |
| 225/55R17 101H XL | 212060 | 12.6 | 26.77 | 9.17 | 6.0-(7.0)-8.0 | 1819 @ 50 | 28.51 |
| 225/60R17 103H XL | 212090 | 12.6 | 27.64 | 8.98 | 6.0-(6.5)-8.0 | 1929 @ 50 | 29.23 |
| 225/65R17 106H XL | 212100 | 12.6 | 28.50 | 8.98 | 6.0-(6.5)-8.0 | 2094 @ 50 | 29.98 |
| 235/55R17 103H XL | 212130 | 12.7 | 27.17 | 9.65 | 6.5-(7.5)-8.5 | 1929 @ 50 | 29.85 |
| 235/65R17 108H XL | 212070 | 12.7 | 29.06 | 9.45 | 6.5-(7.0)-8.5 | 2205 @ 50 | 33.58 |
| 245/65R17 111H XL | 211960 | 12.9 | 29.53 | 9.76 | 7.0-(7.0)-8.5 | 2403 @ 50 | 34.26 |
| 245/70R17 114T XL | 211980 | 12.9 | 30.55 | 9.76 | 6.5-(7.0)-8.0 | 2601 @ 50 | 36.16 |
| 265/65R17 116T XL | 212260 | 13.1 | 30.55 | 10.71 | 7.5-(8.0)-9.5 | 2756 @ 50 | 38.07 |
| 265/70R17 115T | 212250 | 13.1 | 31.65 | 10.71 | 7.0-(8.0)-9.0 | 2679 @ 44 | 41.91 |
| 285/70R17 116T | 212330 | 13.4 | 32.76 | 11.50 | 7.5-(8.5)-9.5 | 2756 @ 44 | 46.05 |
| Tire Size |
Stock Number |
Tread Depth(1/32 in) |
Overall Dia (in)Inflated Dimensions | Overall Width (in)Inflated Dimensions | Approved Rim Width RangeMin-(Measuring)-Max (in) |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| 225/55R18 102H XL | 212180 | 12.6 | 27.76 | 9.17 | 6.0-(7.0)-8.0 | 1874 @ 50 | 29.43 |
| 225/60R18 104H XL | 212150 | 12.6 | 28.62 | 8.98 | 6.0-(6.5)-8.0 | 1984 @ 50 | 30.12 |
| 235/55R18 104H XL | 212160 | 12.7 | 28.15 | 9.65 | 6.5-(7.5)-8.5 | 1984 @ 50 | 31.04 |
| 235/60R18 107V XL | 212080 | 12.7 | 29.09 | 9.45 | 6.5-(7.0)-8.5 | 2149 @ 50 | 32.72 |
| 235/65R18 110H XL | 212120 | 12.7 | 30.04 | 9.45 | 6.5-(7.0)-8.5 | 2337 @ 50 | 34.72 |
| 245/60R18 109H XL | 212110 | 12.9 | 29.57 | 9.76 | 7.0-(7.0)-8.5 | 2271 @ 50 | 35.03 |
| 255/55R18 109H XL | 212270 | 13.0 | 29.02 | 10.43 | 7.0-(8.0)-9.0 | 2271 @ 50 | 35.85 |
| 255/60R18 112H XL | 212220 | 13.0 | 30.04 | 10.24 | 7.0-(7.5)-9.0 | 2469 @ 50 | 38.03 |
| 255/65R18 115T XL | 212140 | 13.0 | 31.06 | 10.24 | 7.0-(7.5)-9.0 | 2679 @ 50 | 37.17 |
| 265/60R18 114H XL | 211990 | 13.1 | 30.51 | 10.71 | 7.5-(8.0)-9.5 | 2601 @ 50 | 38.78 |
| Tire Size |
Stock Number |
Tread Depth(1/32 in) |
Overall Dia (in)Inflated Dimensions | Overall Width (in)Inflated Dimensions | Approved Rim Width RangeMin-(Measuring)-Max (in) |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| 225/55R19 103V XL | 212450 | 12.6 | 28.78 | 9.17 | 6.0-(7.0)-8.0 | 1929 @ 50 | 31.77 |
| 235/55R19 105V XL | 212460 | 12.7 | 29.17 | 9.65 | 6.5-(7.5)-8.5 | 2039 @ 50 | 33.82 |
| 245/55R19 107V XL | 212440 | 12.9 | 29.65 | 9.96 | 7.0-(7.5)-8.5 | 2149 @ 50 | 36.88 |
| Tire Size |
Stock Number |
Tread Depth(1/32 in) |
Overall Dia (in)Inflated Dimensions | Overall Width (in)Inflated Dimensions | Approved Rim Width RangeMin-(Measuring)-Max (in) |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| 235/55R20 105H XL | 212190 | 12.7 | 30.16 | 9.65 | 6.5-(7.5)-8.5 | 2039 @ 50 | 34.02 |
| 245/45R20 103H XL | 212350 | 12.9 | 28.66 | 9.57 | 7.5-(8.0)-9.0 | 1929 @ 50 | 31.92 |
| 245/50R20 105H XL | 212030 | 12.9 | 29.69 | 9.96 | 7.0-(7.5)-8.5 | 2039 @ 50 | 34.68 |
| 245/60R20 111H XL | 212210 | 12.9 | 31.57 | 9.76 | 7.0-(7.0)-8.5 | 2403 @ 50 | 37.99 |
| 255/40R20 101H XL | 212290 | 13.0 | 28.03 | 10.24 | 8.5-(9.0)-10.0 | 1819 @ 50 | 32.76 |
| 255/45R20 105V XL | 212040 | 13.0 | 29.06 | 10.04 | 8.0-(8.5)-9.5 | 2039 @ 50 | 34.02 |
| 255/50R20 109H XL | 212200 | 13.0 | 30.08 | 10.43 | 7.0-(8.0)-9.0 | 2271 @ 50 | 36.64 |
| 255/55R20 110H XL | 212170 | 13.0 | 31.02 | 10.43 | 7.0-(8.0)-9.0 | 2337 @ 50 | 38.98 |
| 265/45R20 108H XL | 211970 | 13.1 | 29.37 | 10.47 | 8.5-(9.0)-10.0 | 2205 @ 50 | 34.81 |
| 265/50R20 111V XL | 212050 | 13.1 | 30.47 | 10.91 | 7.5-(8.5)-9.5 | 2403 @ 50 | 38.01 |
| 275/45R20 110H XL | 212300 | 13.2 | 29.76 | 10.75 | 8.5-(9.0)-10.5 | 2337 @ 50 | 37.85 |
| 275/55R20 117H XL | 212310 | 13.2 | 31.89 | 11.18 | 7.5-(8.5)-9.5 | 2833 @ 50 | 42.57 |
| 275/60R20 116H XL | 212320 | 13.2 | 32.99 | 10.98 | 7.5-(8.0)-9.5 | 2756 @ 50 | 44.69 |
| 285/50R20 116H XL | 212340 | 13.4 | 31.26 | 11.69 | 8.0-(9.0)-10.0 | 2756 @ 50 | 42.00 |
| Tire Size |
Stock Number |
Tread Depth(1/32 in) |
Overall Dia (in)Inflated Dimensions | Overall Width (in)Inflated Dimensions | Approved Rim Width RangeMin-(Measuring)-Max (in) |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| 285/45R22 114H XL | 212280 | 13.4 | 32.09 | 11.22 | 9.0-(9.5)-10.5 | 2601 @ 50 | 42.35 |
Technical specs are subject to change without notice. *Indicates Extra Load (XL)
Sizes and Specs
Factory Tire Size:
Indicates Fits Your Vehicle Indicates Fits Your Rear Tire Size
-
215/65R16 102H XL
- Stock Number: 261160
- Tread Depth (1/32 in): 12.5
- Inflated Dimensions - Overall Dia (in): 27.01
- Inflated Dimensions - Overall Width (in): 8.70
-
Approved Rim Width Range (in): 6.0-(6.5)-7.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1874 @ 50
- Weight: 29.76
-
215/70R16 104H XL
- Stock Number: 212430
- Tread Depth (1/32 in): 12.5
- Inflated Dimensions - Overall Dia (in): 27.87
- Inflated Dimensions - Overall Width (in): 8.70
-
Approved Rim Width Range (in): 5.5-(6.5)-7.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1984 @ 50
- Weight: 30.20
-
225/75R16 108T XL
- Stock Number: 261170
- Tread Depth (1/32 in): 12.6
- Inflated Dimensions - Overall Dia (in): 29.29
- Inflated Dimensions - Overall Width (in): 8.78
-
Approved Rim Width Range (in): 6.0-(6.0)-7.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2205 @ 50
- Weight: 33.73
-
215/65R17 103T XL
- Stock Number: 212020
- Tread Depth (1/32 in): 12.5
- Inflated Dimensions - Overall Dia (in): 28.03
- Inflated Dimensions - Overall Width (in): 8.70
-
Approved Rim Width Range (in): 6.0-(6.5)-7.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1929 @ 50
- Weight: 28.66
-
225/55R17 101H XL
- Stock Number: 212060
- Tread Depth (1/32 in): 12.6
- Inflated Dimensions - Overall Dia (in): 26.77
- Inflated Dimensions - Overall Width (in): 9.17
-
Approved Rim Width Range (in): 6.0-(7.0)-8.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1819 @ 50
- Weight: 28.51
-
225/60R17 103H XL
- Stock Number: 212090
- Tread Depth (1/32 in): 12.6
- Inflated Dimensions - Overall Dia (in): 27.64
- Inflated Dimensions - Overall Width (in): 8.98
-
Approved Rim Width Range (in): 6.0-(6.5)-8.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1929 @ 50
- Weight: 29.23
-
225/65R17 106H XL
- Stock Number: 212100
- Tread Depth (1/32 in): 12.6
- Inflated Dimensions - Overall Dia (in): 28.50
- Inflated Dimensions - Overall Width (in): 8.98
-
Approved Rim Width Range (in): 6.0-(6.5)-8.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2094 @ 50
- Weight: 29.98
-
235/55R17 103H XL
- Stock Number: 212130
- Tread Depth (1/32 in): 12.7
- Inflated Dimensions - Overall Dia (in): 27.17
- Inflated Dimensions - Overall Width (in): 9.65
-
Approved Rim Width Range (in): 6.5-(7.5)-8.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1929 @ 50
- Weight: 29.85
-
235/65R17 108H XL
- Stock Number: 212070
- Tread Depth (1/32 in): 12.7
- Inflated Dimensions - Overall Dia (in): 29.06
- Inflated Dimensions - Overall Width (in): 9.45
-
Approved Rim Width Range (in): 6.5-(7.0)-8.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2205 @ 50
- Weight: 33.58
-
245/65R17 111H XL
- Stock Number: 211960
- Tread Depth (1/32 in): 12.9
- Inflated Dimensions - Overall Dia (in): 29.53
- Inflated Dimensions - Overall Width (in): 9.76
-
Approved Rim Width Range (in): 7.0-(7.0)-8.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2403 @ 50
- Weight: 34.26
-
245/70R17 114T XL
- Stock Number: 211980
- Tread Depth (1/32 in): 12.9
- Inflated Dimensions - Overall Dia (in): 30.55
- Inflated Dimensions - Overall Width (in): 9.76
-
Approved Rim Width Range (in): 6.5-(7.0)-8.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2601 @ 50
- Weight: 36.16
-
265/65R17 116T XL
- Stock Number: 212260
- Tread Depth (1/32 in): 13.1
- Inflated Dimensions - Overall Dia (in): 30.55
- Inflated Dimensions - Overall Width (in): 10.71
-
Approved Rim Width Range (in): 7.5-(8.0)-9.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2756 @ 50
- Weight: 38.07
-
265/70R17 115T
- Stock Number: 212250
- Tread Depth (1/32 in): 13.1
- Inflated Dimensions - Overall Dia (in): 31.65
- Inflated Dimensions - Overall Width (in): 10.71
-
Approved Rim Width Range (in): 7.0-(8.0)-9.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2679 @ 44
- Weight: 41.91
-
285/70R17 116T
- Stock Number: 212330
- Tread Depth (1/32 in): 13.4
- Inflated Dimensions - Overall Dia (in): 32.76
- Inflated Dimensions - Overall Width (in): 11.50
-
Approved Rim Width Range (in): 7.5-(8.5)-9.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2756 @ 44
- Weight: 46.05
-
225/55R18 102H XL
- Stock Number: 212180
- Tread Depth (1/32 in): 12.6
- Inflated Dimensions - Overall Dia (in): 27.76
- Inflated Dimensions - Overall Width (in): 9.17
-
Approved Rim Width Range (in): 6.0-(7.0)-8.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1874 @ 50
- Weight: 29.43
-
225/60R18 104H XL
- Stock Number: 212150
- Tread Depth (1/32 in): 12.6
- Inflated Dimensions - Overall Dia (in): 28.62
- Inflated Dimensions - Overall Width (in): 8.98
-
Approved Rim Width Range (in): 6.0-(6.5)-8.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1984 @ 50
- Weight: 30.12
-
235/55R18 104H XL
- Stock Number: 212160
- Tread Depth (1/32 in): 12.7
- Inflated Dimensions - Overall Dia (in): 28.15
- Inflated Dimensions - Overall Width (in): 9.65
-
Approved Rim Width Range (in): 6.5-(7.5)-8.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1984 @ 50
- Weight: 31.04
-
235/60R18 107V XL
- Stock Number: 212080
- Tread Depth (1/32 in): 12.7
- Inflated Dimensions - Overall Dia (in): 29.09
- Inflated Dimensions - Overall Width (in): 9.45
-
Approved Rim Width Range (in): 6.5-(7.0)-8.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2149 @ 50
- Weight: 32.72
-
235/65R18 110H XL
- Stock Number: 212120
- Tread Depth (1/32 in): 12.7
- Inflated Dimensions - Overall Dia (in): 30.04
- Inflated Dimensions - Overall Width (in): 9.45
-
Approved Rim Width Range (in): 6.5-(7.0)-8.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2337 @ 50
- Weight: 34.72
-
245/60R18 109H XL
- Stock Number: 212110
- Tread Depth (1/32 in): 12.9
- Inflated Dimensions - Overall Dia (in): 29.57
- Inflated Dimensions - Overall Width (in): 9.76
-
Approved Rim Width Range (in): 7.0-(7.0)-8.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2271 @ 50
- Weight: 35.03
-
255/55R18 109H XL
- Stock Number: 212270
- Tread Depth (1/32 in): 13.0
- Inflated Dimensions - Overall Dia (in): 29.02
- Inflated Dimensions - Overall Width (in): 10.43
-
Approved Rim Width Range (in): 7.0-(8.0)-9.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2271 @ 50
- Weight: 35.85
-
255/60R18 112H XL
- Stock Number: 212220
- Tread Depth (1/32 in): 13.0
- Inflated Dimensions - Overall Dia (in): 30.04
- Inflated Dimensions - Overall Width (in): 10.24
-
Approved Rim Width Range (in): 7.0-(7.5)-9.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2469 @ 50
- Weight: 38.03
-
255/65R18 115T XL
- Stock Number: 212140
- Tread Depth (1/32 in): 13.0
- Inflated Dimensions - Overall Dia (in): 31.06
- Inflated Dimensions - Overall Width (in): 10.24
-
Approved Rim Width Range (in): 7.0-(7.5)-9.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2679 @ 50
- Weight: 37.17
-
265/60R18 114H XL
- Stock Number: 211990
- Tread Depth (1/32 in): 13.1
- Inflated Dimensions - Overall Dia (in): 30.51
- Inflated Dimensions - Overall Width (in): 10.71
-
Approved Rim Width Range (in): 7.5-(8.0)-9.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2601 @ 50
- Weight: 38.78
-
225/55R19 103V XL
- Stock Number: 212450
- Tread Depth (1/32 in): 12.6
- Inflated Dimensions - Overall Dia (in): 28.78
- Inflated Dimensions - Overall Width (in): 9.17
-
Approved Rim Width Range (in): 6.0-(7.0)-8.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1929 @ 50
- Weight: 31.77
-
235/55R19 105V XL
- Stock Number: 212460
- Tread Depth (1/32 in): 12.7
- Inflated Dimensions - Overall Dia (in): 29.17
- Inflated Dimensions - Overall Width (in): 9.65
-
Approved Rim Width Range (in): 6.5-(7.5)-8.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2039 @ 50
- Weight: 33.82
-
245/55R19 107V XL
- Stock Number: 212440
- Tread Depth (1/32 in): 12.9
- Inflated Dimensions - Overall Dia (in): 29.65
- Inflated Dimensions - Overall Width (in): 9.96
-
Approved Rim Width Range (in): 7.0-(7.5)-8.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2149 @ 50
- Weight: 36.88
-
235/55R20 105H XL
- Stock Number: 212190
- Tread Depth (1/32 in): 12.7
- Inflated Dimensions - Overall Dia (in): 30.16
- Inflated Dimensions - Overall Width (in): 9.65
-
Approved Rim Width Range (in): 6.5-(7.5)-8.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2039 @ 50
- Weight: 34.02
-
245/45R20 103H XL
- Stock Number: 212350
- Tread Depth (1/32 in): 12.9
- Inflated Dimensions - Overall Dia (in): 28.66
- Inflated Dimensions - Overall Width (in): 9.57
-
Approved Rim Width Range (in): 7.5-(8.0)-9.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1929 @ 50
- Weight: 31.92
-
245/50R20 105H XL
- Stock Number: 212030
- Tread Depth (1/32 in): 12.9
- Inflated Dimensions - Overall Dia (in): 29.69
- Inflated Dimensions - Overall Width (in): 9.96
-
Approved Rim Width Range (in): 7.0-(7.5)-8.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2039 @ 50
- Weight: 34.68
-
245/60R20 111H XL
- Stock Number: 212210
- Tread Depth (1/32 in): 12.9
- Inflated Dimensions - Overall Dia (in): 31.57
- Inflated Dimensions - Overall Width (in): 9.76
-
Approved Rim Width Range (in): 7.0-(7.0)-8.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2403 @ 50
- Weight: 37.99
-
255/40R20 101H XL
- Stock Number: 212290
- Tread Depth (1/32 in): 13.0
- Inflated Dimensions - Overall Dia (in): 28.03
- Inflated Dimensions - Overall Width (in): 10.24
-
Approved Rim Width Range (in): 8.5-(9.0)-10.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1819 @ 50
- Weight: 32.76
-
255/45R20 105V XL
- Stock Number: 212040
- Tread Depth (1/32 in): 13.0
- Inflated Dimensions - Overall Dia (in): 29.06
- Inflated Dimensions - Overall Width (in): 10.04
-
Approved Rim Width Range (in): 8.0-(8.5)-9.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2039 @ 50
- Weight: 34.02
-
255/50R20 109H XL
- Stock Number: 212200
- Tread Depth (1/32 in): 13.0
- Inflated Dimensions - Overall Dia (in): 30.08
- Inflated Dimensions - Overall Width (in): 10.43
-
Approved Rim Width Range (in): 7.0-(8.0)-9.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2271 @ 50
- Weight: 36.64
-
255/55R20 110H XL
- Stock Number: 212170
- Tread Depth (1/32 in): 13.0
- Inflated Dimensions - Overall Dia (in): 31.02
- Inflated Dimensions - Overall Width (in): 10.43
-
Approved Rim Width Range (in): 7.0-(8.0)-9.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2337 @ 50
- Weight: 38.98
-
265/45R20 108H XL
- Stock Number: 211970
- Tread Depth (1/32 in): 13.1
- Inflated Dimensions - Overall Dia (in): 29.37
- Inflated Dimensions - Overall Width (in): 10.47
-
Approved Rim Width Range (in): 8.5-(9.0)-10.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2205 @ 50
- Weight: 34.81
-
265/50R20 111V XL
- Stock Number: 212050
- Tread Depth (1/32 in): 13.1
- Inflated Dimensions - Overall Dia (in): 30.47
- Inflated Dimensions - Overall Width (in): 10.91
-
Approved Rim Width Range (in): 7.5-(8.5)-9.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2403 @ 50
- Weight: 38.01
-
275/45R20 110H XL
- Stock Number: 212300
- Tread Depth (1/32 in): 13.2
- Inflated Dimensions - Overall Dia (in): 29.76
- Inflated Dimensions - Overall Width (in): 10.75
-
Approved Rim Width Range (in): 8.5-(9.0)-10.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2337 @ 50
- Weight: 37.85
-
275/55R20 117H XL
- Stock Number: 212310
- Tread Depth (1/32 in): 13.2
- Inflated Dimensions - Overall Dia (in): 31.89
- Inflated Dimensions - Overall Width (in): 11.18
-
Approved Rim Width Range (in): 7.5-(8.5)-9.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2833 @ 50
- Weight: 42.57
-
275/60R20 116H XL
- Stock Number: 212320
- Tread Depth (1/32 in): 13.2
- Inflated Dimensions - Overall Dia (in): 32.99
- Inflated Dimensions - Overall Width (in): 10.98
-
Approved Rim Width Range (in): 7.5-(8.0)-9.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2756 @ 50
- Weight: 44.69
-
285/50R20 116H XL
- Stock Number: 212340
- Tread Depth (1/32 in): 13.4
- Inflated Dimensions - Overall Dia (in): 31.26
- Inflated Dimensions - Overall Width (in): 11.69
-
Approved Rim Width Range (in): 8.0-(9.0)-10.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2756 @ 50
- Weight: 42.00
-
285/45R22 114H XL
- Stock Number: 212280
- Tread Depth (1/32 in): 13.4
- Inflated Dimensions - Overall Dia (in): 32.09
- Inflated Dimensions - Overall Width (in): 11.22
-
Approved Rim Width Range (in): 9.0-(9.5)-10.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2601 @ 50
- Weight: 42.35
Technical specs are subject to change without notice. *Indicates Extra Load (XL)

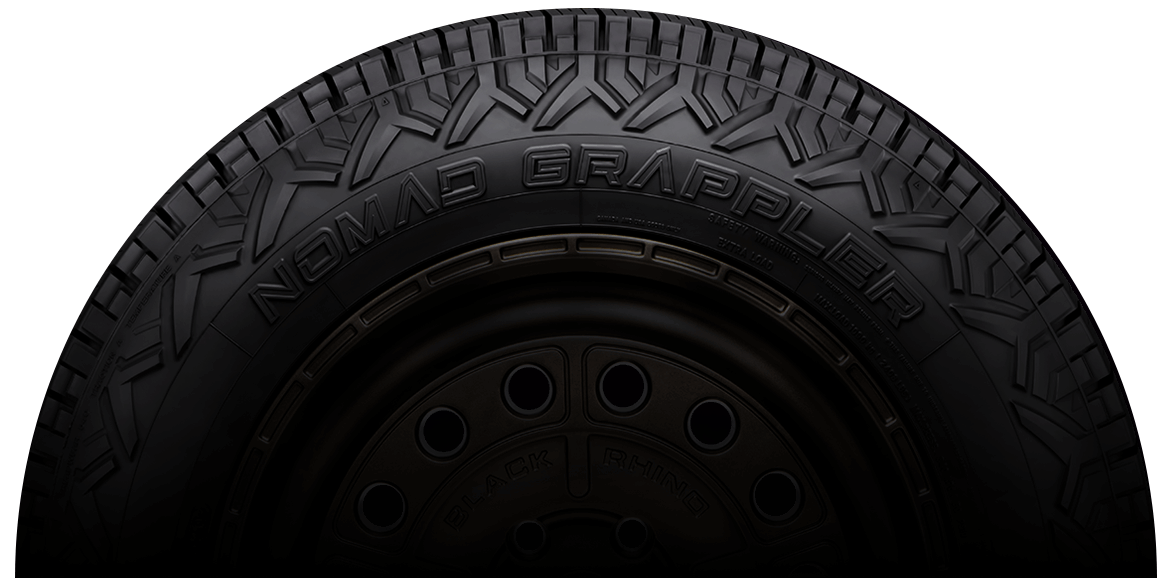

Nomad Grappler
Crossover-Terrain Tire
The Nomad Grappler® is a versatile crossover-terrain tire for CUV's for those looking to get the most out of their vehicle to explore new destinations.
UTQG TREADWEAR
T Speed Rating: 540
T Speed Rating: 540
TRACTION:
A
TEMPERATURE:
B
UTQG TREADWEAR
H, V Speed Rating: 540
H, V Speed Rating: 540
TRACTION:
A
TEMPERATURE:
A
Find a Store
Follow Your Passion
Drawing from our experience of proven Grappler light-truck tire's off-road performance, the Nomad Grappler® is designed to expand your CUV's and SUV's performance capabilities to keep up with your active lifestyle.
Overall ratings
PERFORMANCE RATINGS
-
Off-Road Performance is a 3 out of 53 -
Dry Performance is a 4 out of 54 -
Wet Performance is a 4.5 out of 54.5 -
Quietness is a 4.5 out of 54.5 -
Ride Comfort is a 4.5 out of 54.5 -
Winter Traction is a 5 out of 55
UTQG TIRE RATINGS
-
H and V Speed-Rated Treadwear:540
-
T Speed-Rated Treadwear:540
-
TRACTION:A
-
TEMPERATURE:A / B
Please note: The following element is a 3D 360-degree interactive model of this tire, designed to showcase the distinct features of the tread, sidewall or other visual characteristics, which have been previously described on this page. For a detailed description of the tire's characteristics, please refer to the content provided elsewhere on this page. To interact with a keyboard, assistive technologies such as screen readers may need to be temporarily disabled. Use your keyboard or mouse to drag and rotate the tire left or right.
Find nitto tires near you
Reviews
What our customers are saying
Lifestyle

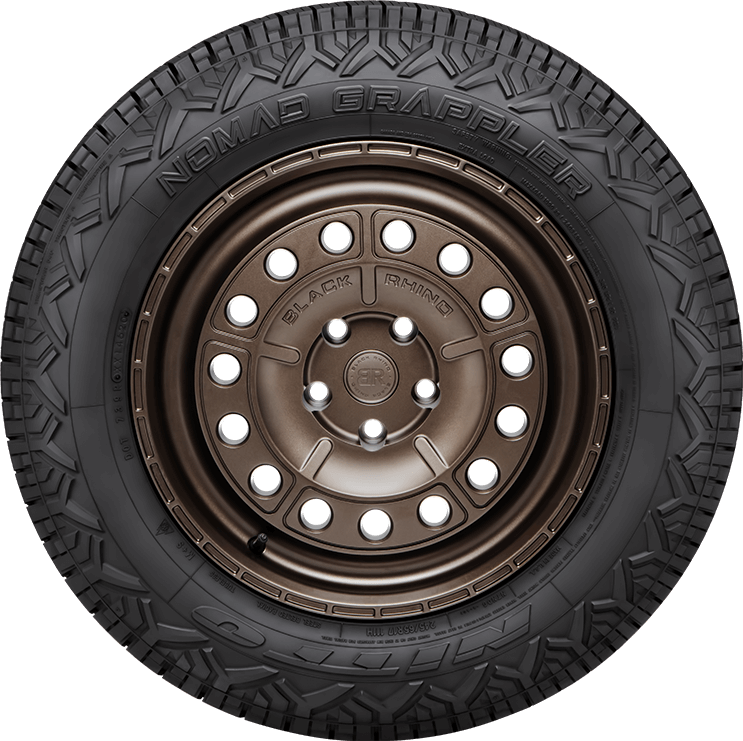

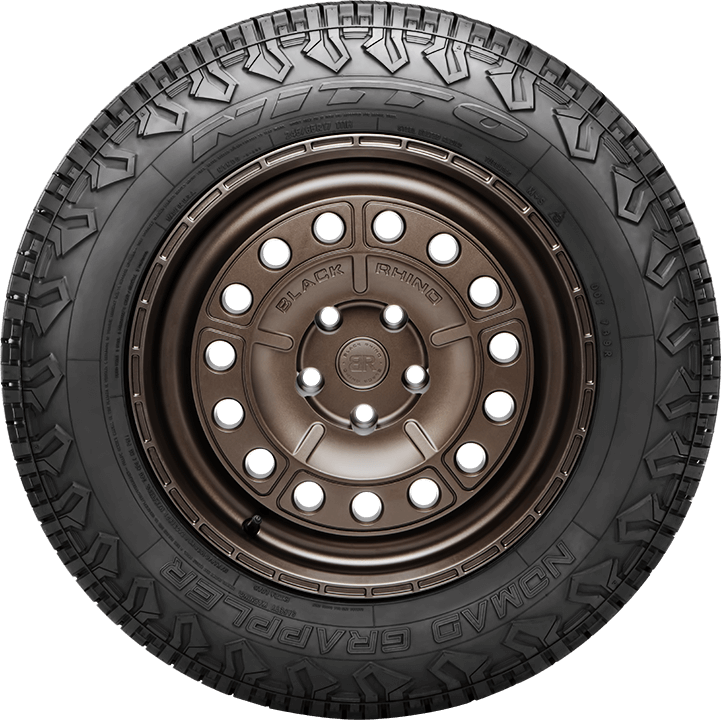

Nomad Grappler®, from all angles
Thank you for signing up for the Nitto eNewsletter.
There was an error in your submission
Sorry there was an error with your submission, please try again later or contact customer care at (888) 529-8200.
